NVIDIA has finally released its desktop version of the RTX 3050, an entry-level RTX 30 series card that is aimed for 1080p gaming and of course, to bring ray tracing and DLSS to users at a more affordable price range. We managed to get our hands on the RTX 3050 Twin Edge OC from ZOTAC this time for a quick run, just so we can see what kind of performance we can expect from the RTX 3050.

Specifications



GPU GeForce RTX 3050
CUDA Cores 2560
Tensor Cores 80
RT Cores 20
GPU Clock Base: 1552 MHz, Boost: 1777 MHz
Memory Data Rate 14 Gbps
Total Video Memory Size 8GB GDDR6
Memory Interface 128-bit
Memory Bandwidth 224.0 GB/s
TDP 130W
Recommended PSU 550W
Power Connectors 1 x 8-Pin

Unboxing

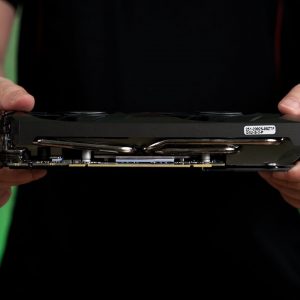

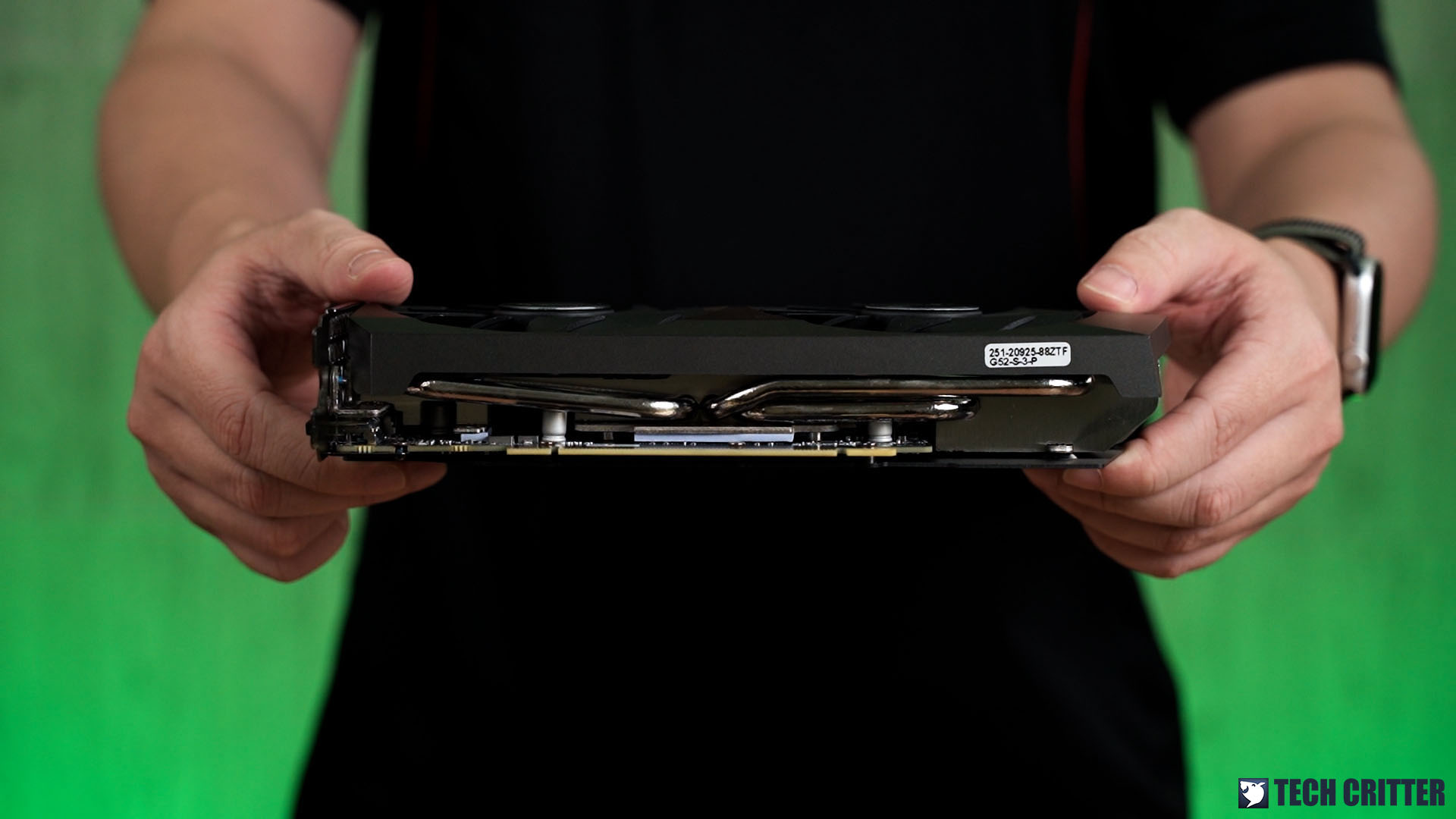

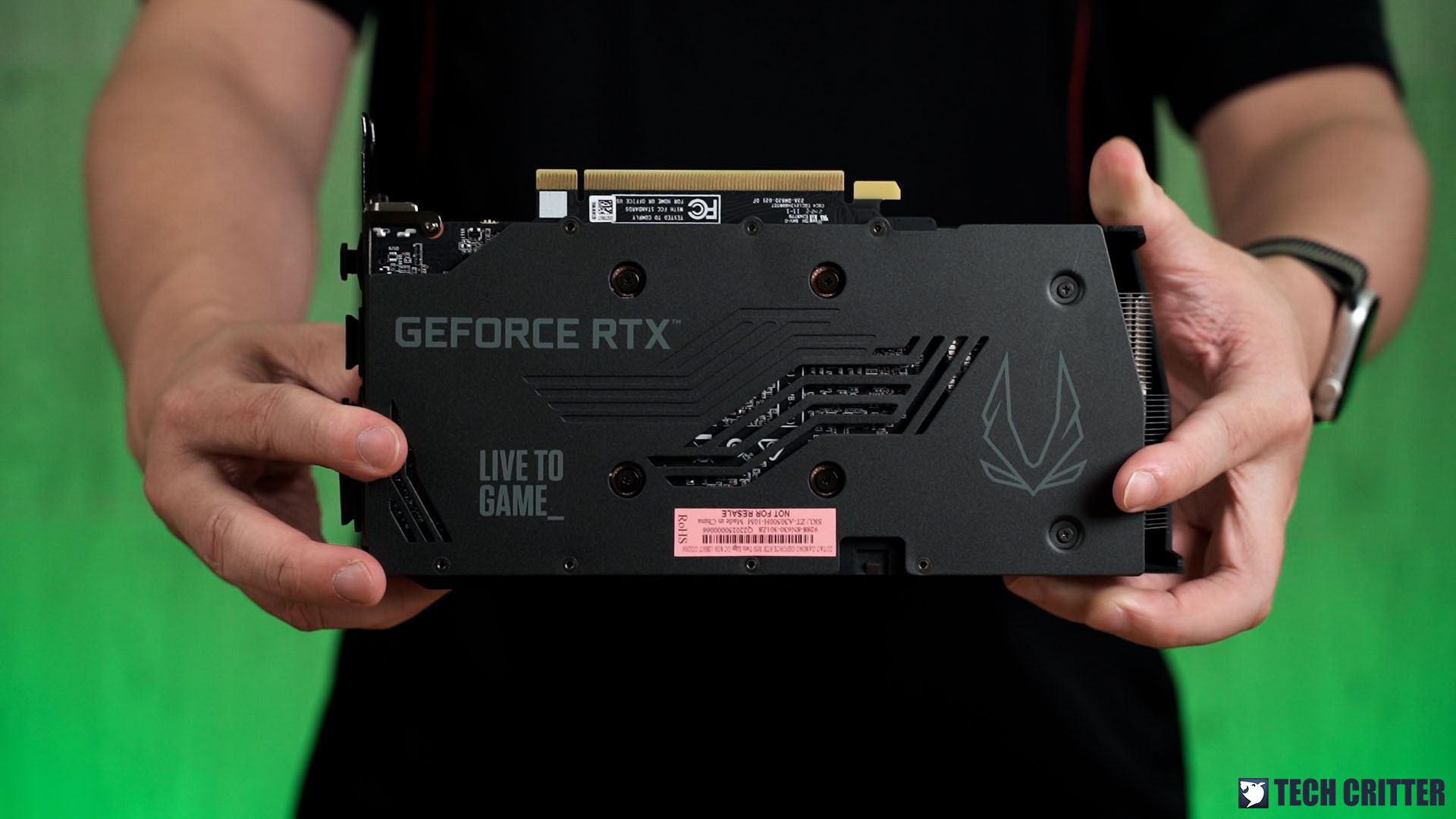

Design-wise, the RTX 3050 Twin Edge OC is a very compact dual fan card that can easily fit into a lot of cases, which is especially good for ITX builds. The cooler features two cooling fans and a heatsink with 3 heat pipes that span through an array of aluminum fins, so it’s not the kind of basic heatsink block you’ll find on some of the OEM design cards.

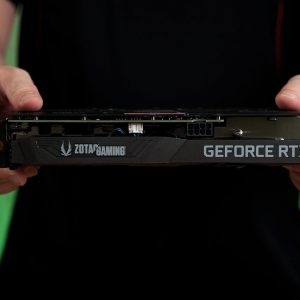

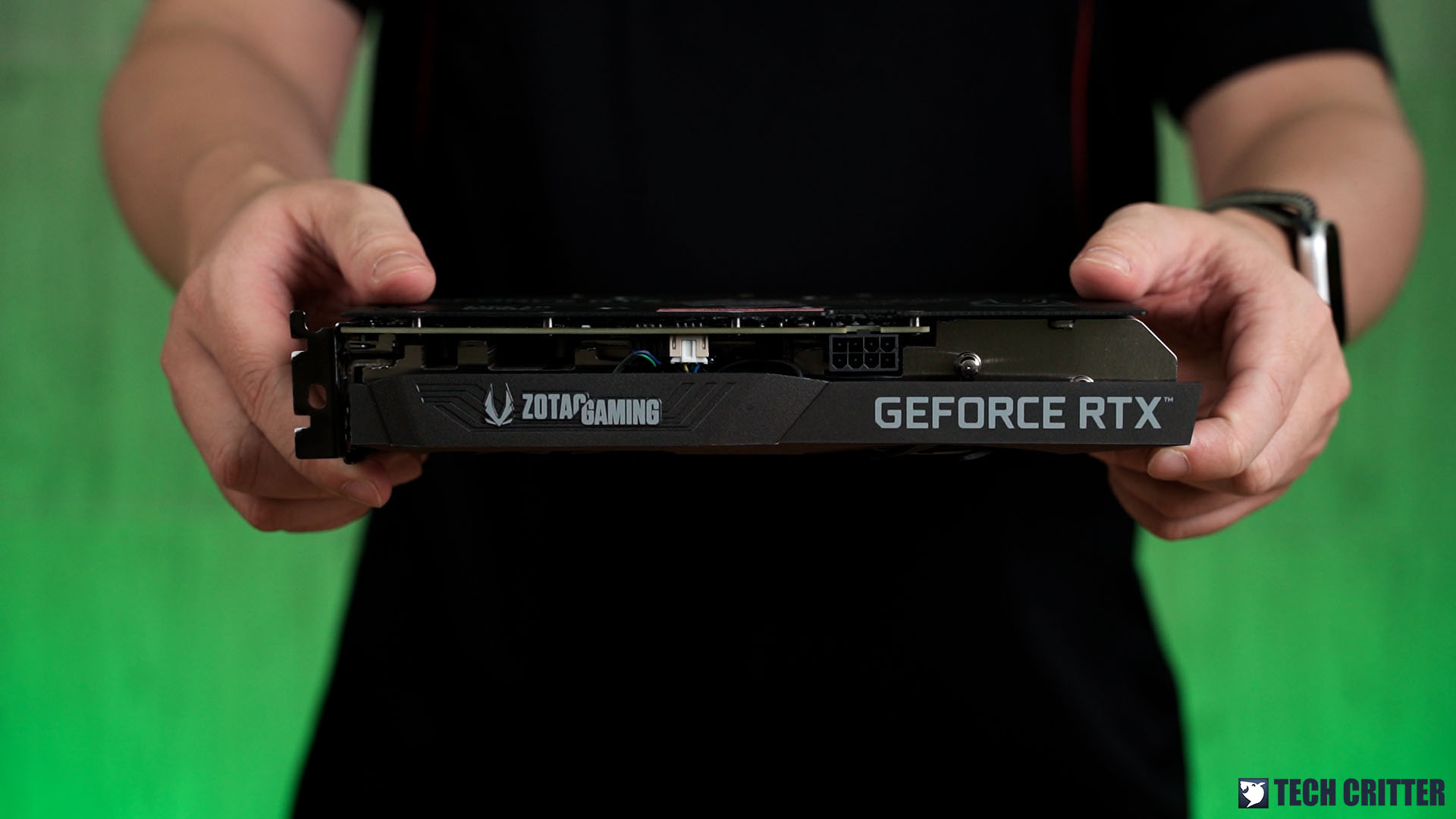

ZOTAC RTX 3050 TwinEdge OC 4

The RTX 3050 is powered using an 8-pin PCIe power connector and you’ll need a minimum 550W power supply. I was actually hoping to see the RTX 3050 not have to rely on an external power source but that’s not possible due to the limitation on the PCIe x16 slot which can supply up to 75W at most.

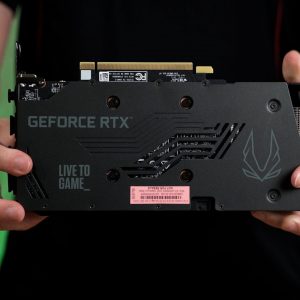

ZOTAC RTX 3050 TwinEdge OC 7

For the display output, you’ll find 3 x DP and 1 x HDMI, which is pretty standard for graphics cards nowadays.

Test System

We’ve compared it against the GTX 1660 SUPER and RTX 2060 with a few selected AAA titles just so we can get a better idea of what kind of performance the RTX 3050 is capable of. You can refer to the list here to see the specifications of the test bench we’re using for this test:

CPU Intel Core i9-12900K
Motherboard ASUS ROG Maximus Z690 APEX
Memory Teamgroup T-Force Delta RGB DDR5
Graphics Card NVIDIA GeForce RTX 3080
Power Supply Cooler Master V1200 Platinum
Primary Storage PNY XLR8 CS3040
Secondary Storage WD Black 6TB
CPU Cooler ASUS ROG Ryujin II 360
Chassis Cooler Master MasterFrame 700
Operating System Windows 11 64bit

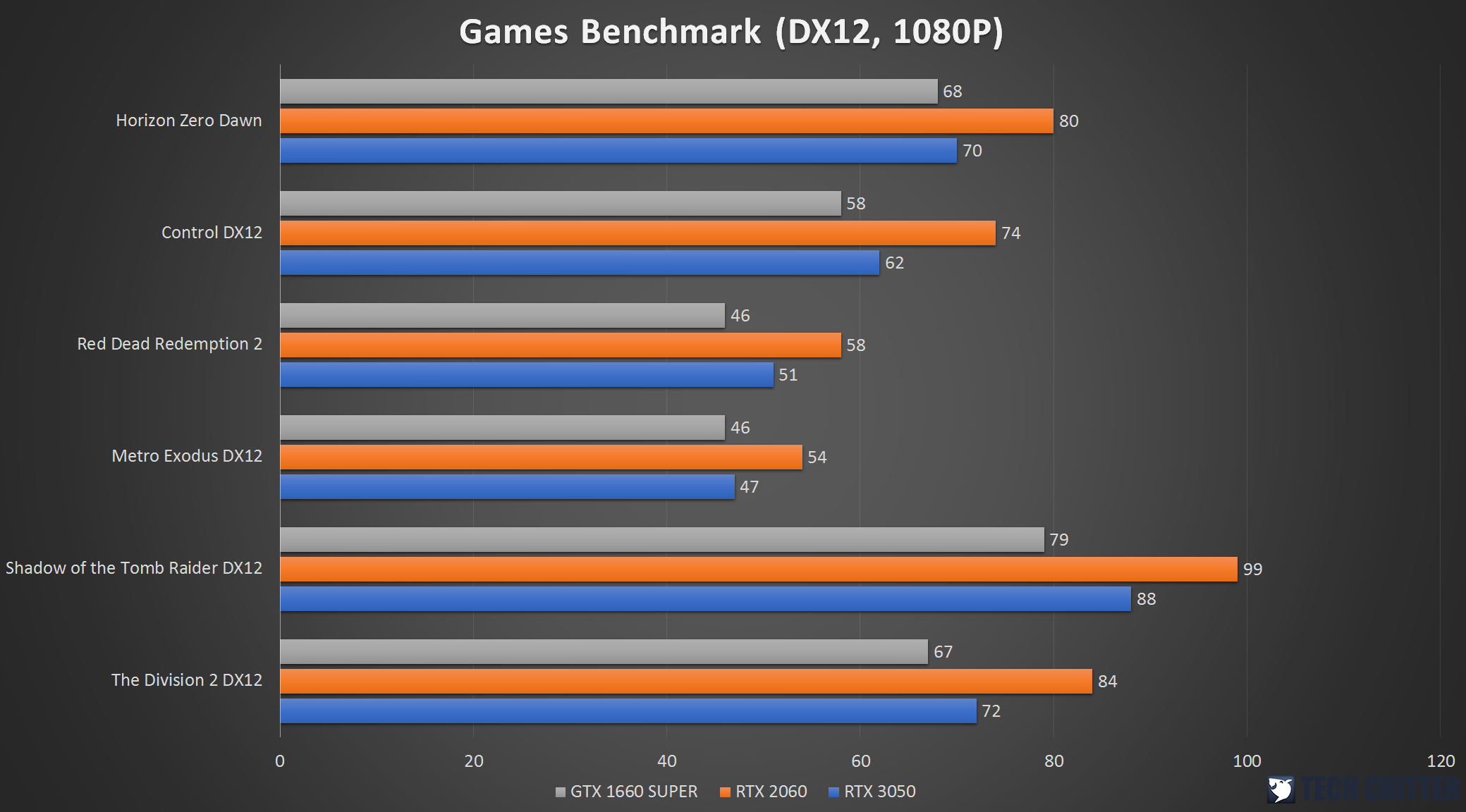

Games Benchmark (DX12)

Starting off with the raw raster performance, we can see that the RTX 3050 is just a bit more powerful than the GTX 1660 SUPER and it’s still not powerful enough to overpower the RTX 2060.

For titles that are more demanding on the graphical performance i.e Watch Dogs Legion, Cyberpunk 2077, Metro Exodus, you won’t be able to get the standard 60fps experience if you’re going straight for the highest possible settings. So you might want to tune down a little bit to probably high settings? That’ll give you a much better framerate without sacrificing too much on the overall performance.

Games Benchmark (DXR)

Now for the ray tracing performance, going straight off with ray tracing enabled without DLSS is something you should avoid because the majority of the games are pretty much unplayable.
There are games that only come with FSR but graphics quality-wise, I still think DLSS is better, especially when you’re on 1080p – the differences are just too noticeable.

Though, not all the games can reach the standard 60fps on average if we opt for the highest possible settings, so you’ll probably want to lower the settings to high to make the games more playable? Of course, if ray tracing isn’t really your thing, you can still take advantage of DLSS for a significant performance boost if the game actually supports DLSS.

Thermals & Power

Moving on to the temps and power draw, the RTX 3050 Twin Edge OC draws roughly 121W during heavy loads, and the highest temp recorded is 71ºC. The temperature is still reasonable I’d say, and the cooler is not too loud as well during load, so it’s technically a good trade-off there.

In case you’re interested to know the load temperature and power draw for the three cards we’ve used for the test, here are the numbers for your reference:

GPU Load Temperature (ºC) Power Draw (W)
RTX 3050 71 121
RTX 2060 77 121
GTX 1660 SUPER 65 118

The low power draw is also one of the highlights, as you can easily run this card with a mere 550W PSU, which is good for gamers with a limited budget for an upgrade – especially when graphics cards are still expensive at this point.

Final Thoughts

Well, there’s nothing much to complain about this card actually. I don’t have a high expectation of the performance when I first started the tests but I’m not disappointed with what it can deliver.

Performance-wise, it’s not at the same level as the RTX 2060, that’s for sure. While its raster performance is a bit more powerful than the GTX 1660 SUPER, the main highlight here is mainly the ray tracing and DLSS capabilities. Personally, I think that even if you don’t play with ray tracing enabled, the DLSS is one useful feature that can give you a performance boost in games that support this feature.

The final retail price might not be as affordable as the MSRP stated during the official launch ($249 or 1200MYR) but compared to the competing RX 6500XT that comes with almost the same price, the 8GB memory, seemingly reasonable ray tracing performance, and DLSS on this card is already a win. All in all, it’s a pretty decent entry-level 1080P ‘RTX ON’ graphics card for those who are planning to upgrade from cards like the GTX 1050 Ti or lower.

Pros
  • Reasonably powerful performance for 1080P gaming
  • Ready for games with ray tracing and DLSS features
  • Reasonable load temperature and fans are not loud on load
  • 8GB worth of VRAM
  • Low requirement for power supply (550W)
  • Compact design, suitable for small form factor builds
Cons
  • The actual price is still higher than the initial MSRP
