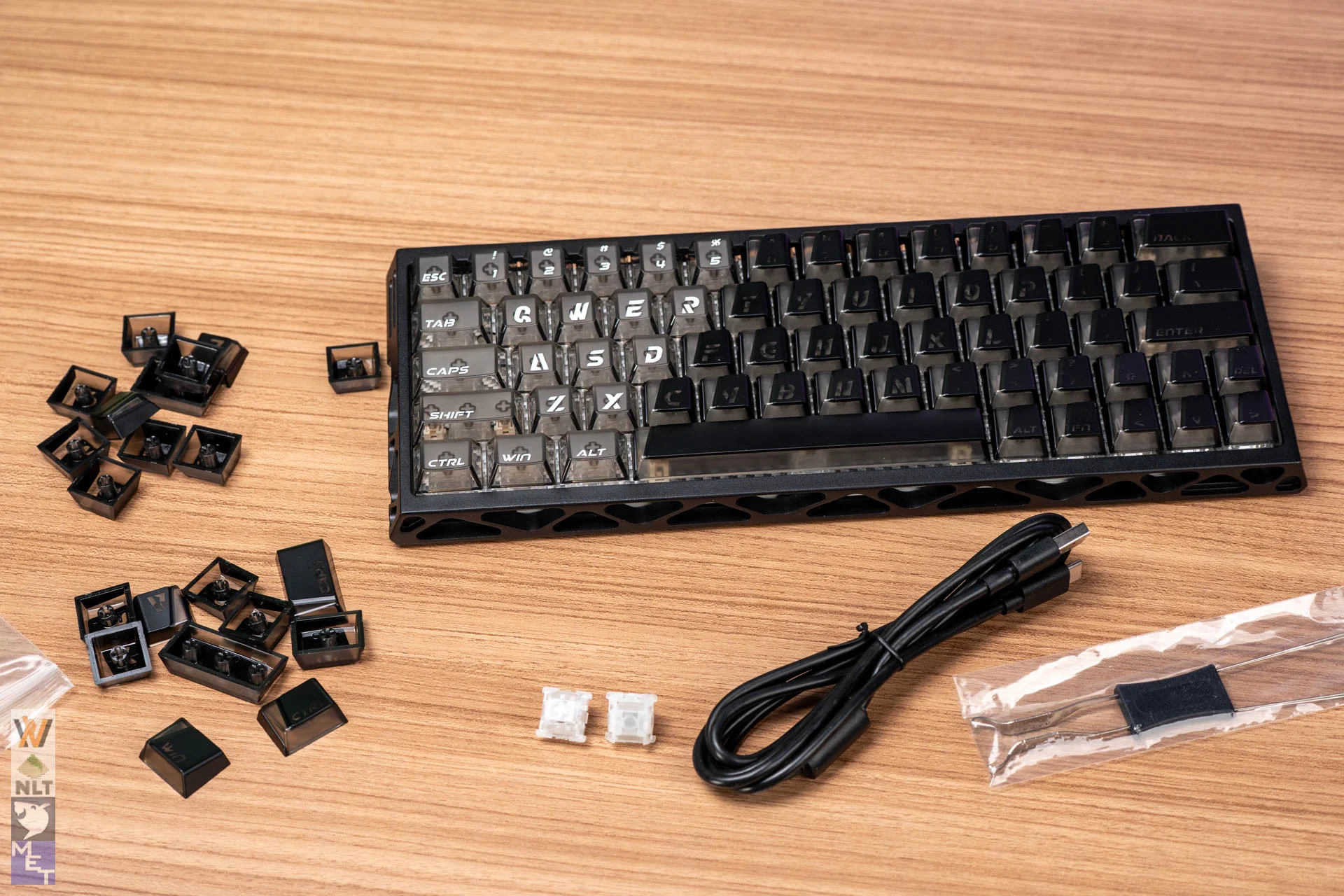

The XVX Trooper63 HE is designed around a compact 64-key layout, this board manages to squeeze dedicated arrow keys into a standard 60% footprint, giving gamers crucial directional control without taking up precious desk space for low-DPI mouse swipes. I have opted for the Phantom Black colorway, the Trooper63 HE brings a modern industrial look right out of the box.
Build Quality & Industrial Design

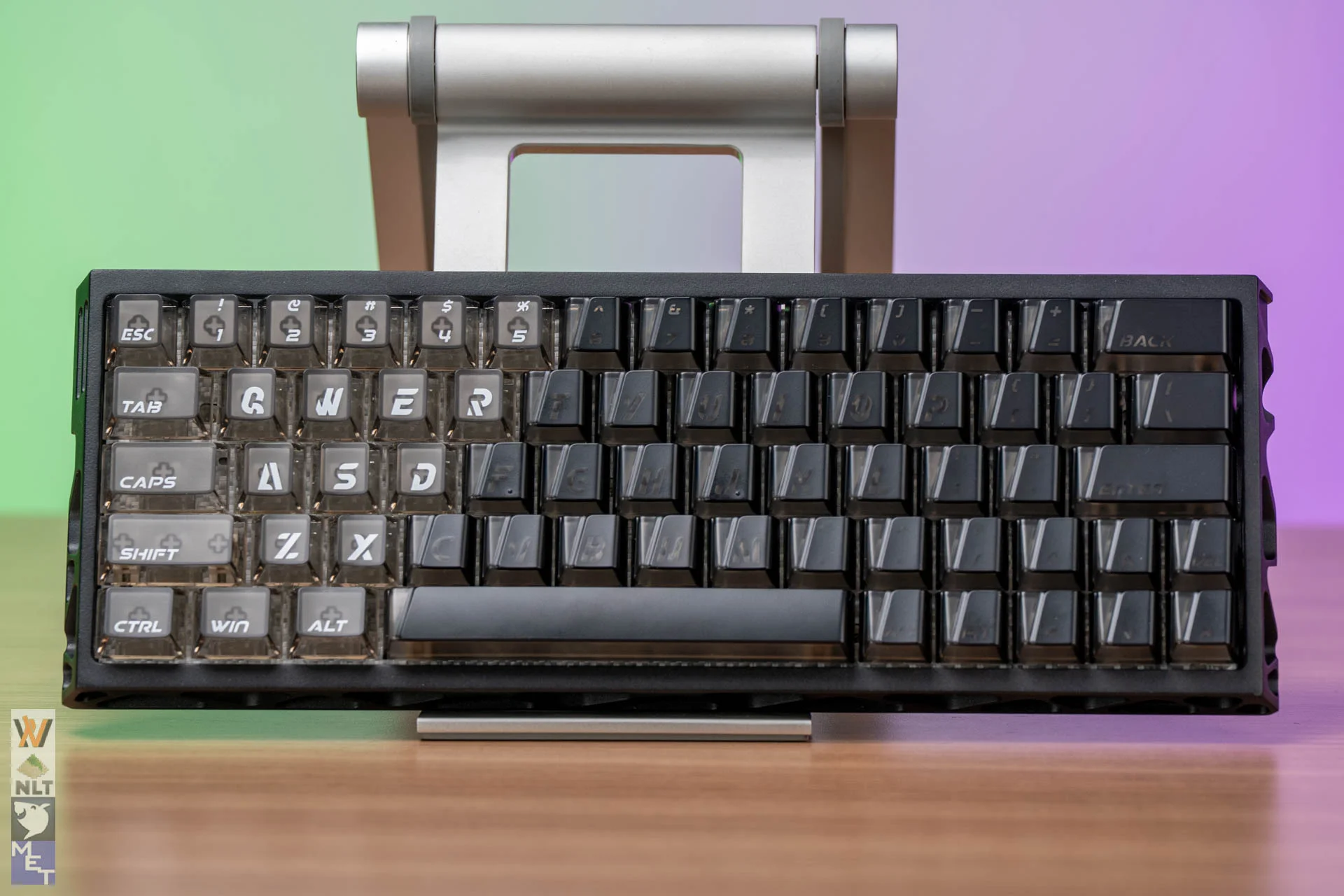

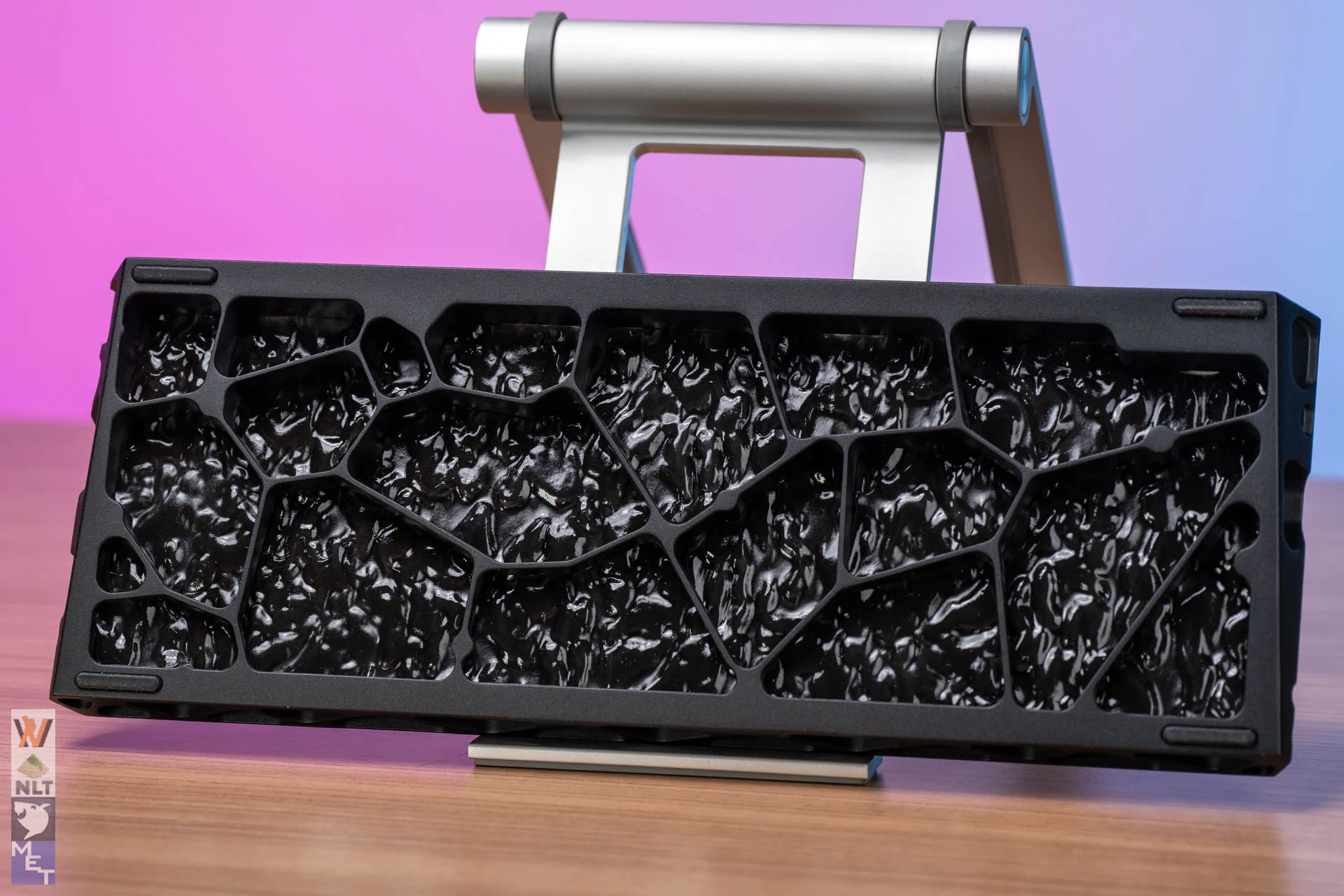

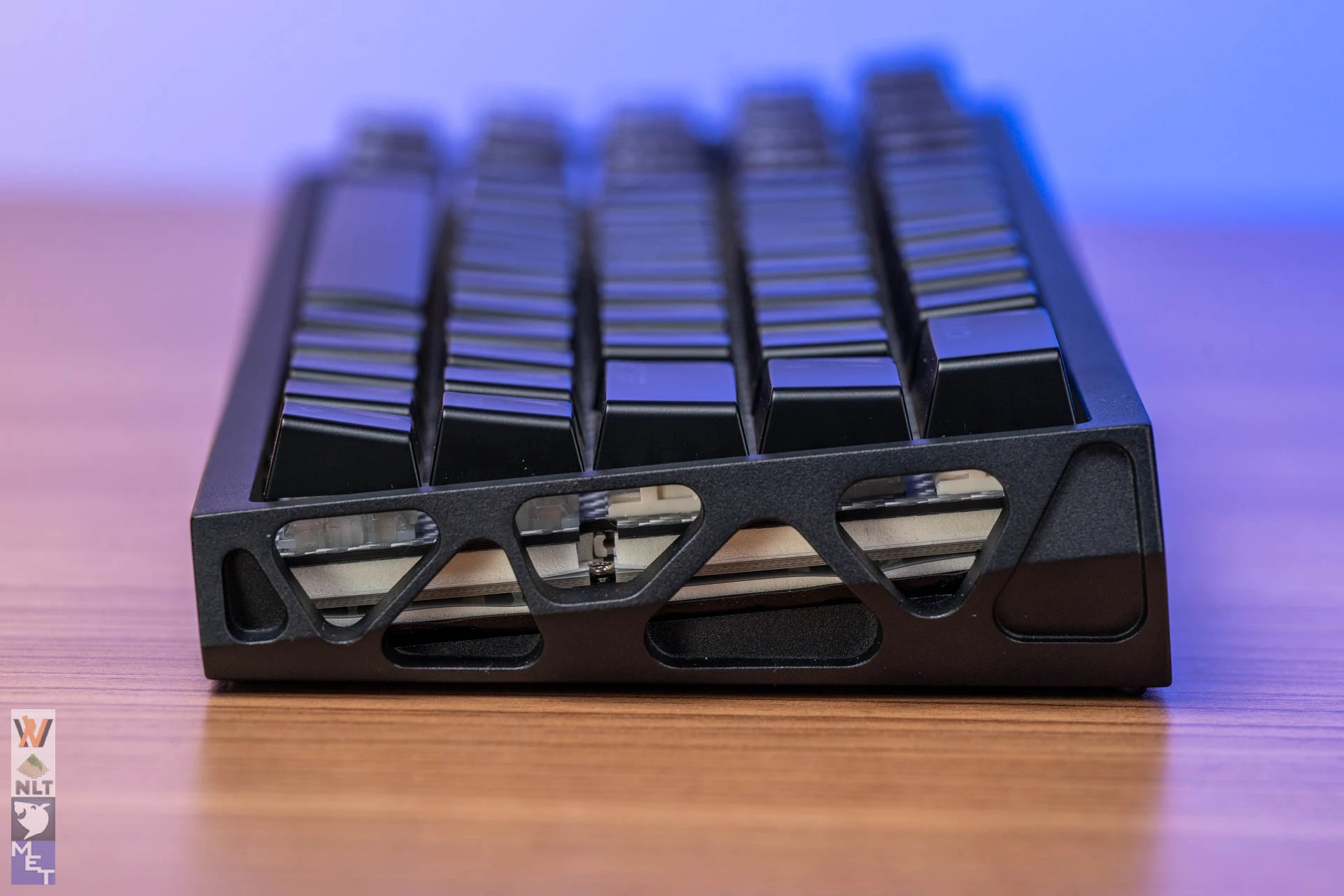

The core of the keyboard is built around a powder-coated full aluminum exoskeleton frame. Featuring geometric cutouts and open structural lines, the chassis carries a solid 673g heft that prevents any slipping during intense gaming sessions.
The aggressive exoskeleton style isn’t going to be everyone’s cup of tea, and that is perfectly fine. Aesthetic preference is completely personal, and while purists looking for a clean, traditional look might pass on it, XVX deserves credit for taking a bold design risk instead of making another generic rectangular shell.
Keycaps & Visual Style

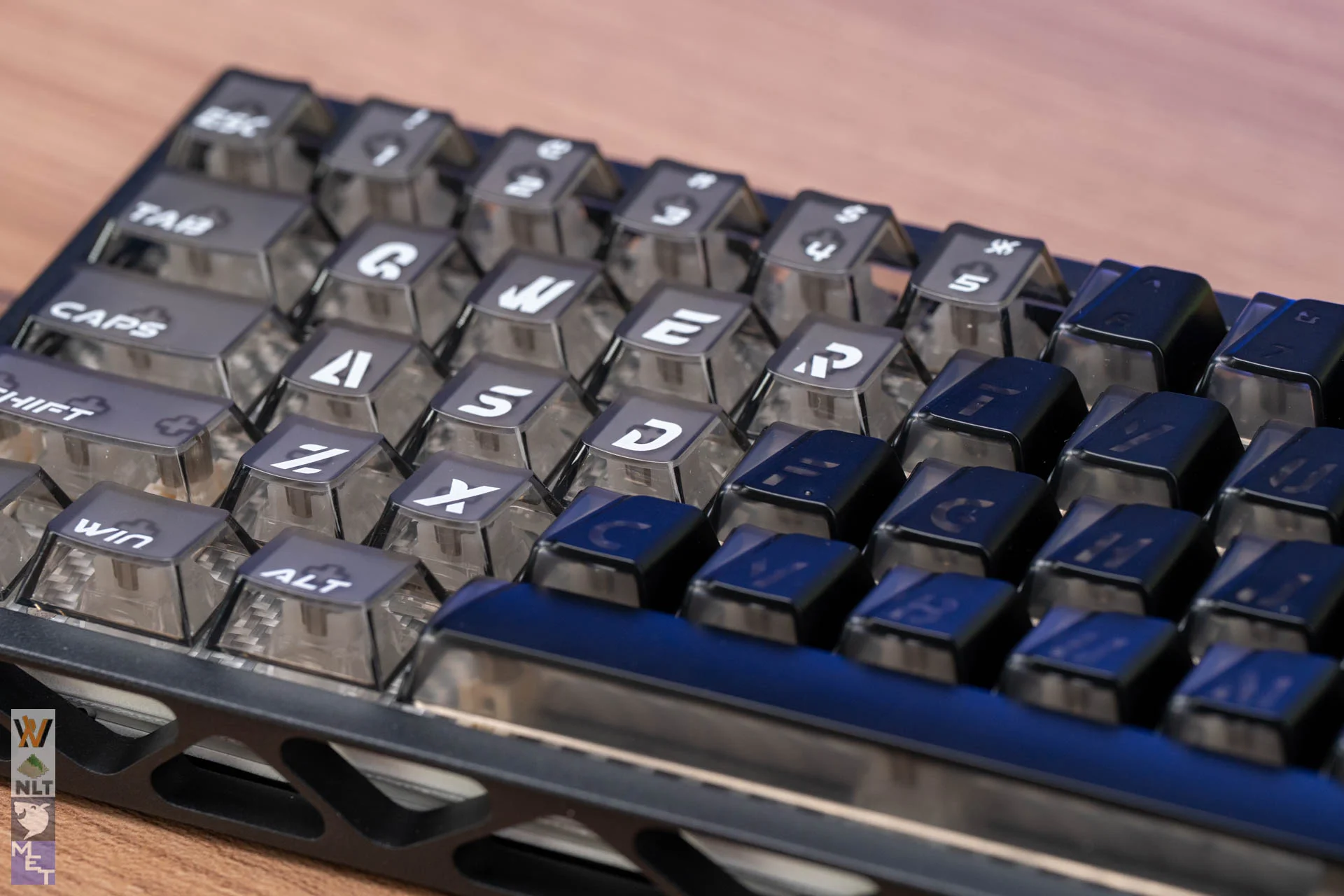

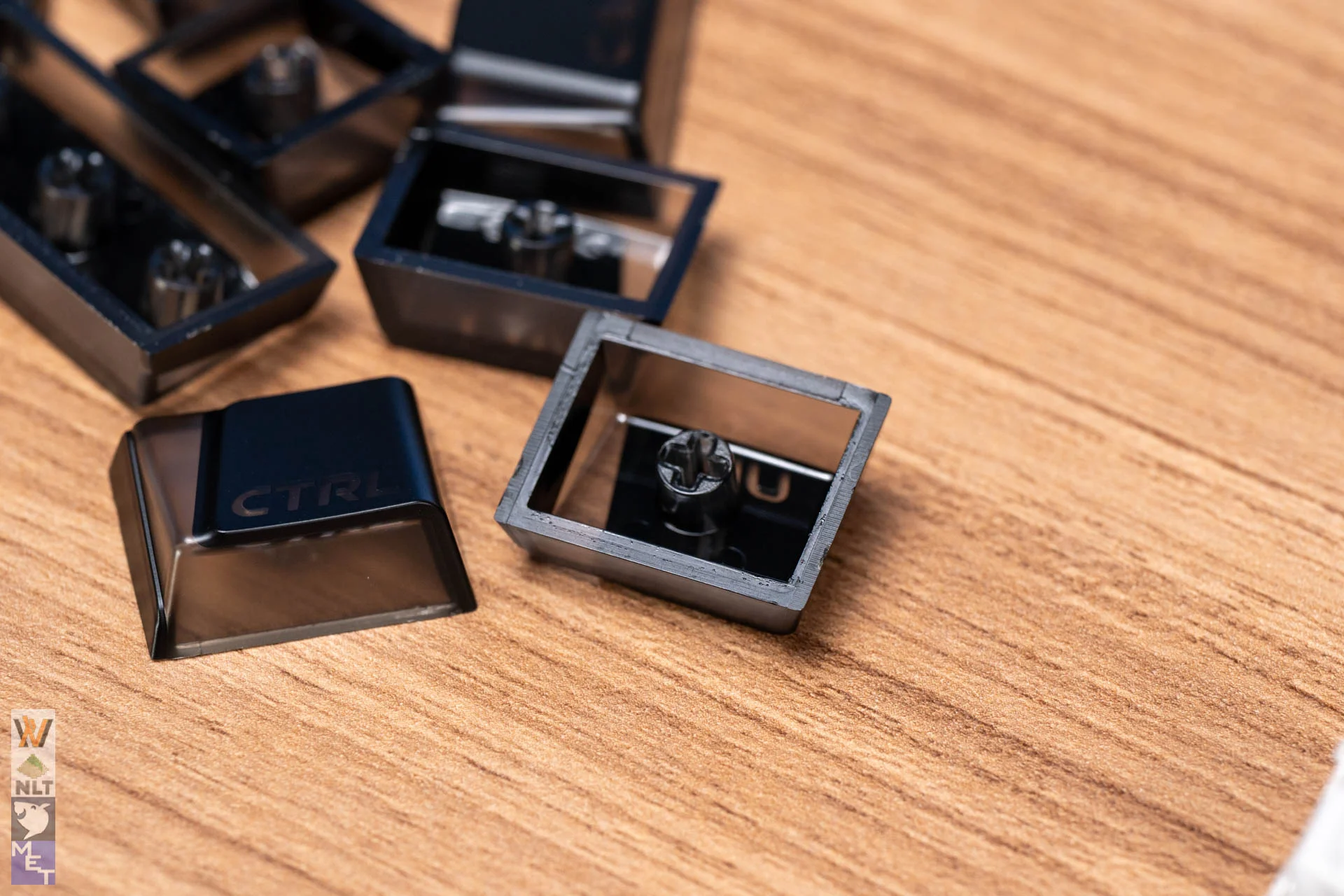

XVX equips the board with their Wedge PRISM double-shot ABS and PC shine-through keycaps in a standard Cherry profile. The legends and side-wall transparencies are arranged irregularly across the layout to emphasize a futuristic aesthetic.
Visually, the high-contrast legends look unique, but the layout presentation is hit or miss in practice. The inconsistent legends and non-traditional key placement can temporarily throw off your muscle memory during fast touch-typing or critical hotkey combinations. XVX clearly designed these keycaps to appeal to gamers looking for high visual impact, but if you rely heavily on uniform visual cues, it takes some getting used to.
Switch Performance, Carbon Fiber & Acoustics

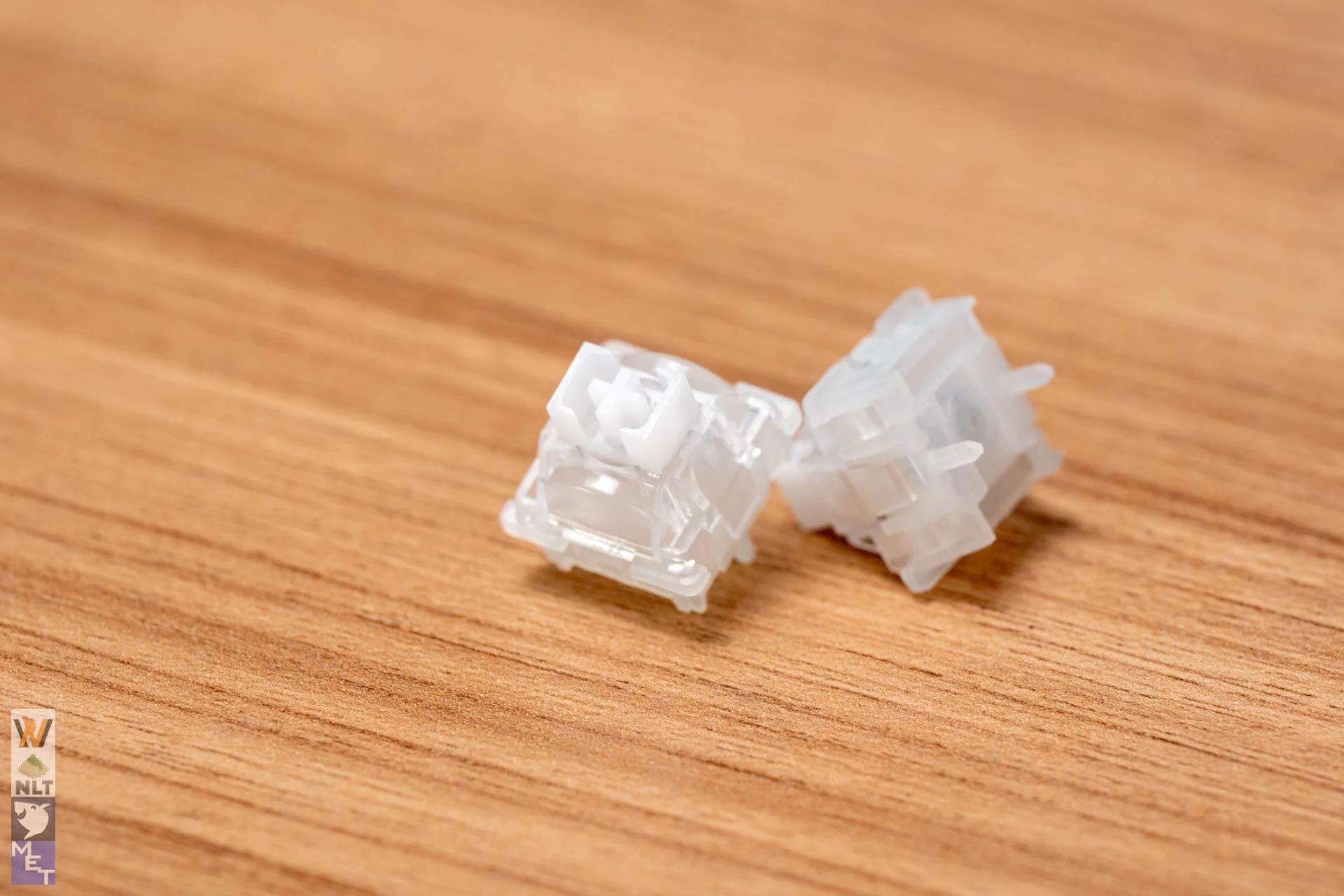

Underneath the keycaps sit the Gemini HE Dual-SMD Linear Magnetic Switches, mounted to a 1.2mm FR4 PCB and reinforced with a premium 1.5mm carbon fiber plate. To shape the acoustic profile, XVX packed the interior with a multi-layer dampening stack that includes PORON plate foam, IXPE switch pads, PET film, and a thick PORON bottom case foam.
In hand, these Gemini HE switches are hands-down some of the smoothest Hall Effect switches on the market right now. The downstroke feels continuous with zero spring crunch or key wobble. Paired with the carbon fiber plate and dense dampening layers, the typing feel delivers a deep, solid bottom-out sound that avoids the hollow ping often found in budget aluminum boards.
Dual-Lighting RGB Implementation

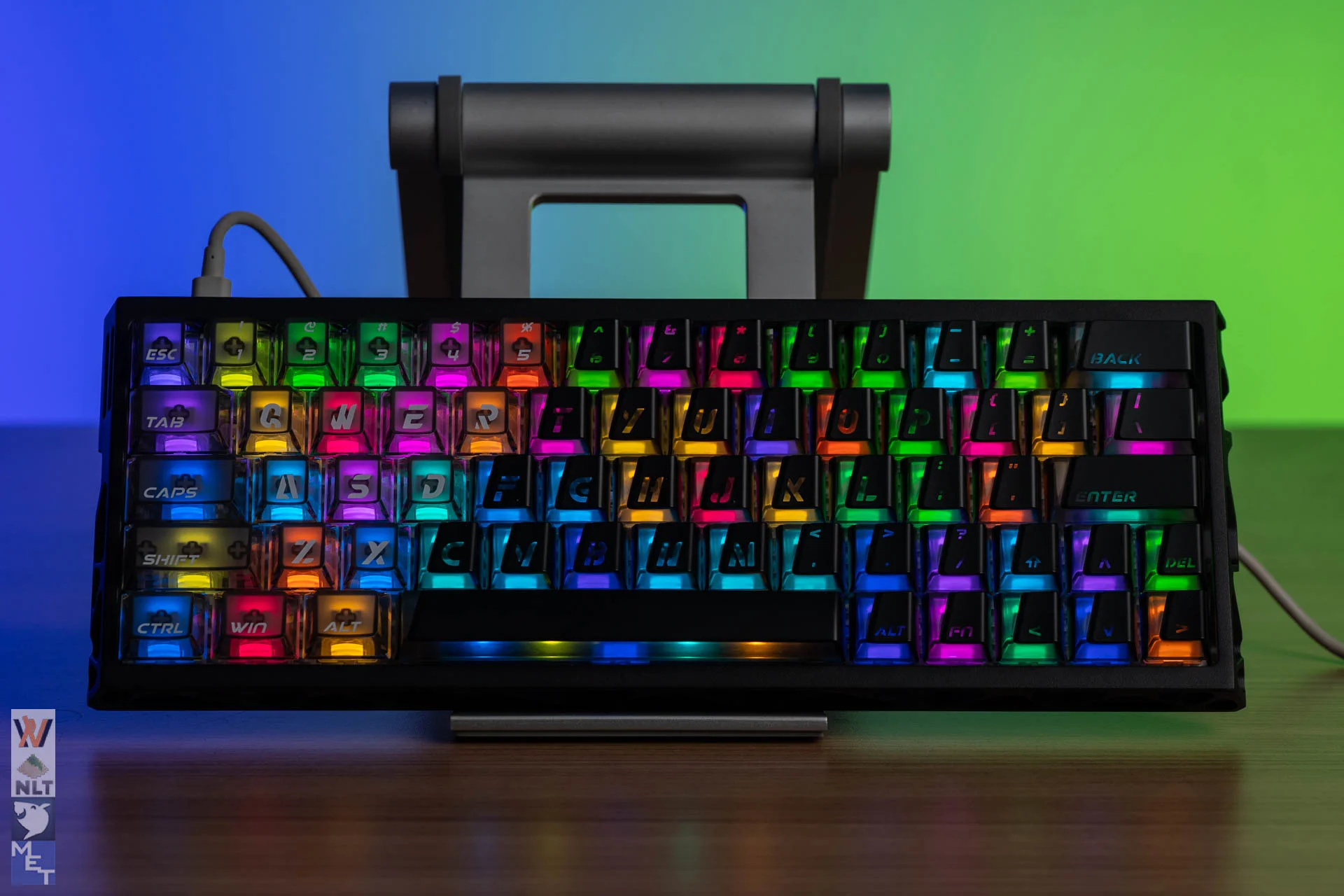

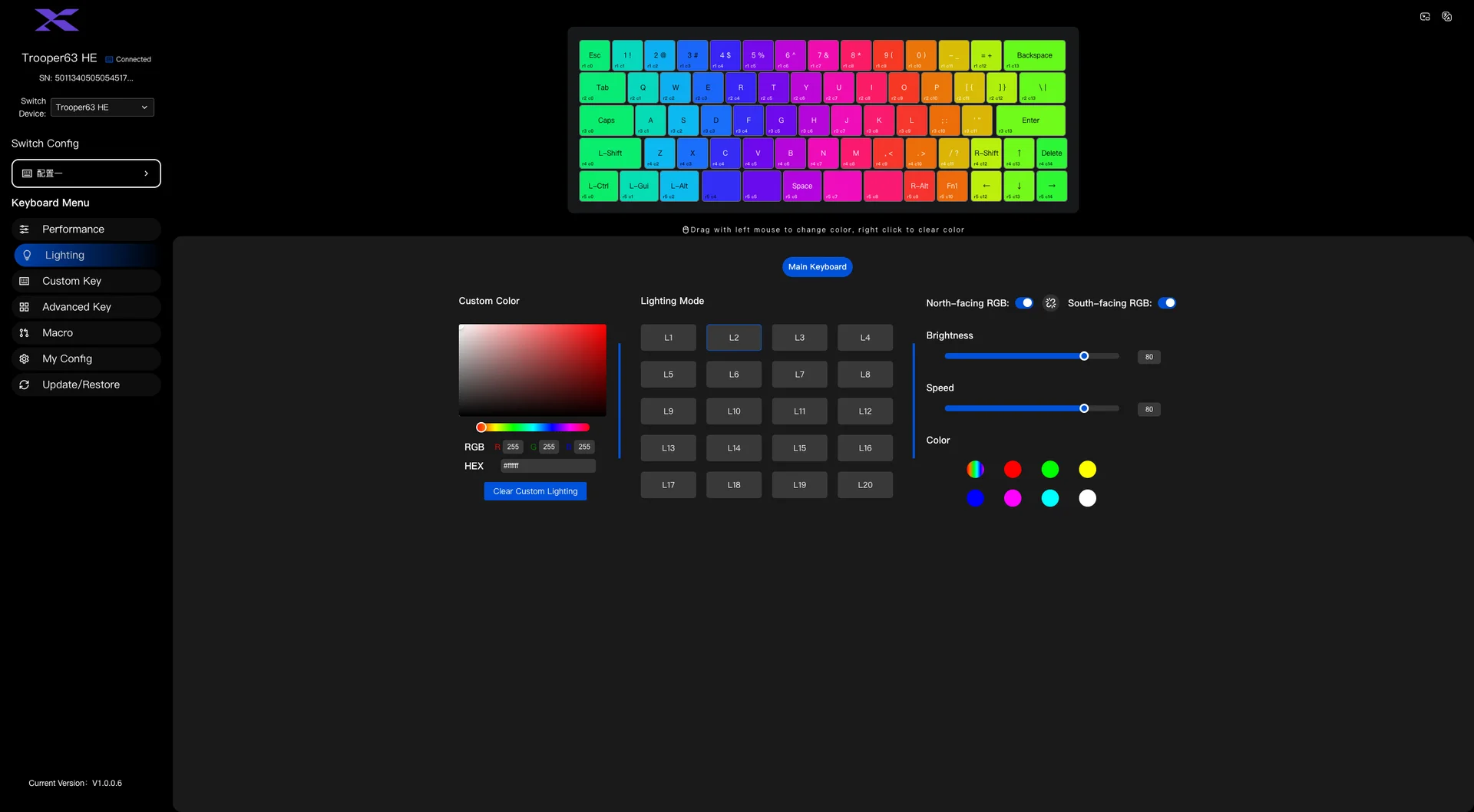

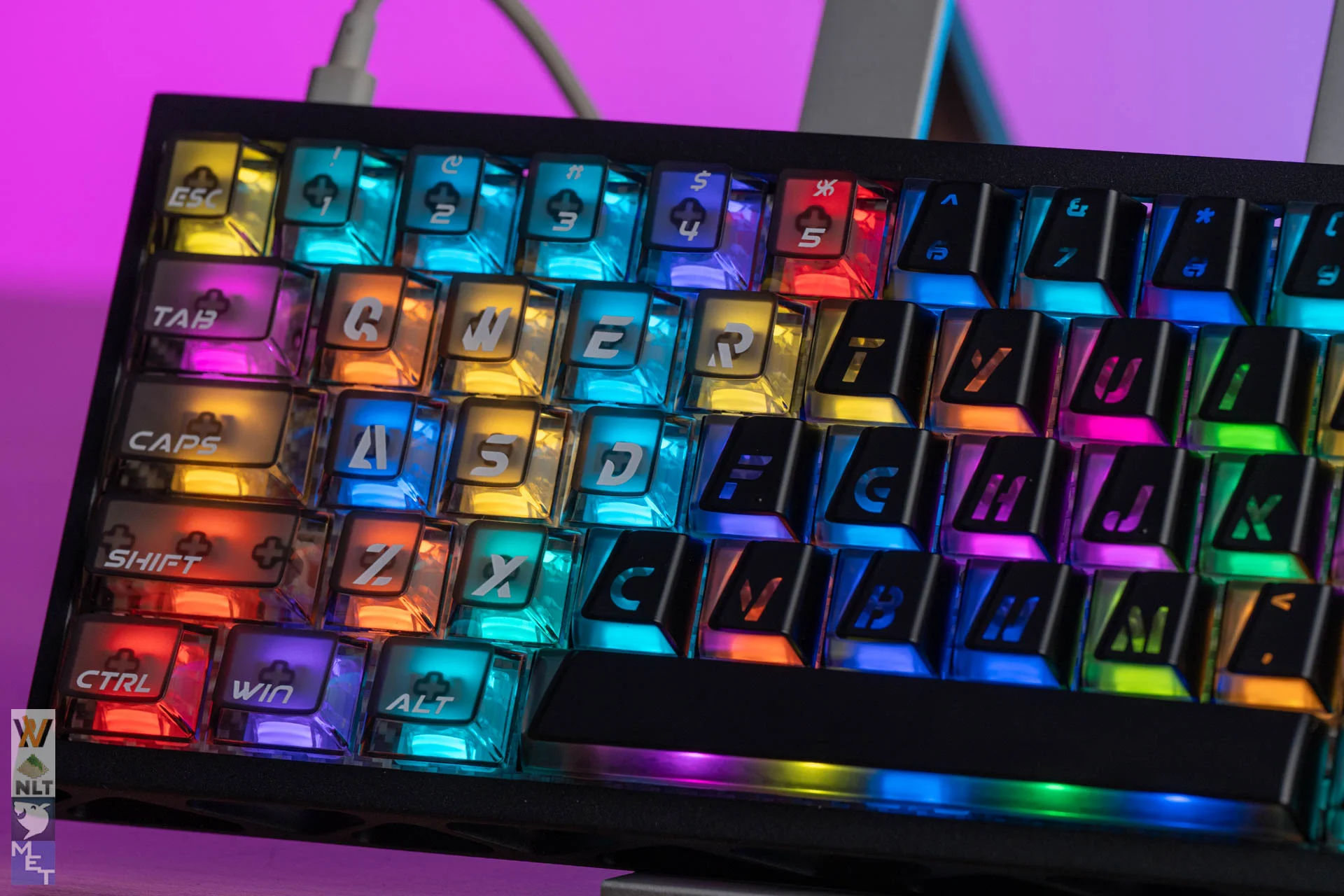

Lighting is an area where the Trooper63 HE completely outshines typical gaming peripherals. XVX implemented a Gemini Dual-Lighting system, embedding both north-facing and south-facing LEDs per key.
Putting two distinct LEDs inside every single switch socket is a brilliant move. It floods both the keycap legends and the transparent housing with light, eliminating the dark spots typical of single-LED PCBs. The result is one of the brightest and most vibrant backlight implementations on any board tested so far, keeping the illumination sharp even under bright room lighting.
Web Driver & Advanced Rapid Trigger Features

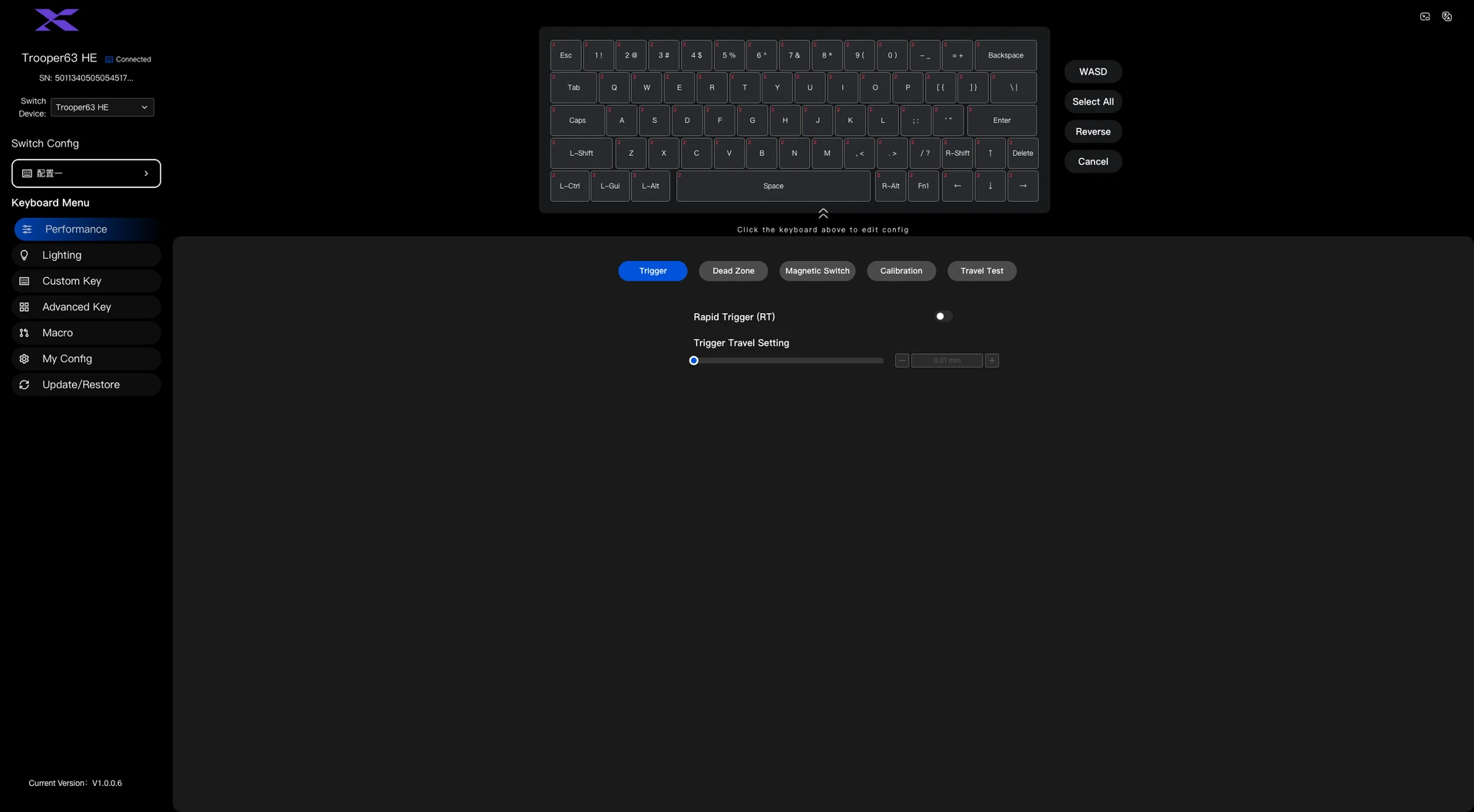

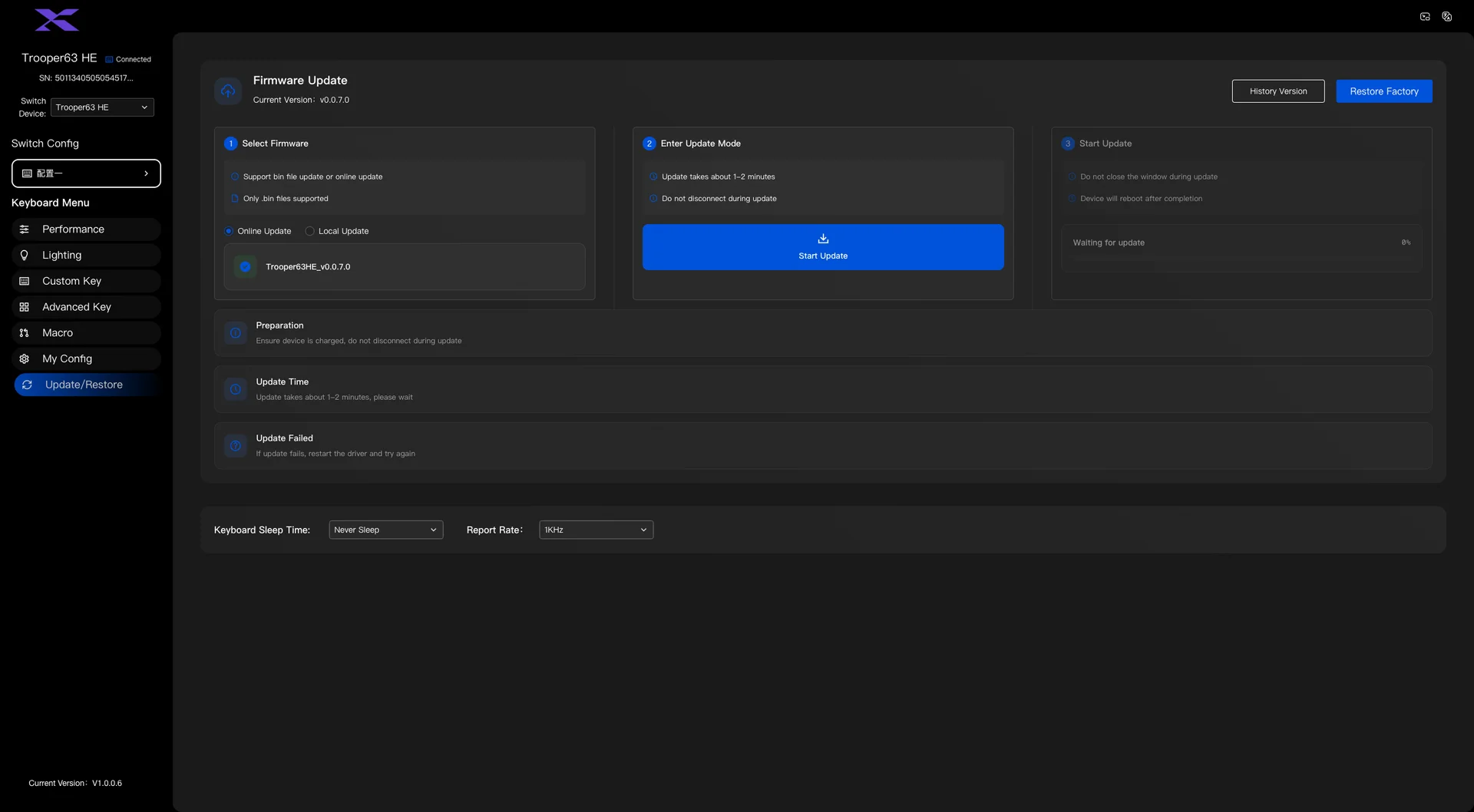

Performance configuration is managed through a web-based driver interface, removing the need to install bloated background software on your system.

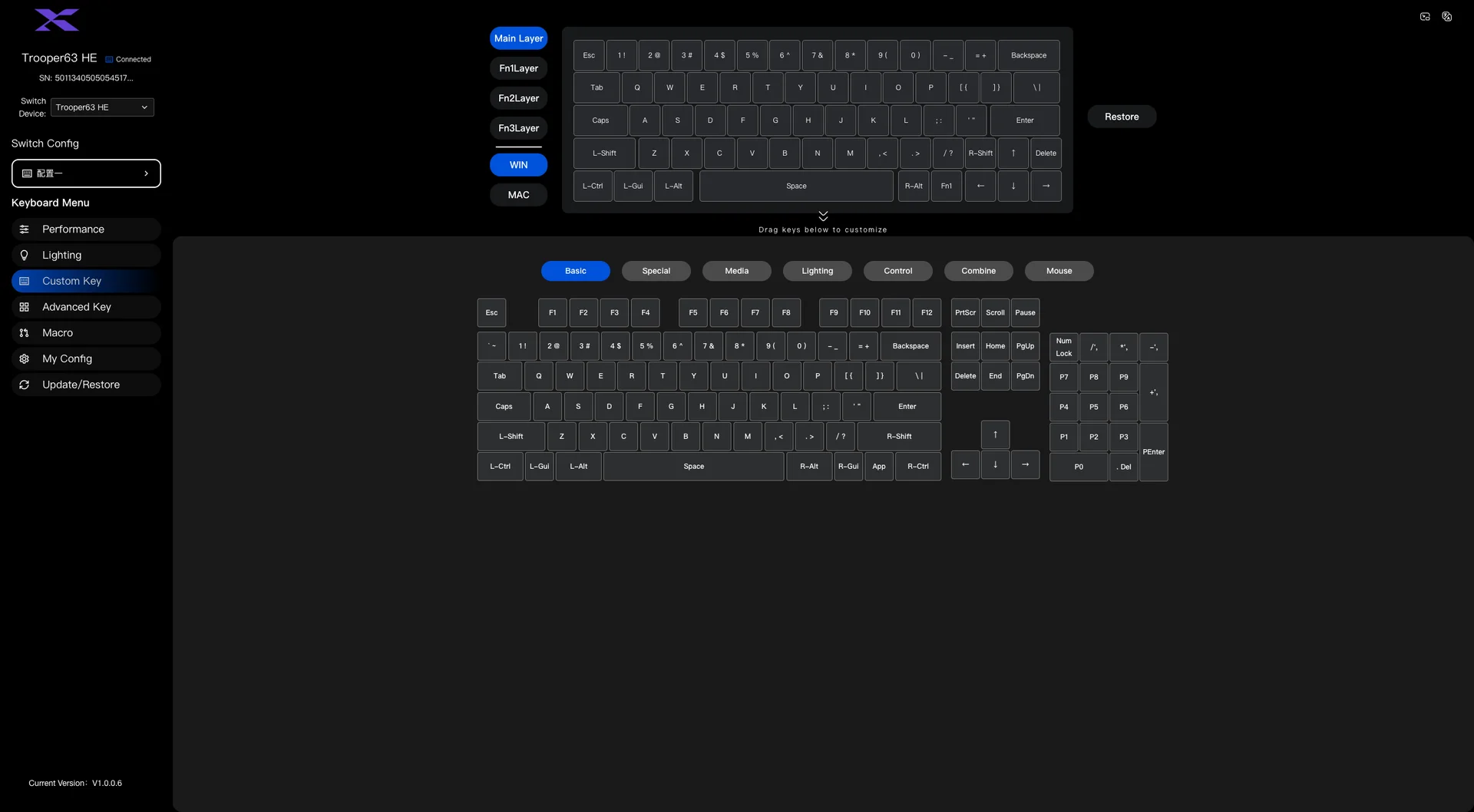

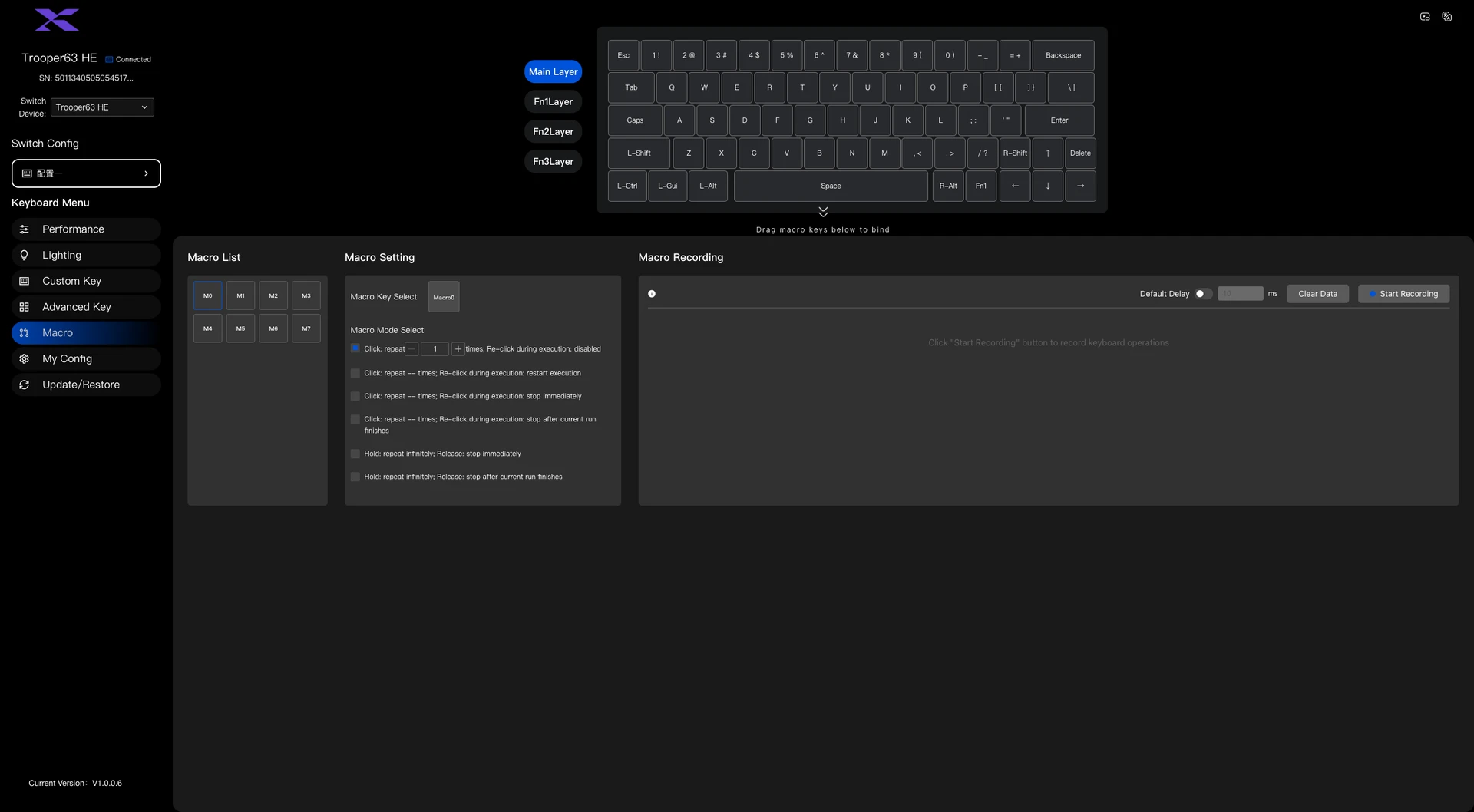

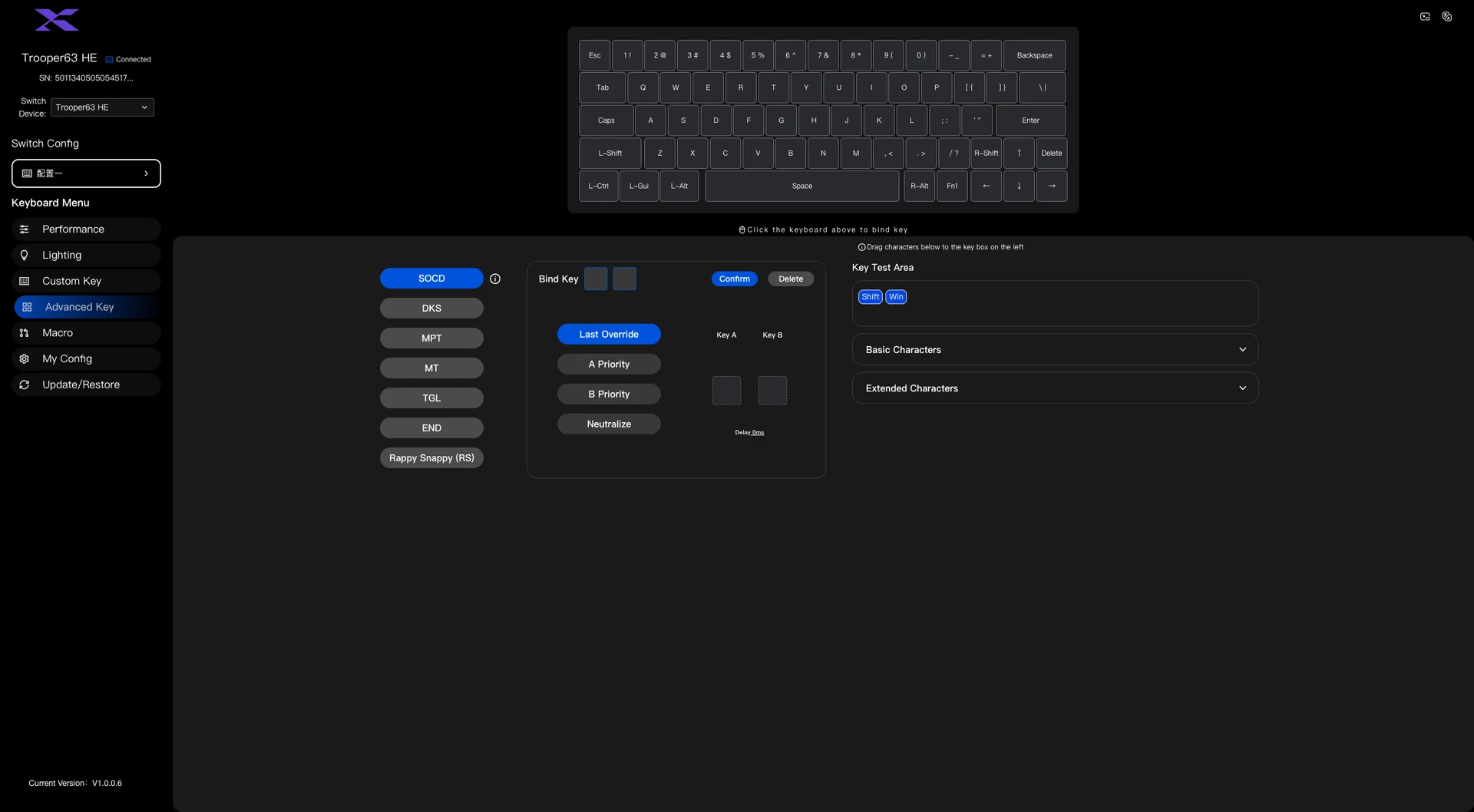

Through the web driver, you can fine-tune actuation points across a 0.01 mm adjustment range to customize touch sensitivity per key. On top of standard remapping and macros, the board natively supports competitive esports features like Dynamic Key Stroke (DKS), SOCD (Simultaneous Opposite Cardinal Direction) resolution for instant directional changes, and Rappy Snappy for rapid strafing speed in tactical shooters.
Hardware Performance & Connectivity

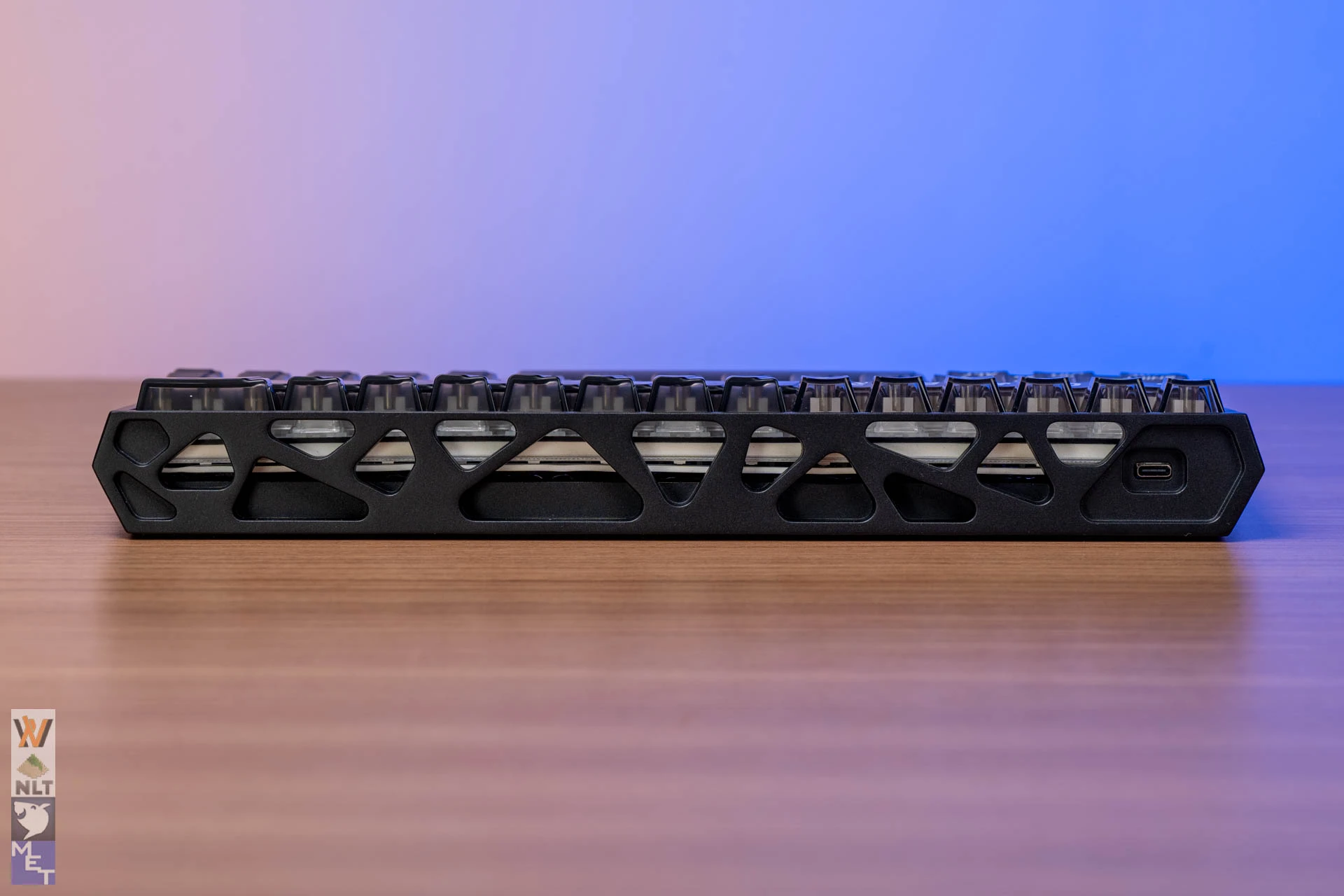

The hardware pipeline is optimized strictly for speed. Inside, the keyboard runs a 32kHz sensor scan rate, a 4,000Hz key scan rate, and a 1,000Hz USB polling rate to deliver 1ms response times. Connection to your PC is handled through a detachable USB Type-C port on the rear.
Seeing a strictly wired keyboard in a market dominated by tri-mode wireless boards might seem surprising, but the engineering logic is straightforward. High-frequency magnetic sensor arrays drawing continuous power, combined with high-density dual north/south RGB LEDs per key, draw far too much current for a standard battery setup. Ditching wireless avoids massive battery weight and eliminates potential connection latency spikes, ensuring performance remains rock-solid for low-latency gaming.
Verdict
The XVX Trooper63 HE is a distinct, performance-driven keyboard built specifically for competitive players. By combining ultra-smooth magnetic switches, a premium carbon fiber plate setup, and unmatched RGB brightness with a driver-free web interface, it delivers incredible hardware for the money. Even if the exoskeleton case and unconventional keycap style divide opinions, its performance on the desk speaks for itself.
