ECS launches the new LEET Gaming Series Motherboard Z790H7-A and Barebone PC B660 at Infocomm SEA 2022

ECS has announced that it will be exhibiting at the upcoming Infocomm SEA 2022 located in Bangkok, Thailand, from 2th to 4th November 2022, showcasing its new LEET gaming series products as well as the LIVA Mini PC and All-in-One PC.

And today we will be briefly going through the LEET Gaming series products.

ECS LEET Gaming Series Motherboard and Barebone PC 1

To begin, the LEET Gaming Barebone PC B660 is specially designed to aid users in building up their ideal PC setup. It comes with a B660H7-M20 motherboard supported by the Intel 12th Gen CPU for LGA 1700 socket and is powered by either NVIDIA GeForce RTX 30 series GPU or AMD Radeon RX 6000 series GPU, along with a PSU of up to 650W.

Here are the specifications of the LEET B660:

Chipset
  • Intel B660 Chipset
CPU
  • Supports 12th Gen Intel Core family/ Pentium / Celeron series processors for LGA 1700 socket
  • TDP 65W
  • 7+1 Phase Thermal Design Power
Compatible Motherboard
  • ECS B660H7-M20
Graphics
  • AMD Radeon RX6650 XT 8GB GDDR6 (PSU 550W model)
  • NVIDIA GeForce RTX 3070 8GB GDDR6 (PSU 650W model)
  • NVIDIA GeForce RTX 3060 Ti 8GB GDDR6 (PSU 650W model)
Memory
  • Dual-channel DDR4 Memory architecture
  • Support up to 64GB, 3200MHz max. non-ECC, Un-buffered SDRAM Memory
  • 2 x 288-pin DDR4 DIMM socket
Storage
  • 1 x M.2 2280 Key M, Support PCIe Gen 4×4
  • 1 x M.2 2280 Key M, Support SATA 3.0
  • 3 x SATA 6Gb/s ports
Drive Bays
  • 1 x 3.5″/2.5″
  • 1 x 2.5″
Audio
  • Realtek ALC1200 7.1-CH HD Audio Codec
Networking
  • 1 x Intel i219V Gigabit Fast Ethernet Controller
  • 1 x M.2 2232 Key E, Support interface PCIe / CNVi
I/O Ports
  • Front Panel
    • 2 x USB 3.1 Gen1
    • 1 x Earphone
    • 1 x Microphone
  • Rear Panel
    • 1 x DisplayPort 1.4 (onboard) + 3 x DisplayPort 1.4 (on card)
    • 1 x HDMI 2.0 (onboard) + 1 x HDMI 2.1 (on card)
    • 1 x USB 3.2 Gen2 Type C
    • 2 x USB 3.2 Gen1
    • 2 x USB 2.0
    • 1 x RJ45 Ethernet
    • 1 x Audio Jack combo
Dimensions / Volume
  • 381mm (H) x 209mm (W) x 390mm (D)
  • 26L
Power
  • 550W / 650W, 80+ Gold 100-240V

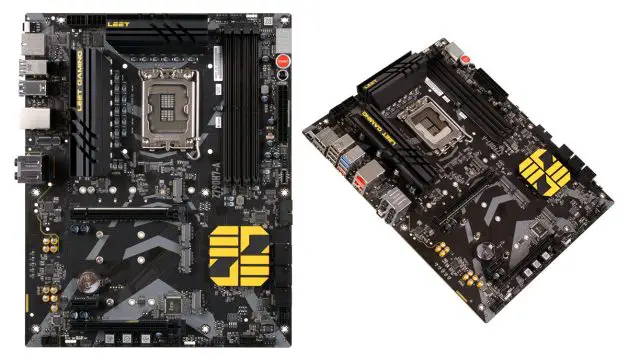

ECS LEET Gaming Series Motherboard and Barebone PC 2

For the LEET Gaming motherboard, we have the Z790H7-A which is built with next-gen technology to support Intel 12th & 13th Gen Processors for LGA 1700 socket, dual channel DDR5 RAM up to 128GB, PCIe 5.0 slot, etc. Take a look at the following list of the Z790H7-A specification:

Chipset
  • Intel Z790 Express Chipset
CPU
  • Support Intel 12th & 13th Gen Processors for LGA 1700 socket
Memory
  • Support 4 x DIMMs, Dual Channel DDR5 4800+, up to 128GB
Storage
  • 4 x SATA 6Gb/s support SATA RAID 0,1,5,10 + extra 2 x SATA 6Gb/s
  • 4 x M.2 support PCIe RAID 0,1,5
  • 1 x M.2 supports 2242/2260/2280 PCIe Gen 4 x 4 NVME SSD
  • 2 x M.2 supports 2242/2280 PCIe Gen 4 x 4 SSD
  • 1 x M.2 supports 2242/2260/2280 PCIe Gen 4 x 4 & SATA SSD
Expansion Slots
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 3.0 x 1
  • 1 x M.2 supports 2230 WLAN/BT, CNVi
I/O Ports
  • 1 x HDMI port/ 1 x DisplayPort
  • 1 x USB 3.2 Gen 2×2
  • 4 x USB 3.2 Gen 2×1
  • 4 x USB 3.2 Gen 1×1
  • 8 x USB 2.0
Audio
  • 8-Channel (7.1) HD Audio subsystem by Realtek ALC1220
Ethernet
  • Intel i225v 2.5G LAN Controller
Dimension
  • 305 x 244mm

And in case you’re interested in the LIVA All-in-One PC G24-MH610, we have also covered it previously which you can read via this link!
