It’s been quite a while since NVIDIA announced the RTX 3060 and with the price finally going down a little since the GPU shortage started, gamers can finally get their hands on the RTX 30 series graphics card after the long wait, hopefully. With that being said, we’ll be taking a look at another RTX 3060 in this review, and this time, it’s the ASUS ROG Strix GeForce RTX 3060 OC Edition. Now it’s pretty obvious that it’s not going to overtake the RTX 3060 anytime soon when it comes to performance but we’ll be comparing it against a base RTX 3060 to see what kind of performance we can expect from the ROG Strix GeForce RTX 3060 OC Edition.

Specifications

GPU GeForce RTX 3060 ROG Strix GeForce RTX 3060 OC Edition
CUDA Cores 3584 3584
Tensor Cores 112 112
RT Cores 28 28
ROPs 48 48
GPU Boost Clock 1777 MHz 1882 MHz
Memory Data Rate 15 Gbps 15 Gbps
Total Video Memory Size 12GB GDDR6 12GB GDDR6
Memory Interface 192-bit 192-bit
Memory Bandwidth 360 GB/s 360 GB/s
TDP 170W 170W
Recommended PSU 550W 750W
Power Connectors 1 x PCIe 8-pin

Unboxing

ASUS ROG Strix RTX3060



While we’re not going to talk much about the packaging, I’d still say that the packaging is pretty well done, much to be expected from ASUS. At the front of the box, you’ll find the basic information such as the 12GB worth of VRAM the card has, the ‘OC Edition’ label that indicates the card is factory overclocked to deliver a slightly higher boost clock, etc.

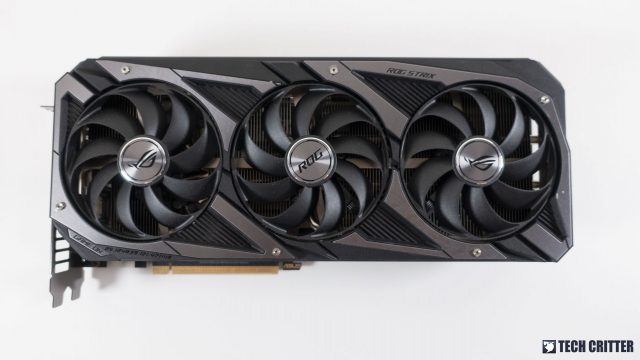

ASUS ROG Strix RTX3060 3



Design-wise, the ROG Strix GeForce RTX 3060 OC Edition looks pretty much similar to the rest of the RTX 30 series ROG Strix cards, same looking triple-fan cooler except that it’s shorter in length. Compared to the renders from the marketing materials on their official website that is overly RGB-fied, the actual card itself is actually very decent.

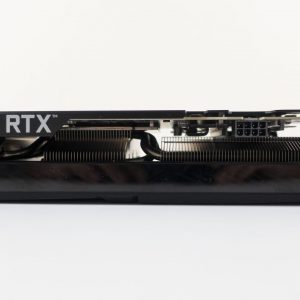

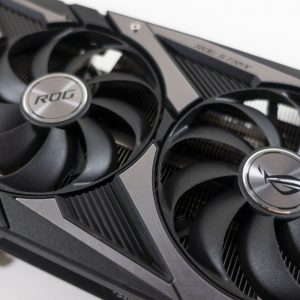

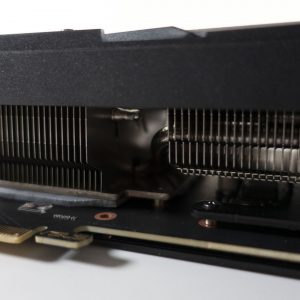

A closer look shows that the ROG Strix GeForce RTX 3060 OC Edition here is equipped with triple axial fans, which the middle fan spinning in an alternate direction to deliver better coverage on the heatsink and improve the overall cooling performance. The card will take up roughly 3 slots on your PCIe expansion slots but since it’s not colossal to begin with, it’ll fit in most standard PC cases without any issue.

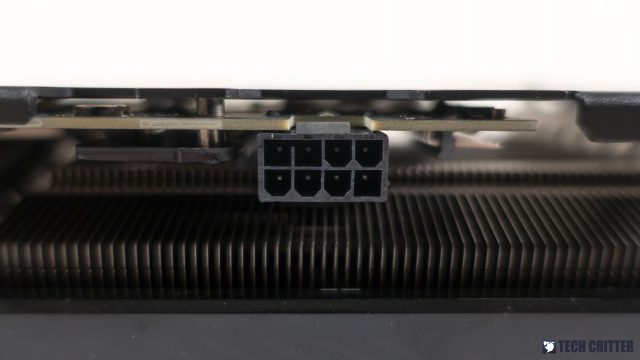

ASUS ROG Strix RTX3060 10

For the power requirement, the recommended power supply as stated on the official product page is at a surprising 750W but the card will run just fine on a decent 650W power supply. Unlike the RTX 30 series Founders Edition cards that come with the new but unconventional 12-pin PCIe power socket, the ROG Strix GeForce RTX 3060 OC Edition is still equipped with the more common 8-pin PCIe power socket that many of us are familiar with.

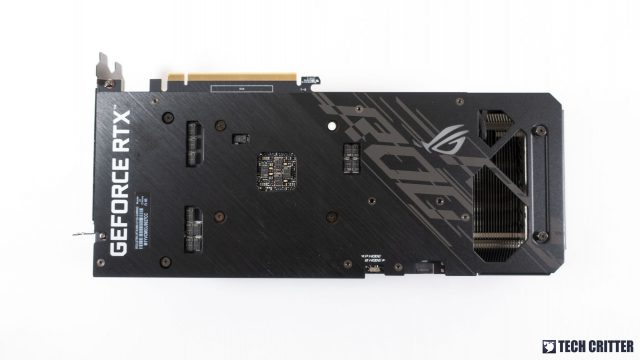

ASUS ROG Strix RTX3060 11

It’s 2021 and I don’t think you’ll find any RTX 3060 that comes without a metal backplate, especially for a ROG Strix card. Although it’s not made the same or similar to the higher-end RTX 30 series ROG Strix cards, the design overall is still considered decent.

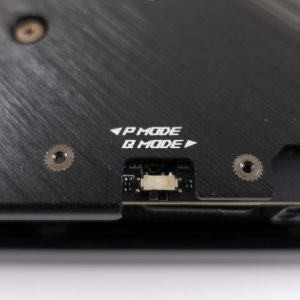

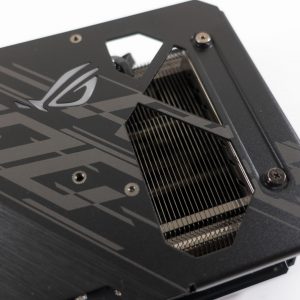

A cutout can be found at the near end of the backplate, which helps to channel the hot hair to be exhausted through the rear cooling fan, similar to the cooling design on the Founders Edition cards. You’ll also find a dip switch located next to the PCIe socket to toggle between Performance and Quiet mode, depending on your preference.

ASUS ROG Strix RTX3060 15

For the display output, the ROG Strix GeForce RTX 3060 OC Edition comes with a total of 3 x DisplayPort and 2 X HDMI. It’s good to see that ASUS actually included an extra HDMI this time, a really good inclusion I’d say, especially for users who use monitors with HDMI ports mostly.

Test System Setup

For our games benchmark test, we’ve selected a number of AAA titles to run at its highest possible settings using the following setup under an ambient temperature of 31°C:

CPU Intel Core i9-10900K
Motherboard ASUS ROG Maximus XII Apex
Memory TEAMGROUP T-FORCE XTREEM ARGB DDR4 @3600MHz
Graphics Card ASUS ROG Strix GeForce RTX 3060 OC Edition
Power Supply Cooler Master V1200 Platinum
Primary Storage Kingston NV1 PCIe NVMe SSD 1TB
Secondary Storage WD Black 6TB
CPU Cooler Cooler MasterLiquid Master ML360R RGB
Chassis Streacom Open Benchtable BC1
Operating System Windows 10 64bit

Games Benchmark (DX12)

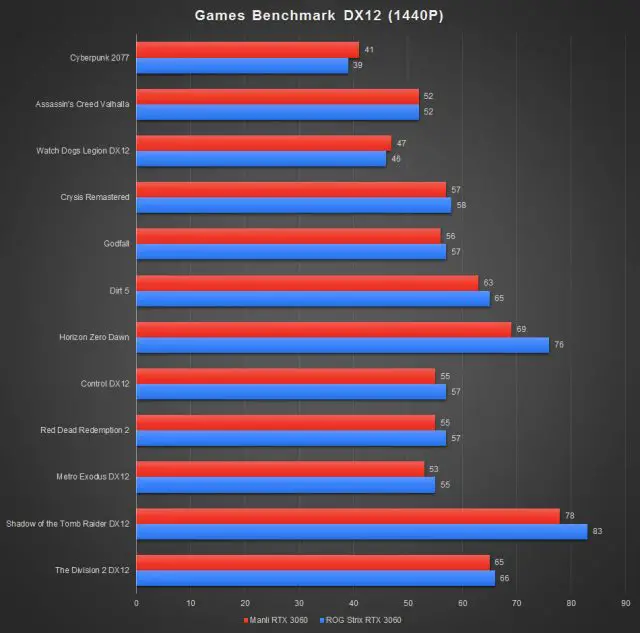

ASUS ROG Strix RTX 3060 Benchmark DX12 1080P a ASUS ROG Strix RTX 3060 Benchmark DX12 1440P a ASUS ROG Strix RTX 3060 Benchmark DX12 4K a

Starting off with the raster performance, 4K gaming is definitely out of the question for both the RTX 3060 and it’s not recommended unless you’re willing to go as far as to sacrifice most of the graphics just for the sake of gaming on 4K. 1080P is pretty much a piece of cake for the RTX 3060 and you can even play on 1440P with reasonable graphics, depending on how demanding the title is.



Games Benchmark (DXR)

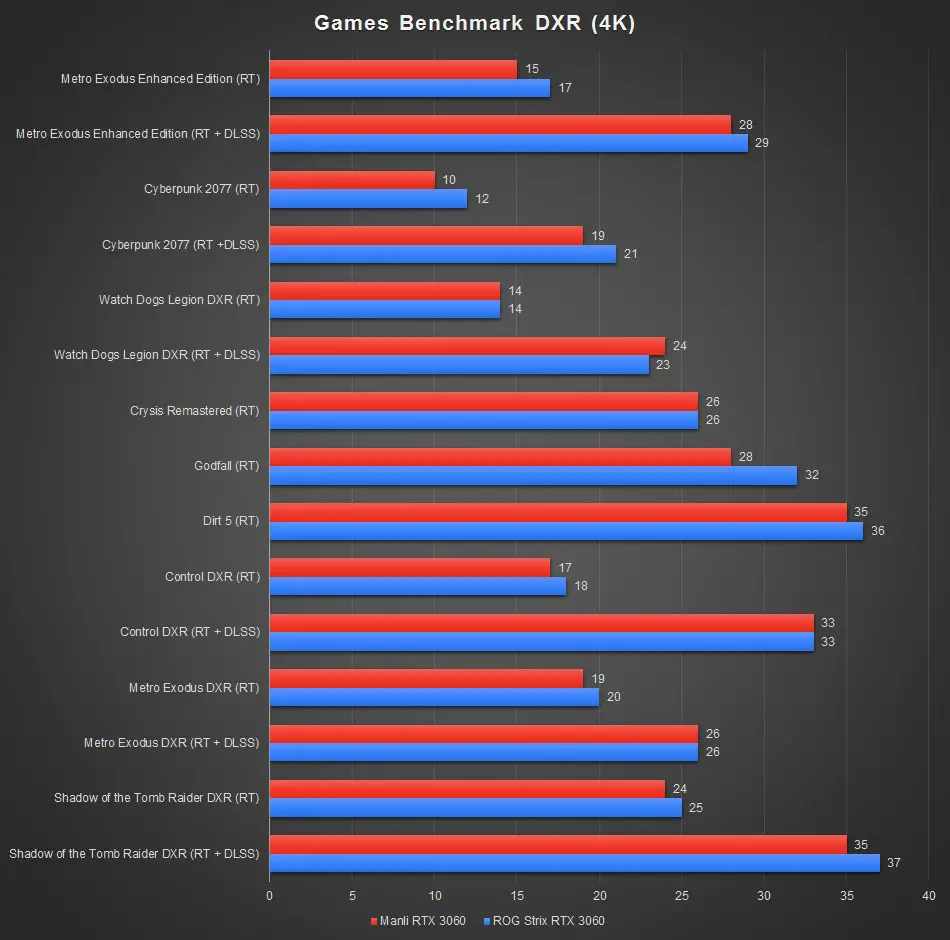

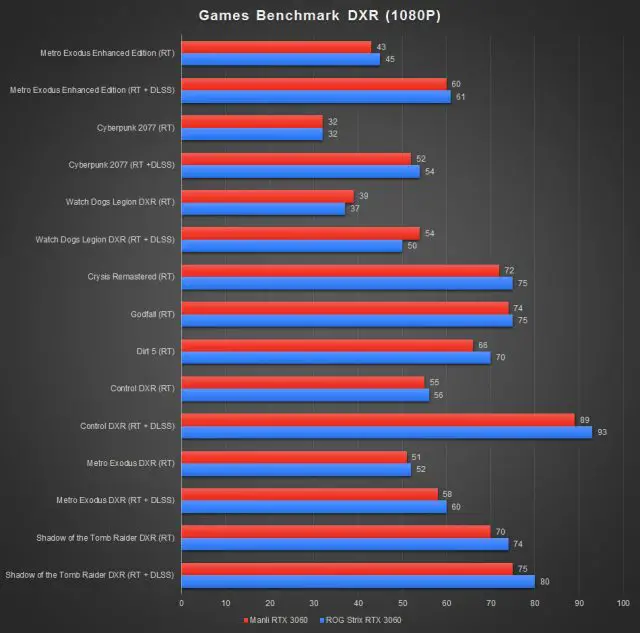

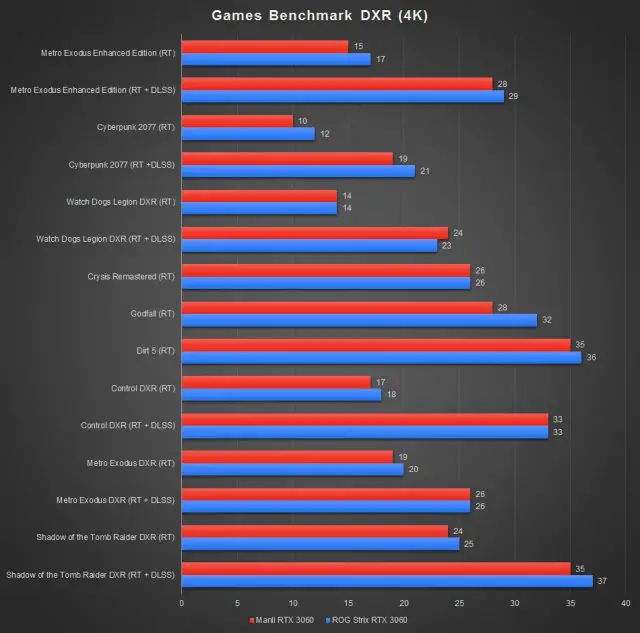

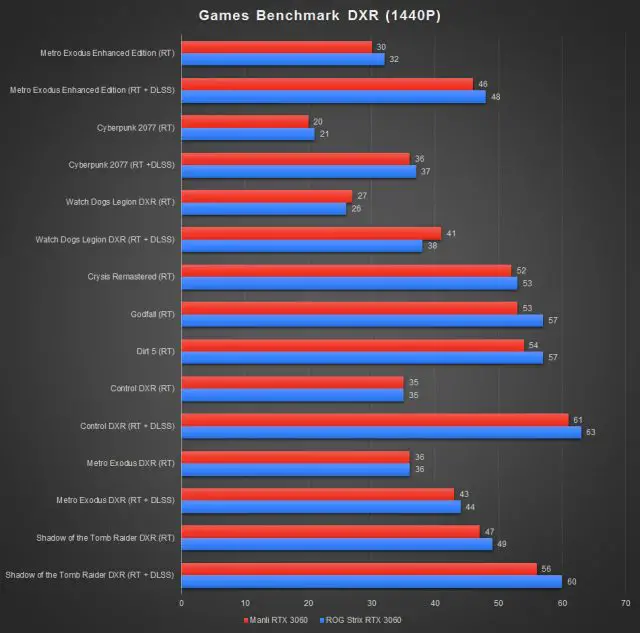

ASUS ROG Strix RTX 3060 Benchmark DXR 1080P a ASUS ROG Strix RTX 3060 Benchmark DXR 1440P a ASUS ROG Strix RTX 3060 Benchmark DXR 4K a

For the ray tracing performance, 1080P is pretty much the highest I would recommend for the RTX 3060. If you’re really pushing it for 1440P, you might be able to pull through with games that have DLSS 2.0 implemented, but 4K is definitely out of the question. Things might be a little different in the future if more game developers are willing to adopt DLSS for their upcoming games, especially DLSS 2.0 which offers a lot more flexibility on the presets as compared to the first-gen DLSS.

Thermals & Power Draw

We have both the ROG Strix RTX 3060 OC Edition and Manli RTX 3060 gone through the same tests with FurMark stress test and long hours gaming session test t

FurMark Load Test Gaming Load Test
ROG Strix RTX 3060 OC Edition 58ºC 56ºC
Manli RTX 3060 68ºC 68ºC

As for the power draw, we’ve noticed that the ROG Strix RTX 3060 OC Edition is drawing a total of 158W during FurMark stress test, slightly higher than the 140W that the Manli RTX 3060 is drawing throughout the same set of tests.

Final Thoughts

Performance-wise, the ROG Strix RTX 3060 OC Edition is an excellent card for 1080P gaming and a reasonable entry option for 1440P gaming. The ray-tracing performance isn’t as impressive as the RTX 3070 at least but you’ll still be able to enjoy a decent gaming experience in both 1080P and 1440P for newer titles that come with DLSS 2.0 that take advantage of the RT and Tensor cores to give you a reasonable performance boost in game.

The cooling performance great and it’s surprisingly quiet even when the card is on full load for a long period of time. Toggling between Performance and Quiet mode doesn’t really affect the performance much. As the highest load temperature recorded for Quiet mode is around 60ºC range, I’d recommend going for Quiet mode if you’re aiming to keep the noise level as low as possible.

Will I recommend the ROG Strix RTX 3060 OC Edition? Well, probably, if the price is deemed reasonable in the near future. The retail price of the ROG Strix RTX 3060 OC Edition is still ultra-expensive at this point, so if you’re not in a rush for an upgrade, I’d recommend waiting for just a little longer to see if the GPU price is indeed going down as most tech media claimed.
