Unboxing & Review: GALAX GTX 970 HOF 1
GALAX (previously known as Galaxy or Galaxytech) isn’t something new to the local Malaysian enthusiasts. After years of absence, their return to the local market is indeed a welcomed surprise to the enthusiasts, especially to those who fancy the Hall Of Fame edition cards (HOF) which are renowned for it’s luxurious design and high overclocking potential.
Special thanks to GALAX Malaysia in provision of the GALAX NVIDIA GeForce GTX 970 HOF for today’s review. Priced at RM1649, this HOF GTX970 isn’t going to be your ordinary wallet friendly card to start with. Still, let us put a side the price tag (for now) and move on with the review to see what kind of performance we can expect from the Hall of Fame.

Specifications
Model Name
GALAX NVIDIA GeForce GTX 970 HOF
Graphics Engine
 NVIDIA GeForce GTX 970
Bus
Standard
PCI Express 3.0
Video Memory
4GB GDDR5 (3.5G + 0.5G)
Engine Clock
GPU Boost Clock: 1380 MHz
GPU Base Clock: 1228 MHz
CUDA Core
1664
Memory
Clock
7010 MHz
Memory Interface
256-bit
Interface
DVI Output : Yes x 1 (DVI-I)
HDMI Output : Yes x 1 (HDMI 2.0)
Display Port : Yes x 3 (Regular DP)
HDCP Support : Yes
Accessories
HOF Door hanger, Driver CD, User Manual, 2 x 4-pin Molex to 8-pin PCIe Y adapter, DVI-VGA adapter
Software
Dimensions
 308mm x 129.1mm
x 49mm
Packaging
Unboxing & Review: GALAX GTX 970 HOF 3
The packaging comes in a clean and simple design that doesn’t look very fancy, but enthusiasts will definitely recognize the HOF emblem in an instant.
Unboxing & Review: GALAX GTX 970 HOF 5
There isn’t much to point out at the back of the packaging but we must say that’s a really clean design!
Accessories
Unboxing & Review: GALAX GTX 970 HOF 7
The included accessories are: a door hanger, 2 x 4-pin molex to 8-pin PCIe Y-adapter, DVI-VGA adapter, user manual and a driver CD.
Closer Look
Unboxing & Review: GALAX GTX 970 HOF 9
The lavish feel of the HOF edition card is too obvious for one to not notice it – triple fan design might be common but you don’t get to see a white-silver triple fan cooler often, especially not like the ones on HOF edition cards.
Unboxing & Review: GALAX GTX 970 HOF 11
From the side we can see not only that the shroud in white, but also the PCB of the card itself which is a one-of-a-kind trait of the HOF edition card.
Unboxing & Review: GALAX GTX 970 HOF 13
Output options are pretty common, DVI-I, 3 x DisplayPort and HDMI port but we find that GALAX has decided to sacrifice the rear exhaust vent for a better (or is it?) by installing a switch that will put the cooling fans to its maximum speed when activated.
Unboxing & Review: GALAX GTX 970 HOF 15
SLI fingers for up to 4 GPU under SLI configuration is pretty common for a GTX970.
Unboxing & Review: GALAX GTX 970 HOF 17
At the side of the shroud, you’ll find the Hall Of Fame wording that glows white when the card is powered up, though it’s only for aesthetics purposes.
Unboxing & Review: GALAX GTX 970 HOF 19
The only GTX970 that we’ve came upon so far that requires 2 x 8-pin PCIe power connector to power up, that extra power is needed for some extra performance when it comes to overclocking and that’s what the Hall of Fame is all about.
Unboxing & Review: GALAX GTX 970 HOF 21
At the back of the card you’ll find a metal backplate installed, a common approach taken by 3rd party vendors to reduce / prevent / overcome the PCB sagging issue. Instead of a black metal backplate like other renowned vendors i.e: ASUS, Gigabyte, MSI, etc, the GTX970 HOF ships with a brushed aluminum backplate that matches the HOF theme very well.
Performance Overview
Test
Rig Configuration
CPU
Cooler
Corsair H100i
CPU
Intel
Core i7 4790K
Motherboard
ASUS
Maximus Hero VII
Memory
Kingston HyperX Savage 16GB
Primary
Hard Drive
Plextor M6e Black Edition
Power
Supply
BitFenix
Fury 550G
Chassis
Vector Bench Case
We conducted our test by installing the GALAX Nvidia GeForce GTX 970 HOF to our test bench as above and each benchmark is conducted in a room of about 30°C ambient temperature.
Performance, Overclocking and Temperature
We ran a few graphically demanding games and synthetic benchmark in our possession at the resolution of 1920 x 1080, 4x Anti-aliasing. Due limited voltage adjustment, we’ve only managed to push the GALAX GTX970 HOF to its highest stable clock that is able to complete each game benchmark with the following values:
  • Maximum boost clock of 1515 MHz
  • 8205 MHz on the memory clock
  • 1.2V on the voltage for GPU
Unboxing & Review: GALAX GTX 970 HOF 23

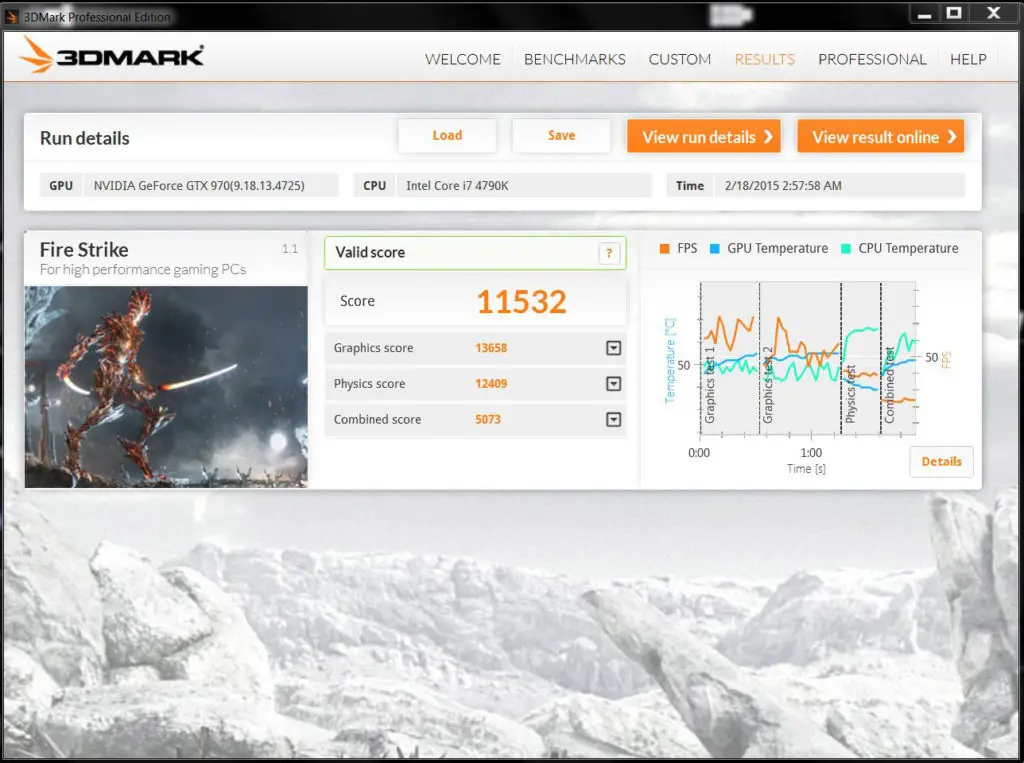

The Fire Strike score is pretty high among the GTX970 available, even without any overclocking involved.
Unboxing & Review: GALAX GTX 970 HOF 25
After a minor boost to the clock, we’re able to achieve a slightly higher score of 200.

Unboxing & Review: GALAX GTX 970 HOF 27
The overclocking result is pretty impressive as we’re able to get an extra 135MHz on the GPU clock and 1195 MHz on the memory clock, especially for the GPU clock which was initially factory overclocked to 1380 MHz (highest factory overclocked GTX 970 we’ve came across so far). The gain in each synthetic and games benchmark is listed as below:
  • Unigine Valley:  4%
  • Unigine Heaven: 5.8%
  • Tomb Raider:  11.3%
  • Battlefield 3:  12.3%
  • Battlefield 4:  8.3%
  • Crysis 3:  14.9%
  • Far Cry 3:  13%

Verdict
The GALAX GTX 970 HOF Comes out of the box with 1380 MHz on the GPU clock, the highest GPU boost clock among all the GTX970 we’ve ever came across. Although hitting 1515 MHz is only a 9.8% gain, it’s still among the highest clock speed we’ve achieved on a GTX970. A faint buzzing can be heard when the card is on full load but this has been a known issue on some GTX980 and GTX970. Still, it doesn’t really affect much of the gaming performance.
The fan switch is very handy when you wanted to ramp up the fan speed; instead of relying on software to control it, the switch allows you to ramp up the fans with just a simple click. When operating at normal speed, idle temperature is around 40°C and peaked at 80°C on full load. When we ramped up the fan to full speed, idle temperature dropped to 37°C and load temperature dropped to 78°C.
Compared to other GTX970 that we’ve came across, the GALAX GTX970 HOF is priced the highest so far at RM1649. While the GALAX GTX970 HOF probably isn’t the first choice for those with limited budget, we would still recommend it to those who fancies it’s high clockspeed and overclockability.
Pros
  • Lavishly designed
  • Very high clockspeed
  • Decent overclocking capability
  • Comes with a metal backplate for that extra protection against PCB sagging
  • One click fan boost to ramp up your fan speed

Cons
  • Hefty price tag
  • Overclocking is limited by NVIDIA’s Green Light Program
  • Faint buzzing noise can be heard when the card is on full load
Unboxing & Review: GALAX GTX 970 HOF 29
