MSI GeForce GTX 1060 Gaming X 6G Review 1
AIB partners are seen to offer their own custom design of the GPU equipped with custom coolers, custom PCB design, metal backplate as soon as NVIDIA announced the availability of both its GTX 1060 6GB and 3GB variant to go up against the Radeon RX 480 from the red camp. As one of NVIDIA’s AIB partner, MSI too is offering several different variants of the GPU such as the Gaming series, Sea Hawk series, Aero series and Armor series that comes in different designs, cooling solutions and clock speeds.

Many thanks to MSI Malaysia, we managed to secured a unit of the GeForce GTX 1060 Gaming X 6G for our review today. Unlike the GTX 1070 and GTX 1080 that comes available in 3 different model of Gaming, Gaming X and Gaming Z, MSI offers only 2 type of model for its GTX 1060, which is the Gaming and Gaming X.
(The MSI GeForce GTX 1060 Gaming X 6G is available at RM1499)

Specifications
Graphics Processing
GeForce GTX 1060
Core Clock
1809 MHz / 1594 MHz (OC Mode)
1784 MHz / 1569 MHz (Gaming Mode)
1708 MHz / 1506 MHz (Silent Mode)
Memory Clock
8108 MHz (OC Mode)
8008 MHz (Gaming Mode)
8008 MHz (Silent Mode)
Process Technology
16 nm
Memory Size
6 GB
Memory Bus
192 bit
Card Bus
PCI-E 3.0 x 16
Memory Type
GDDR5
DirectX
12
OpenGL
4.5
PCB Form
ATX
Digital max resolution
7680×4320 (requires 2*DP1.3 connectors)
Analog max resolution
4096×2160
Multi-view
4
Output
Dual-link DVI-D *1
HDMI-2.0b*1 (Max Resolution: 4096×2160 @60 Hz)
Display Port-1.4 *3 (Max Resolution: 7680×4320 @60 Hz)
Recommended PSU
400W
Power Connectors
8 pin*1
Card size
H=39 L=277 W=140 mm
The Box
MSI GeForce GTX 1060 Gaming X 6G Review 3MSI GeForce GTX 1060 Gaming X 6G Review 5
The MSI GeForce GTX 1060 Gaming X 6G ships in the usual cherry red packaging with the actual card depicted at the front of the box, along with some of its features i.e TwinFrozr VI cooling technology, RGB LED, Gaming App software, highlighted at the back of the box.
Accessories
MSI GeForce GTX 1060 Gaming X 6G Review 7
Accessories wise, the GeForce GTX 1060 Gaming X 8G is supplied with a drivers CD, Quick User’s Guide and stickers only.
The GTX 1060 Gaming X 6G
MSI GeForce GTX 1060 Gaming X 6G Review 9

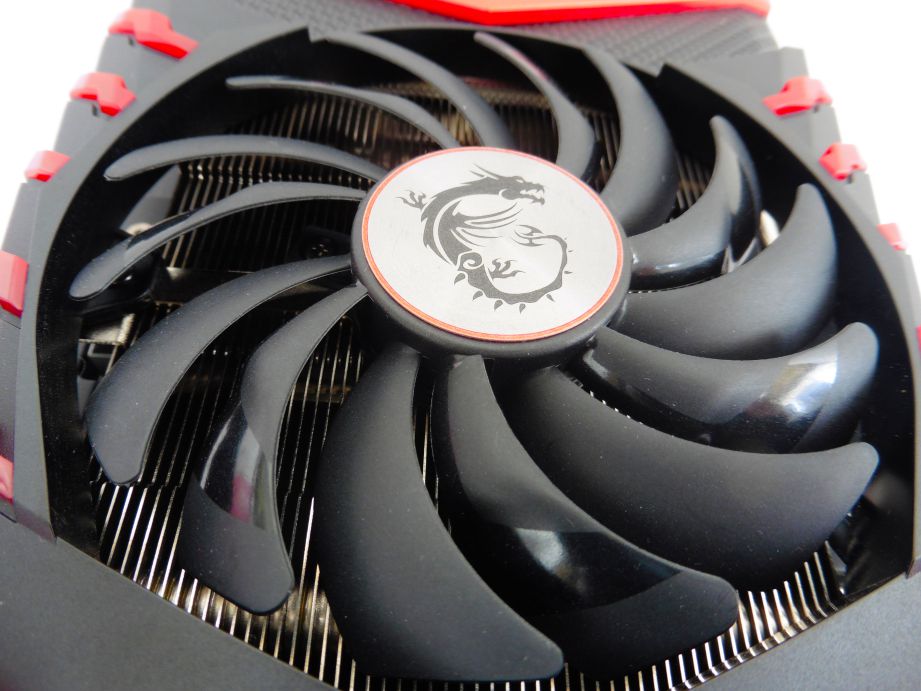

Similar to other of MSI’ Gaming series graphics cards, the GeForce GTX 1060 Gaming X 6G too is equipped with MSI’ latest Twin Frozr VI cooler; TORX 2.0 Fan design with double ball bearing that operates silently and capable of generating 22% more air pressure.
MSI GeForce GTX 1060 Gaming X 6G Review 11MSI GeForce GTX 1060 Gaming X 6G Review 13
Underneath the shroud is the SuperSU heatsink that utilizes 6 copper heat pipes with 8mm thickness to maximize the cooling performance when paired with the TORX 2.0 fans.
MSI GeForce GTX 1060 Gaming X 6G Review 15MSI GeForce GTX 1060 Gaming X 6G Review 17

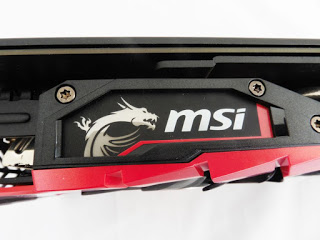

LED can be controlled individually by choosing any of the animation effects available in the MSI Gaming App, ranging from responding to your game sounds or music to steady light, breathing and flashing. The LEDs on the red linings of the shroud however, will only glow in red.
MSI GeForce GTX 1060 Gaming X 6G Review 19
The GTX 1060 is probably one of the best power efficient consumer grade graphics card today, as according to NVIDIA, it is capable of delivering performance that can go on par with a GTX 980, features a low TDP of 120W and requires only a 400W to operate.
MSI GeForce GTX 1060 Gaming X 6G Review 21MSI GeForce GTX 1060 Gaming X 6G Review 23

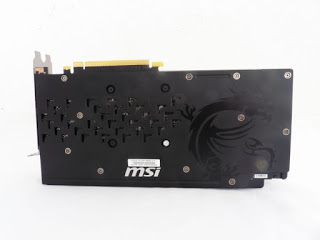

At the back of the card, you’ll find a metal backplate with a matte finish, glossy MSI Gaming Dragon printed on. The metal backplate here does pretty much the same as most metal backplate for graphics card, which is to enhance the overall rigidity of the card to prevent PCB sagging that usually occurs on graphic cards with a large heat sink. There’s also an extra metal bracket that is attached to the mounting of the heat sink itself, which helps to add more rigidity to the card for extra protection.
MSI GeForce GTX 1060 Gaming X 6G Review 25
The display output option is pretty common nowadays, 1 x DVI-I connector, 3 x DisplayPort and 1 x HDMI port.
Performance Test
Test Rig Configuration
CPU Cooler
Raijintek Triton 240
CPU
Intel Core i7 4790K @4.6GHz
Motherboard
ASUS Maximus Hero VII
Memory
G.Skill TridentX 2400MHz
Primary Hard Drive
Intel 520 series 240GB
Power Supply
Be Quiet! Straight Power 10 600W
Chassis
Vector Bench case

We mounted the GeForce GTX 1060 Gaming X 6G on our test bench as above and each and every benchmark is conducted in a room of about 30C° ambient temperature.

Performance

We ran a few graphically demanding games and synthetic benchmarks in our possession on a selected settings at 1080p, which is considered as high for much of our test as usual.The final result of each benchmark is presented in the form of the graph below:
MSI GeForce GTX 1060 Gaming X 6G Review 27
Performance Comparison With NVIDIA GeForce GTX 1060 6G Founders Edition
We’ve done a performance comparison with a Founders Edition of the GeForce GTX 1060 and the result of the clash between the two beasts of a card is as following:
MSI GeForce GTX 1060 Gaming X 6G Review 29
Overclocking
We ran the same graphically demanding games and synthetic benchmark on 1080p with the highest achievable clock speed for both its memory and GPU that is stable enough to be able to complete each benchmark with the following values:
  • 133MHz raise on the GPU core clock
  • 536MHz raise on the memory clock
  • Extra 12% gain on the power
That isn’t much due to the card has been factory overclocked by MSI, but we managed to hit a beefy 2103MHz GPU clock speed on boost during our benchmark session.
Performance Comparison With NVIDIA GeForce GTX 1060 6G Founders Edition

We’ve done a performance comparison with a Founders Edition of the GeForce GTX 1060, both overclocked and we’re seeing a quite near results as following:
MSI GeForce GTX 1060 Gaming X 6G Review 31
Temperature
Temperature wise, the TwinFrozr VI cooler is doing its job very well as we’ve observed a very decent temperature record of 42°C during idle and 66°C on load while running on default clock speed when the card is stressed with the FurMark burn-in test for an hour. Bumping up the GPU core clock with an extra 133 MHz results in a slight increase in temperature, with 68°C as the peak temperature for the FurMark burn-in test.
Verdict
Just like the GTX 1060 Founders Edition, the MSI GeForce GTX 1060 Gaming X 6G is one impressive graphics card that is capable of delivering performance that goes nearly on par with the previous generation Maxwell GTX 980.
Gaming on the GTX 1060 Gaming X 6G alone is enough to satisfy most users, and if you’re looking for more performance out of the card, raising the  GPU clock by a mere 133MHz will give you a juicy 2103MHz boost clock that will give you an extra 10% boost on most of the AAA titles out there. Of course, the GTX 1060 alone has a lot more unexplored potential which can be unlocked via custom BIOS from the enthusiasts community, but we don’t recommend flashing your card unless you are well aware of the risks of flashing your graphics card.
For its cooling performance, we’d say that MSI did a really good job with its TwinFrozr VI. The peak temperature achieved on the GTX 1060 Gaming X is up to 10°C cooler than a GTX 1060 Founders Edition and the fan is almost inaudible from 1m distance even when it’s spinning at the highest rpm. This alone, is a worthy option to look into if you’re looking for a decent GTX 1060 for your silent gaming rig.
When it comes to the price, MSI is one of NVIDIA’s AIB partner to have the most expensive model alongside with ASUS, Gigabyte and EVGA. Then again, comparing its cooling performance alone against some of the lower cost alternatives, we’d say that the RM 1499 paid is actually reasonable if that’s the quality you’re looking for and given that you can stretch your budget a little further for a better option.
Pros
  • Solid build quality and good aesthetics
  • Good overclocking headroom
  • Excellent cooling performance
  • Low TDP of 120, can be operated with a 400W power supply
  • Near silent operation even when the fan spins at its maximum speed
Cons
  • Costly
  • Lack of SLI support
MSI GeForce GTX 1060 Gaming X 6G Review 33MSI GeForce GTX 1060 Gaming X 6G Review 35
