Unboxing

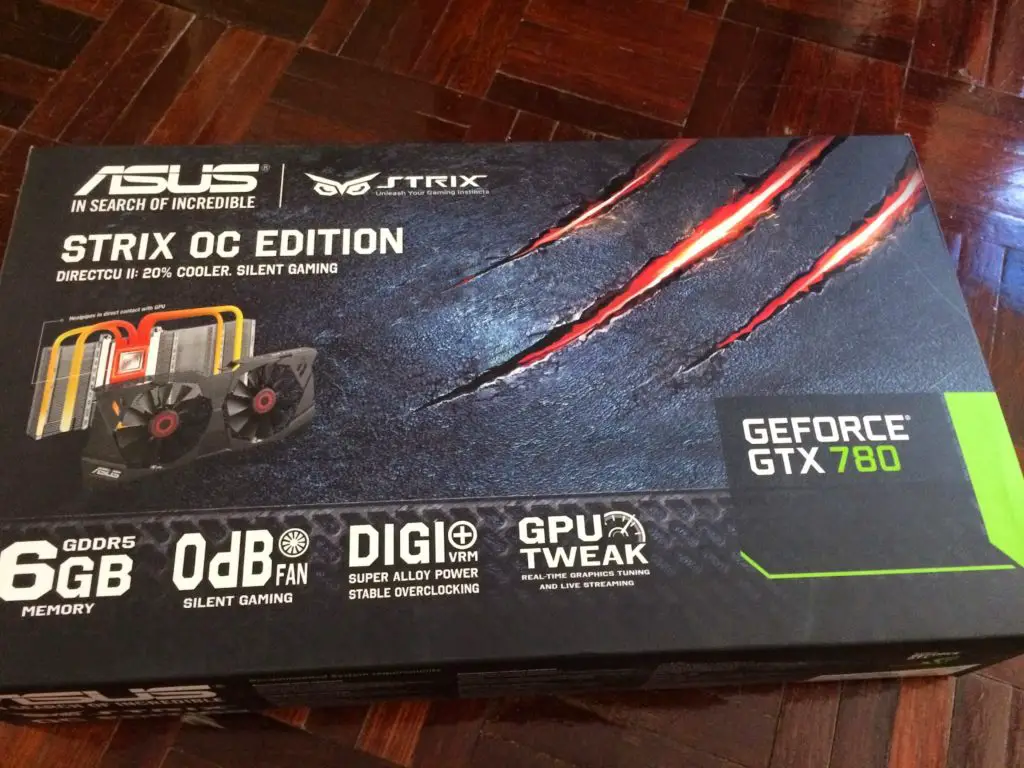

The retail packaging is pretty much similar to the previous DirectCU II models, especially for the notable ripped metal design. You’ll get a preview of the STRIX cooler at the middle left of the box, looks pretty much the same as the other directCU II coolers except for the shroud and fans that comes with stickers the resembles a pair of glowing red eyes of an owl. The features of the card can be clearly seen across the bottom of the box:
- 6GB GDDR5 Memory
- 0 dB Fan silent cooling solution
- DIGI+ VRM and Super Alloy Power for stable overclocking
- GPU Tweak for overclocking
Aside the small image of how the card is going to look like, there’s brief but detailed description of the ASUS STRIX GTX 780’s prominent features printed at back of the box as well. Similar to any graphics card from ASUS, the ASUS STRIX GTX 780 comes with a limited 3 year warranty – as stated at the bottom right of the box.
Accessories
The ASUS STRIX GTX 780 comes with a user’s guide, driver CD, DVI-I to VGA converter, a Dual 6-pin PCIe to 8-pin PCIe adapter and a piece of SLI cable that seems to be longer than most common SLI cable we’ve seen.

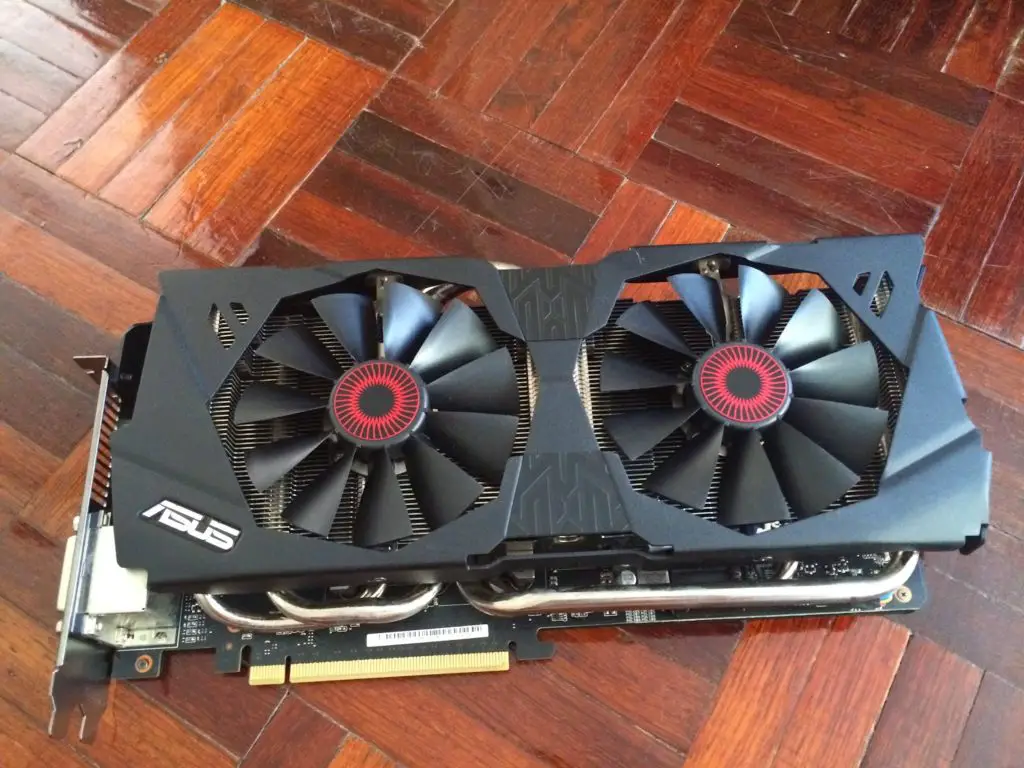

Our first impression of the ASUS STRIX GTX 780? A pair of glowing red eyes. The red stickers represents the pupil with the fan blades represents the iris of the eye of an owl. Feature wise, 0 dB fan technology isn’t what we’re expecting for. Instead of fans that spins silently, ASUS’s came up with a rather odd design where the fan remains stationary when the temperature is below 65°C and will only spins when the temperature hits above 65°C – a little impractical we’d say.

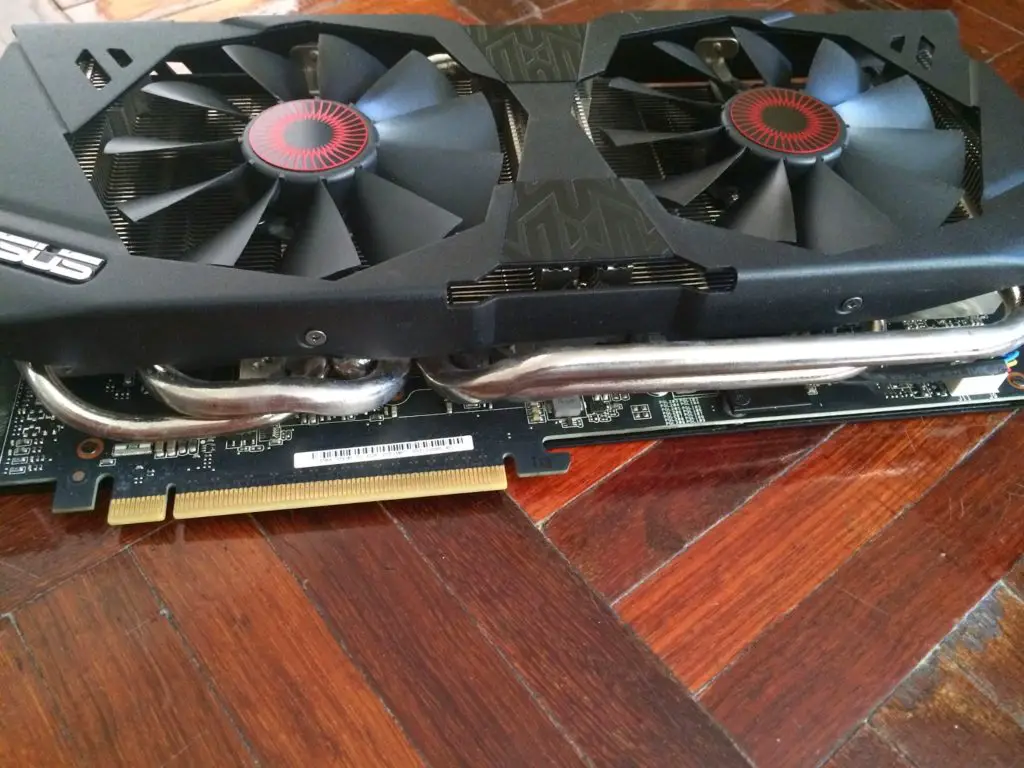

4 shiny nickel plated copper heatpipes can be seen at the side of the card, these heatpipes plays a very important role in heat dissipation.
The ASUS STRIX GTX 780 is powered by a 6-pin PCIe and 8-pin PCIe power connector.
A quick overview on the DirectCU II cooler, the base of the cooler is made up of 5 pieces of nickel plated copper heatpipes than runs through a total of 53 aluminum fins for optimal heat dissipating performance.

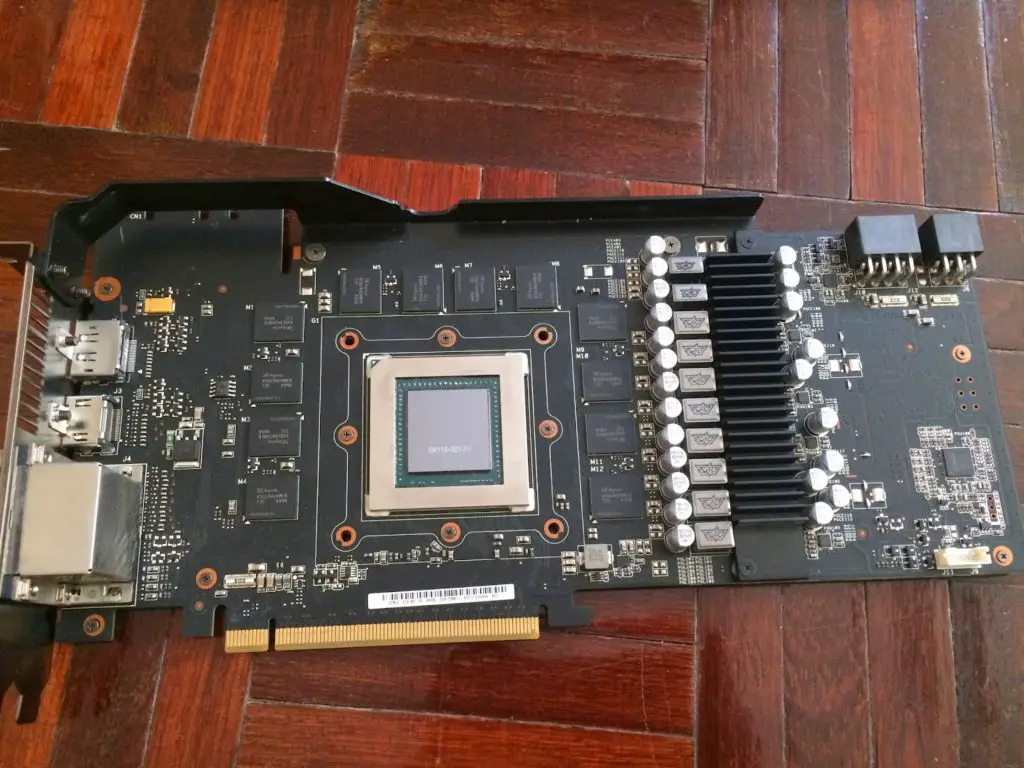

The 10-phase DIGI+ VRM power design with Super Alloy Power technology that comes with ASUS’s custom PCB design that is able to deliver sable power source for overclocking

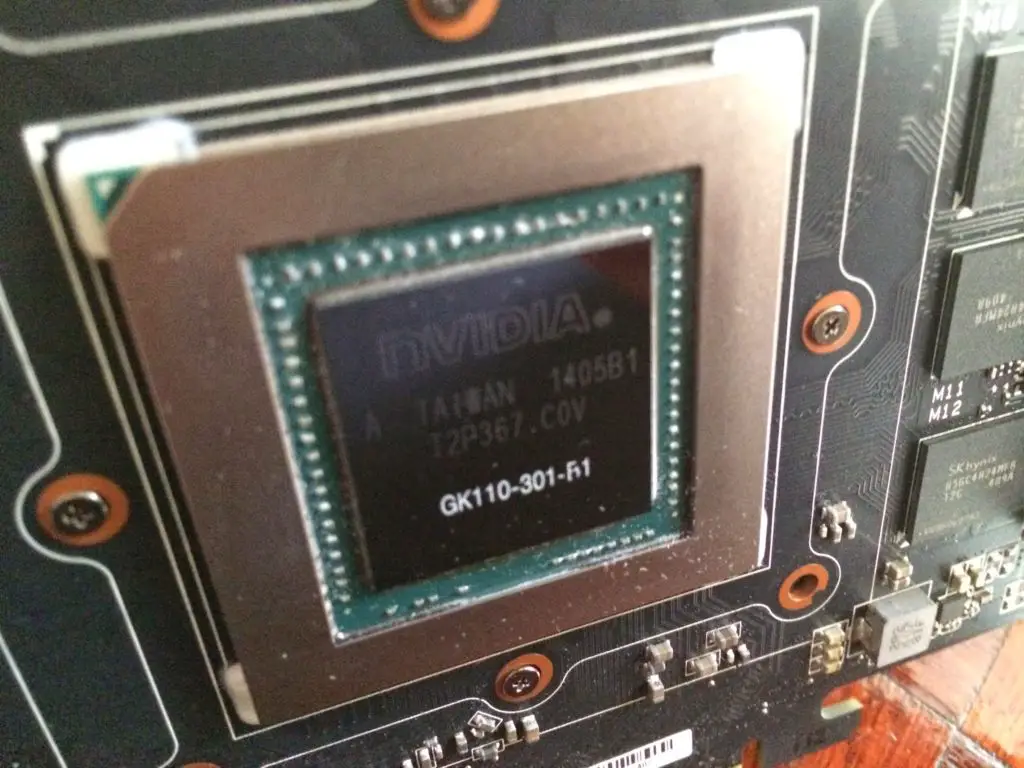

The main component of the card, NVIDIA GK110 that yields 2304 CUDA cores, 192 texture units, 48 ROPs and 384-bit memory interface.

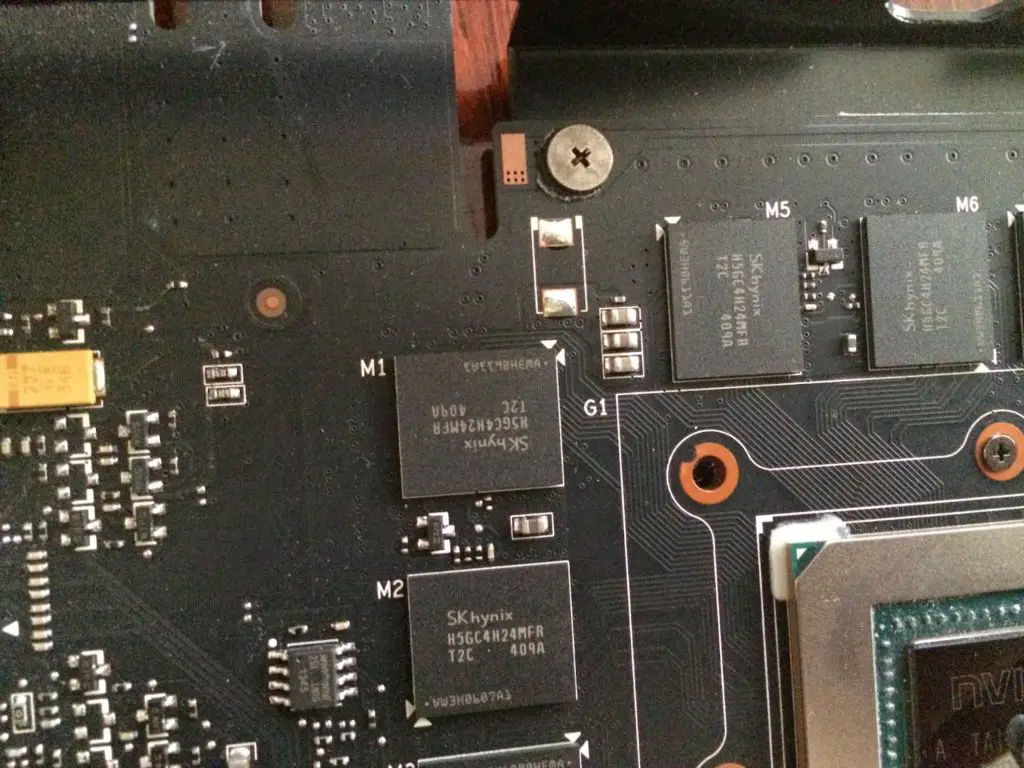

The SK Hynix H5GC4H24MFR is used on the ASUS STRIX GTX 780.
At the bottom of the ASUS STRIX GTX 780, you’ll find an awesome looking backplate that provide extra protection to the card by improving the rigidity of the card itself, reducing the common sagging or PCB bending issue.
SLI fingers for multiple NVIDIA GPU configuration – up to 4 GPU.
The ASUS STRIX GTX 780 comes with a total of 4 output display connector to satisfy your needs for multiple display monitor – DisplayPort, HDMI, DVI-D and DVI-I.
Test Bench Configuration | |
CPU Cooler | Corsair H100i |
CPU | Intel CoreI7 4790K @4.5 GHz |
Motherboard | ASUS Sabertooth Z97 Mark 1 |
Memory | Corsair Vengeance Pro @ 2400MHz |
Primary Hard Drive | Crucial M500 120GB |
Power Supply | SilverStone ST60F-P 600W |
Chassis | Vector Bench Case |
Performance

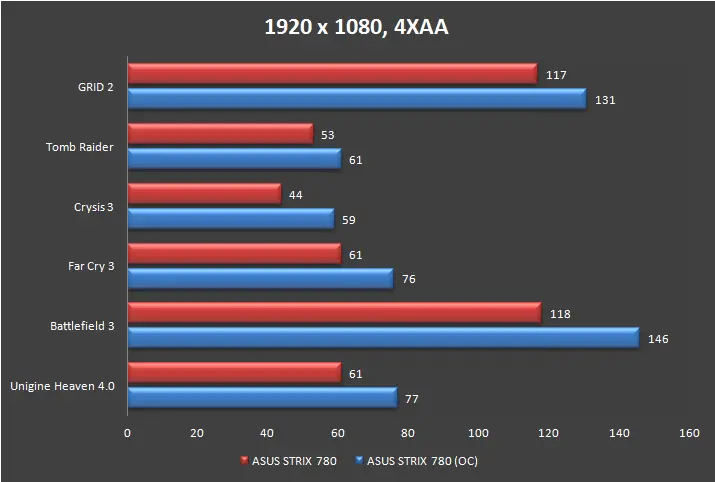

We ran a few graphically demanding games and synthetic benchmark in our possession at the resolution of 1920 x 1080, 4x Anti-aliasing.The final result of each benchmark is presented in the form of the graph below:
- 1168 MHz on the base clock (maximum boost 1254 MHz)
- 7206 MHz on the memory clock
- 1.2V on the voltage for GPU
- GRID 2: 11.9%
- Tomb Raider: 15.1%
- Crysis 3: 34.1%
- Far Cry 3: 24.6%
- Battlefield 3: 23.7%
- Unigine Heaven 4.0: 26.2%
Our final thoughts on the ASUS STRIX GTX 780 would be somewhat an unique experience but the 0dB fan technology is somewhat questionable. The idle temperature is rather high but doesn’t pose any risk of burning the card, but here’s the question; wouldn’t turning down the fan to a speed which is inaudible a better solution compared to having the fan on and off in an annoying loop?
Performance and overclocking wise, we find there’s still plenty of headroom for overclocking as we’re able to achieve a stable overclocking of 1254 MHz on GPU clock and 7204 MHz on the memory clock even though being held back by the limited voltage adjustment set by NVIDIA.
Down to the price tag, the ASUS STRIX GTX 780 is really a good graphics card with excellent overclocking potential but pay RM 2149 only for the silent cooling solution might not be a wise decision as adding a little bit extra of cash could get you something which is far more powerful than a GTX 780, i.e: Leadtek WinFast GTX 780 Ti OC Triple Fan retailed at RM 2399, ZOTAC GeForce GTX780 Ti AMP! Edition retailed at RM 1999.
- Aesthetic appearance
- Factory overclocked
- Use of high quality components with good overclocking potential
- Comes with a metal backplate for enhanced rigidity and protection against PCB sagging
- Able to maintain temperature around 48°C to 50°C at idle without cooling support from fans
- Hefty price tag
- Limited overclocking capability due to NVIDIA’s Green Light Program
