MSI’s GeForce RTX 5080 Expert is a card that instantly caught my attention when it was featured during COMPUTEX 2025. While most high-end GPUs these days go big with flashy RGB and chunky triple-slot designs, this one keeps things clean and functional. It feels like a blend of an NVIDIA Founders Edition and MSI’s own engineering style, with a strong focus on cooling and efficiency.
First Look and Design

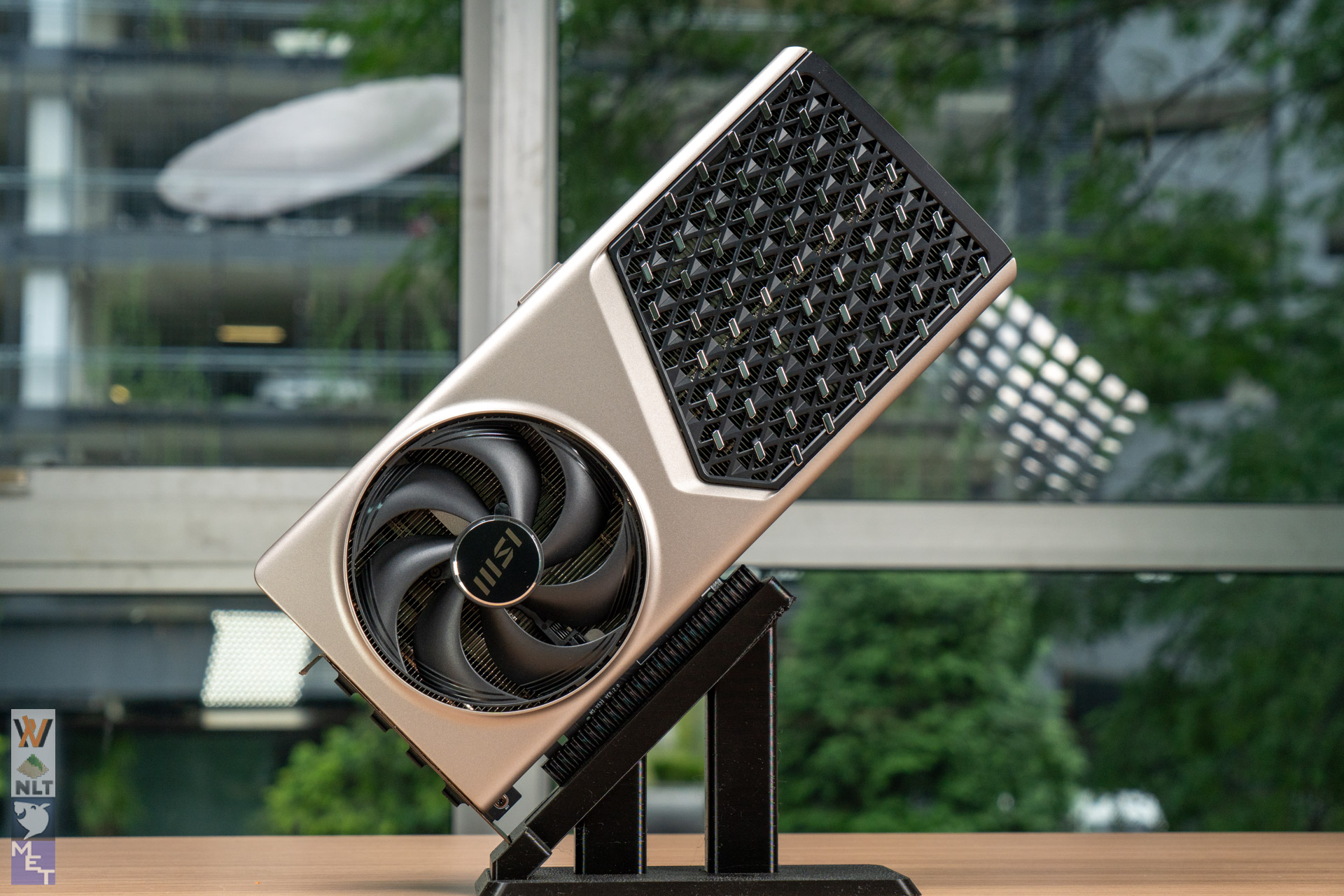

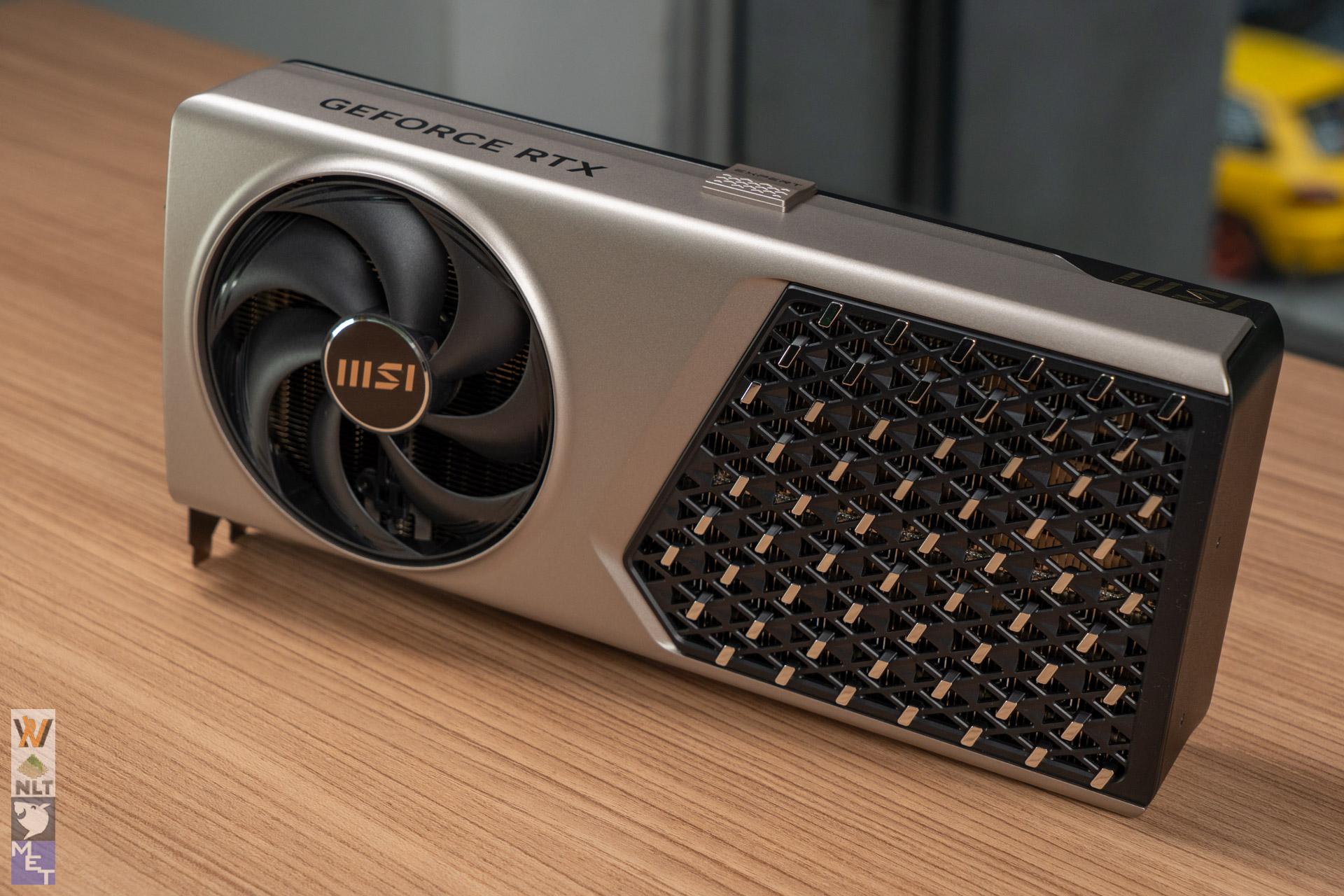

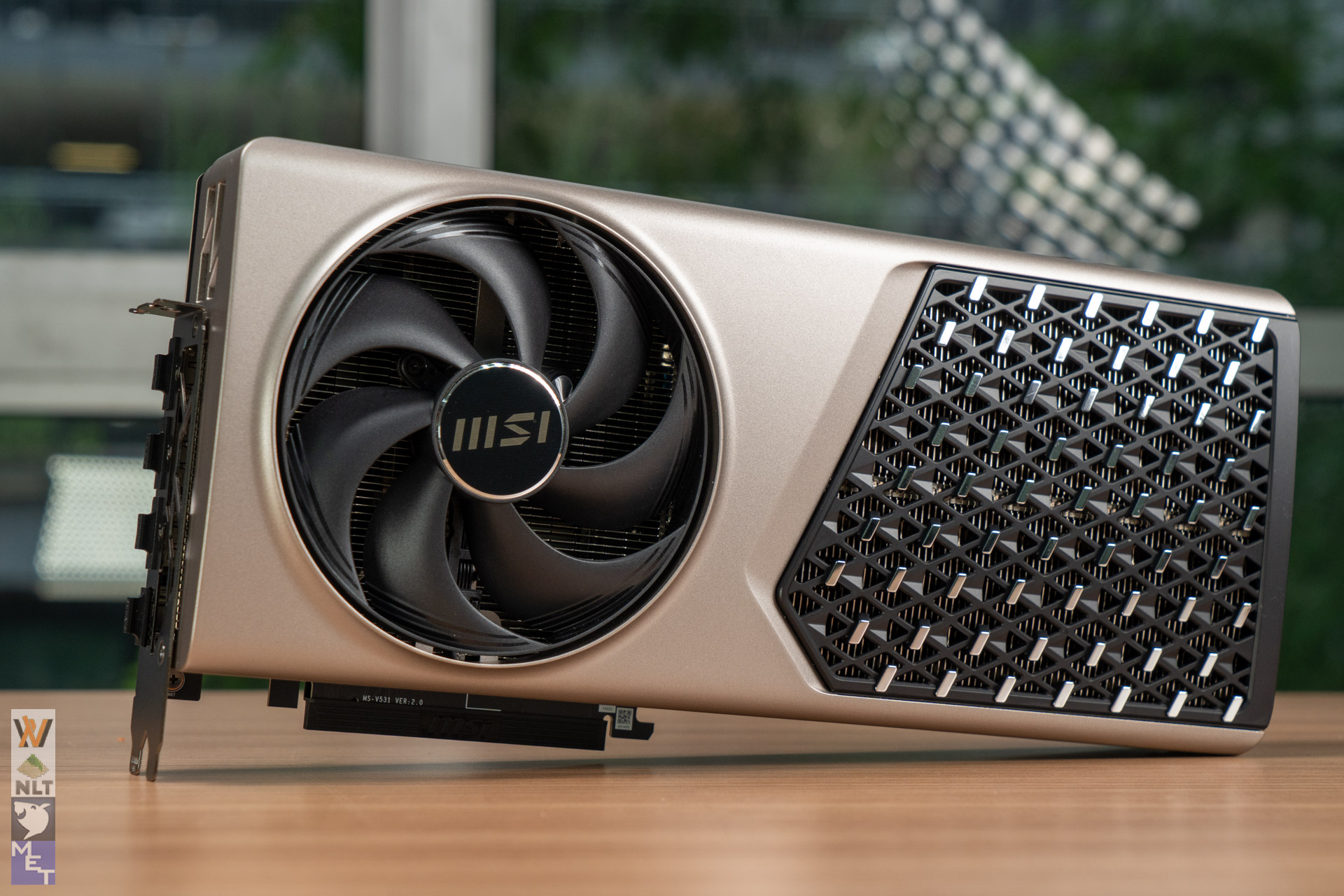

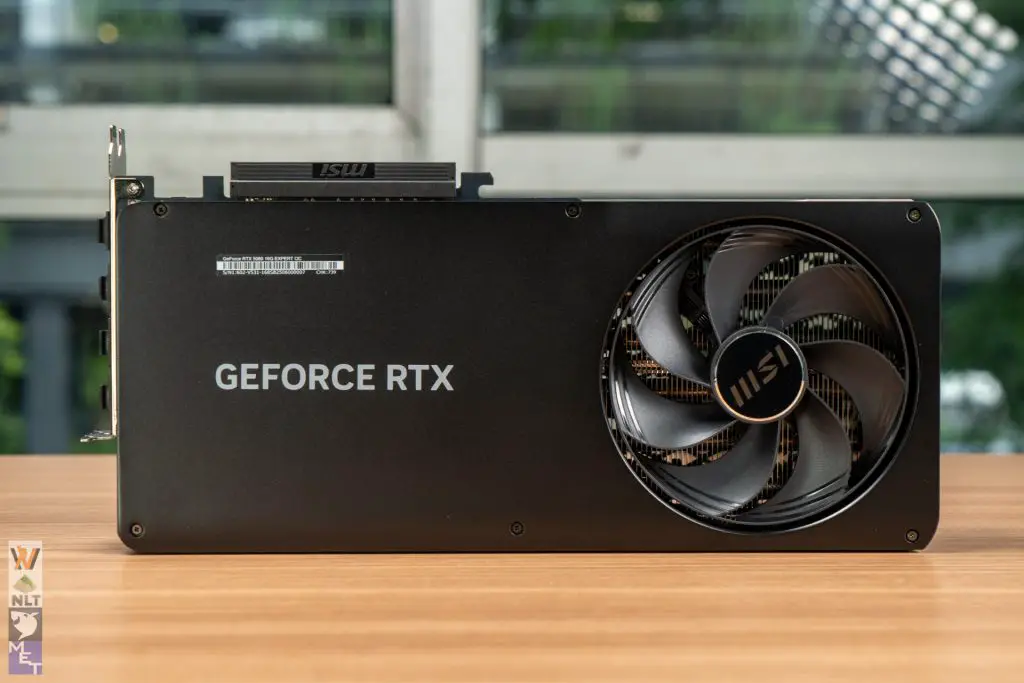

The RTX 5080 Expert comes in a brushed aluminum shroud with a dark industrial grey finish. It has a premium feel in the hand and looks even better inside a build. The structure feels solid, and it comes with a backplate to improve the overall rigidity of the card, which helps prevent sag over time. MSI also includes a piece of GPU support in the box, which is a thoughtful touch.

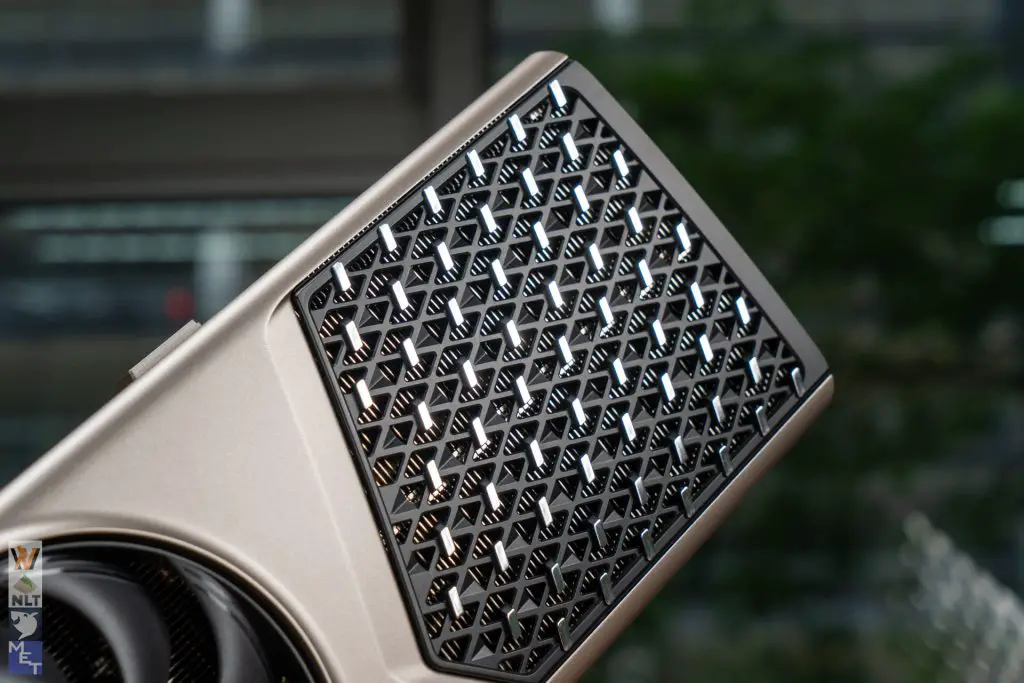

The standout part of the design is the cooling layout. Instead of the usual three-fan setup, MSI uses a two-fan configuration with fans placed at opposite corners of the card, similar to the design seen on the Founders Edition card. Air is drawn in from one side and pushed out through the other, passing through a vapor chamber and square-section heatpipes for even heat distribution.

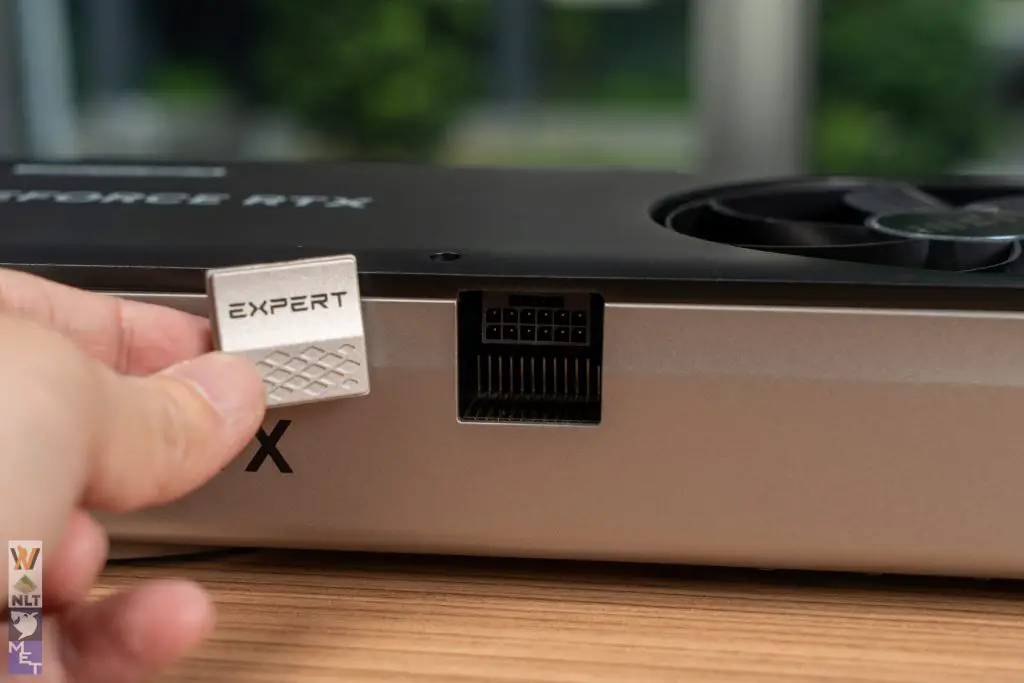

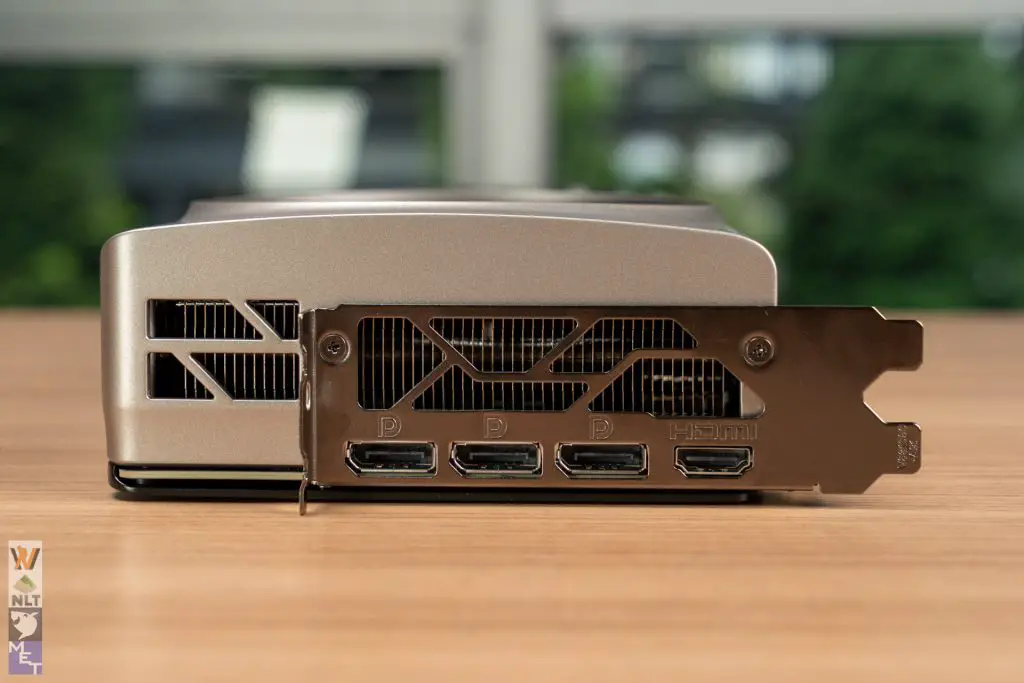

For connectivity, you get three DisplayPort 2.1b ports and one HDMI 2.1b port. The 16-pin power connector is neatly placed for clean cable management. The overall design focuses on a functional, professional look instead of chasing flashy RGB effects, which will appeal to users who prefer a clean and understated build.
Raster Benchmark

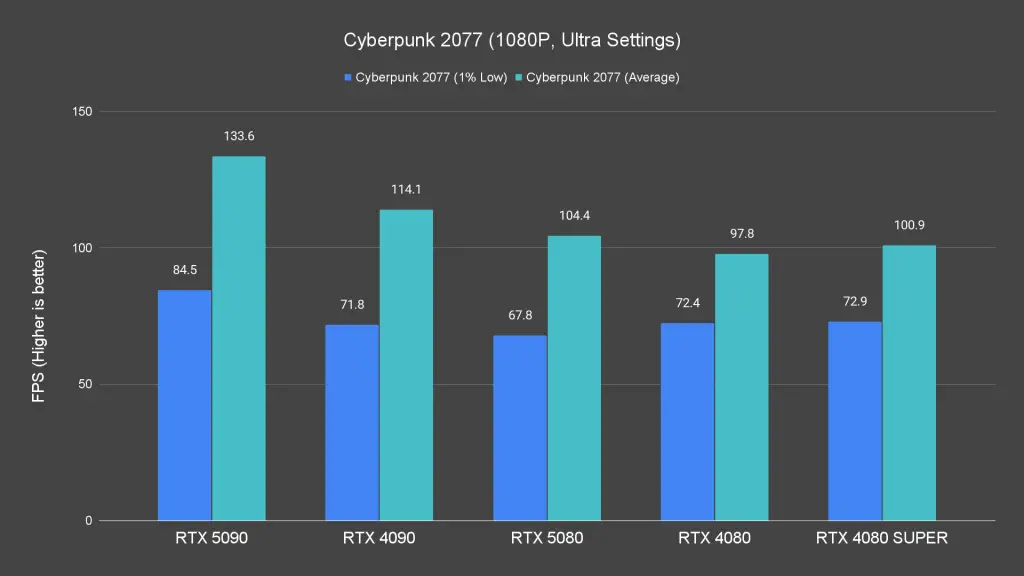

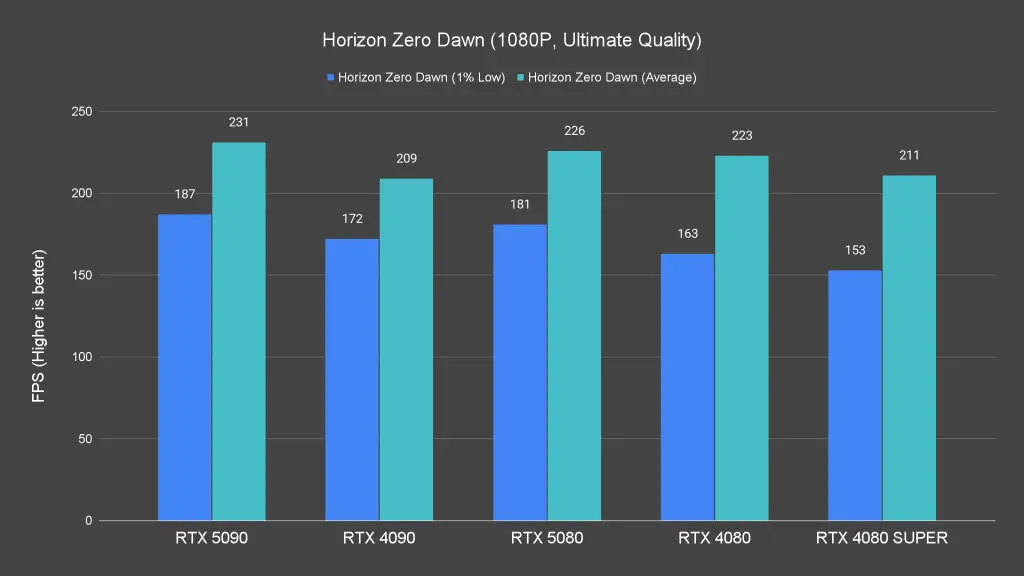

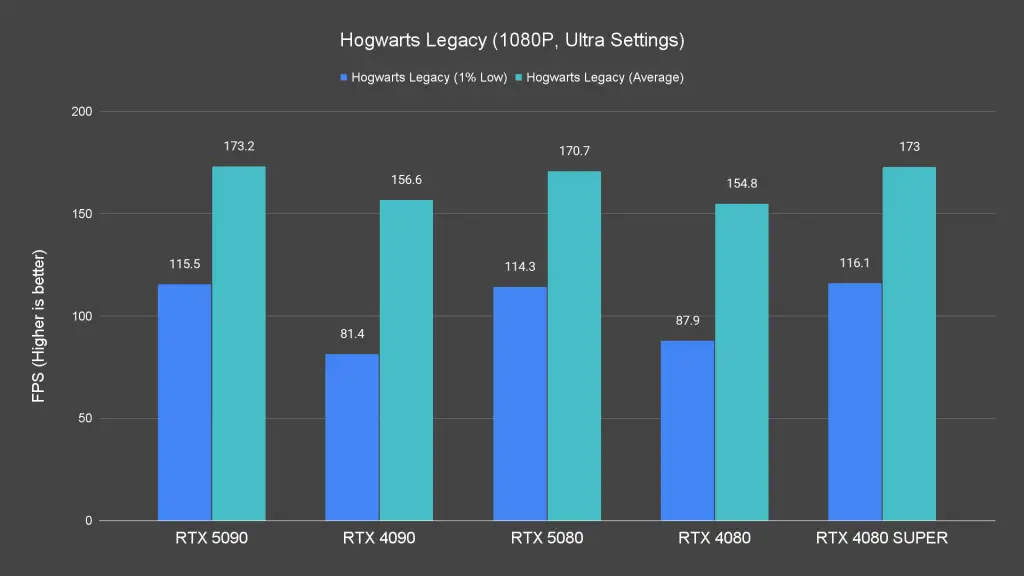

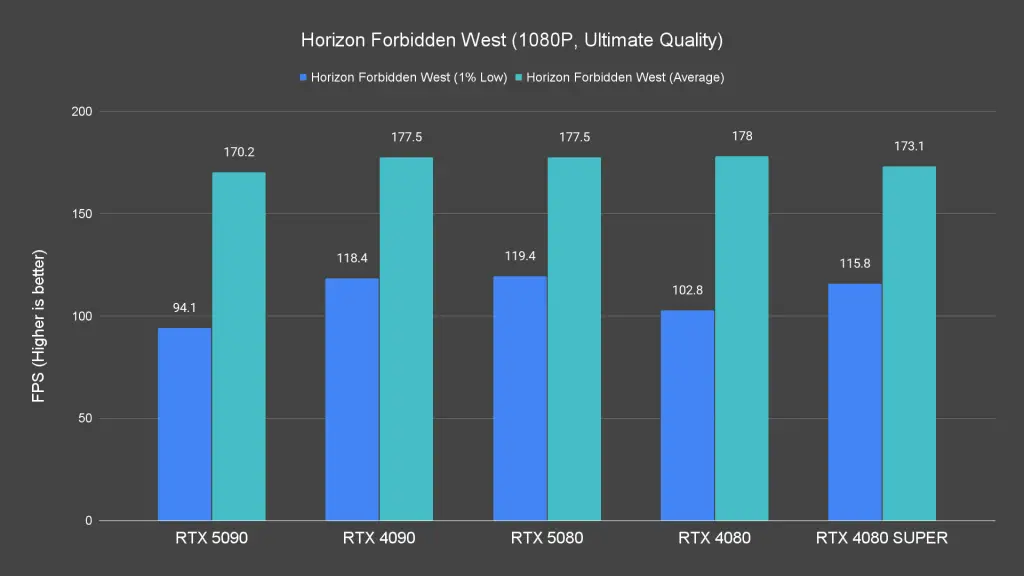

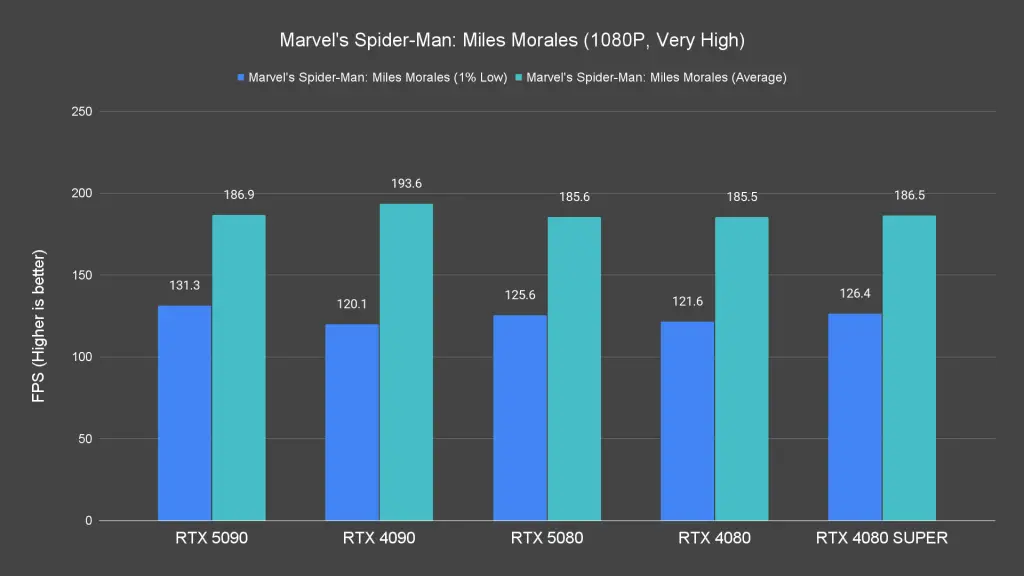

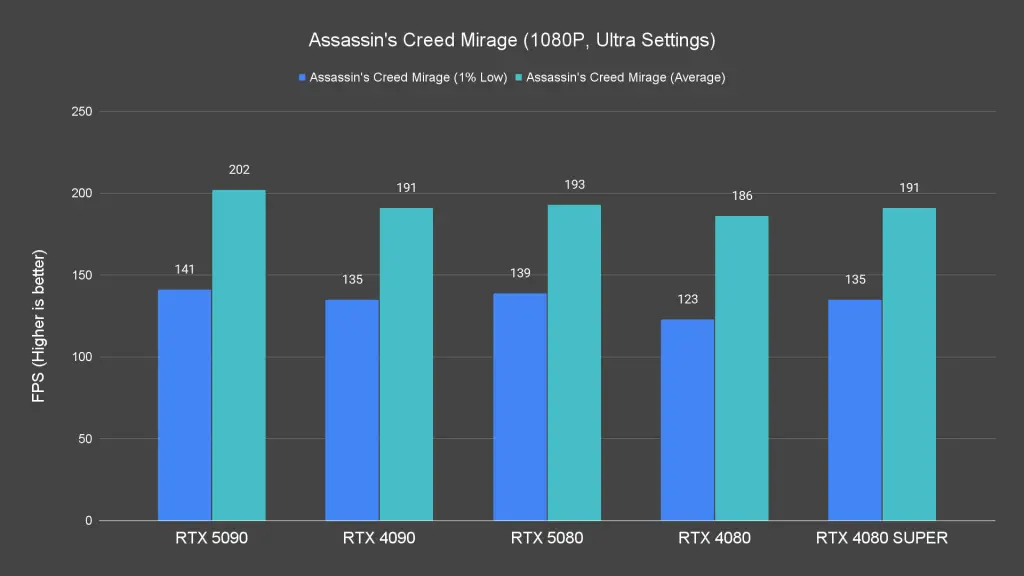

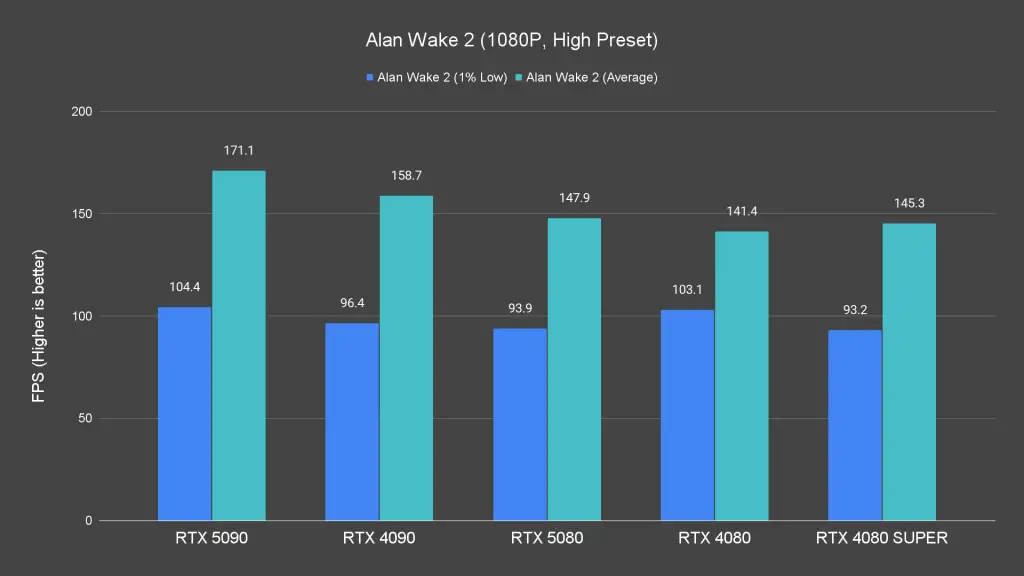

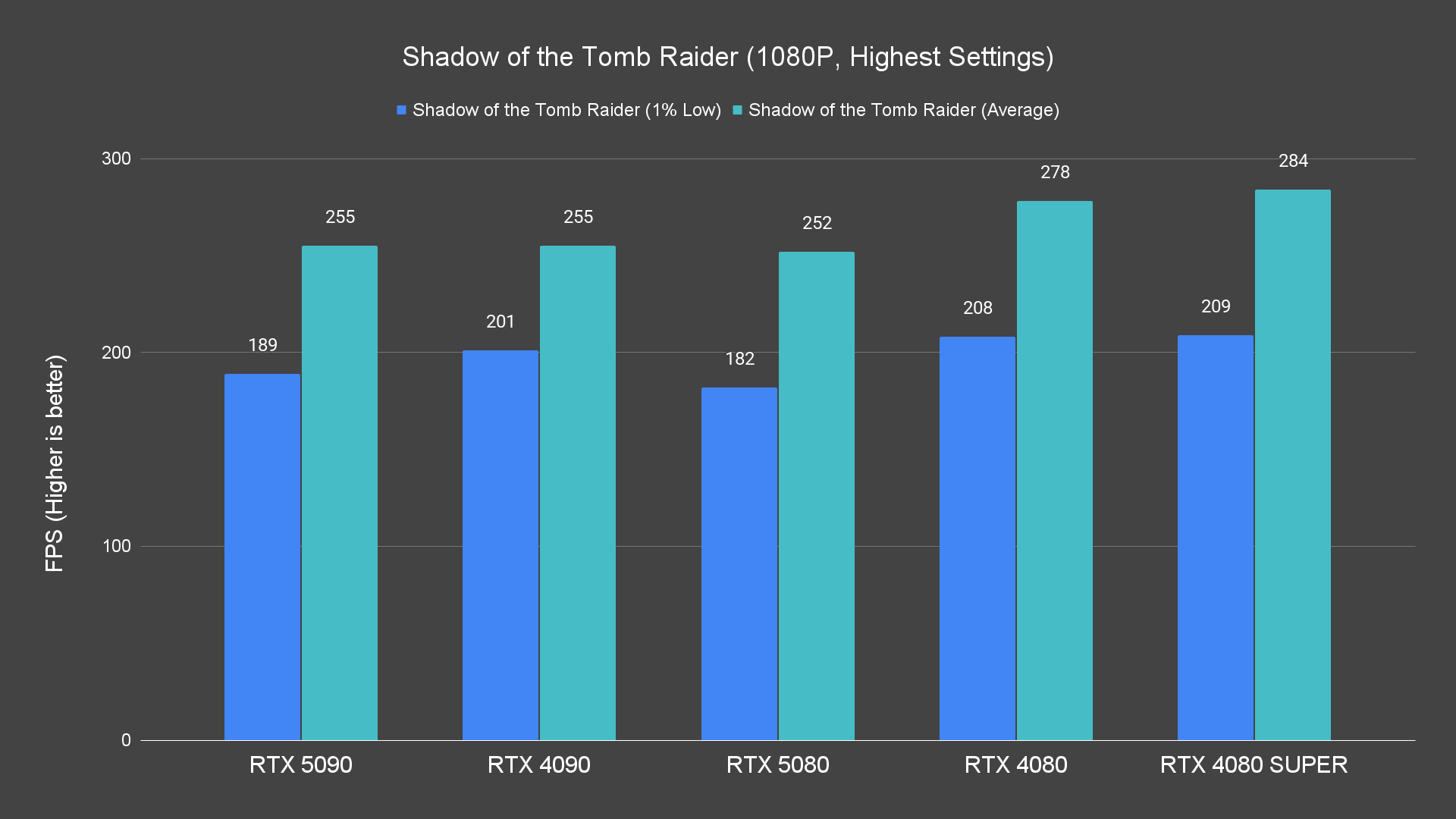

Starting off with raster performance, the RTX 5080 is able to outperform both the RTX 4080 and RTX 4080 SUPER in most of the tests we’ve done, though the margin is not that big. As for 1080p, we’re starting to see the same pattern as with other high-end GPUs, where it’s mostly CPU-bound. Realistically, if you’re buying an RTX 5080, you probably won’t be gaming at 1080p anyway, so we might just skip this resolution for future high-end GPU tests.

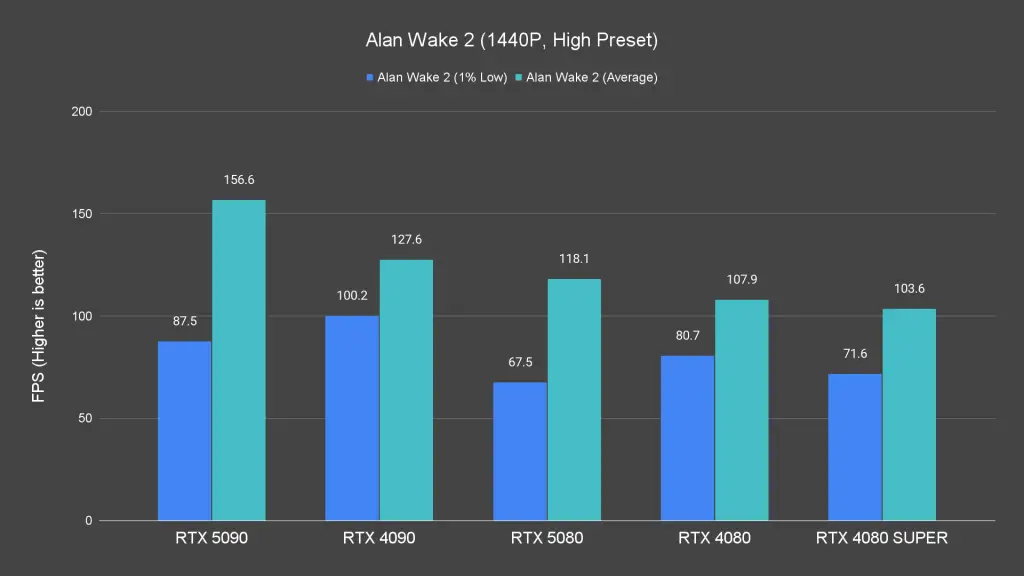

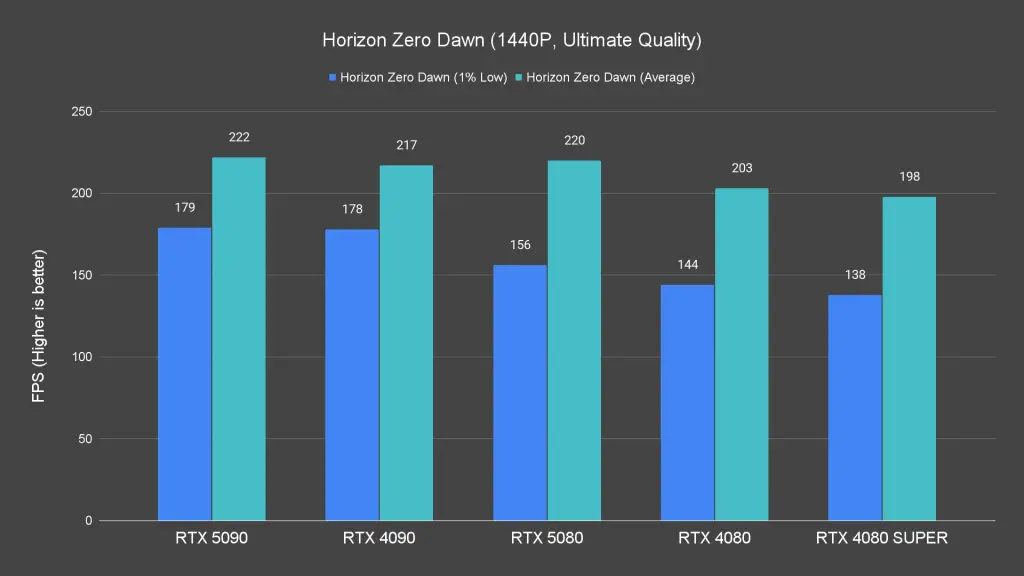

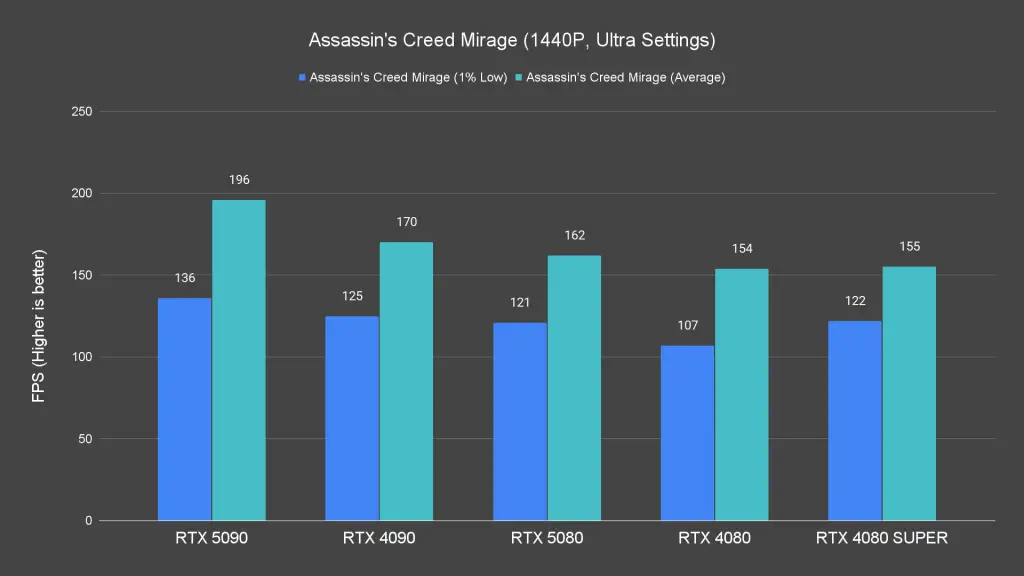

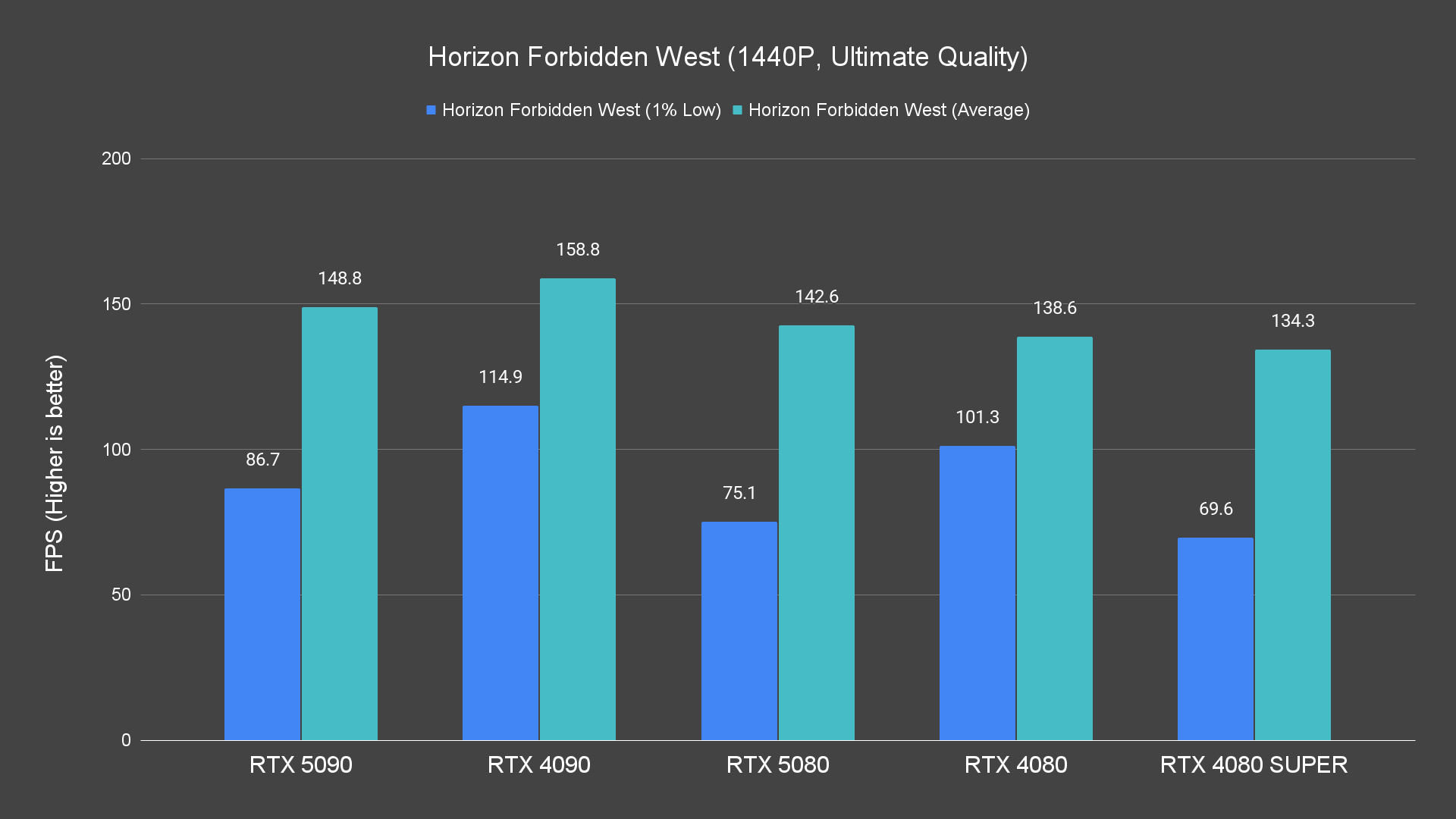

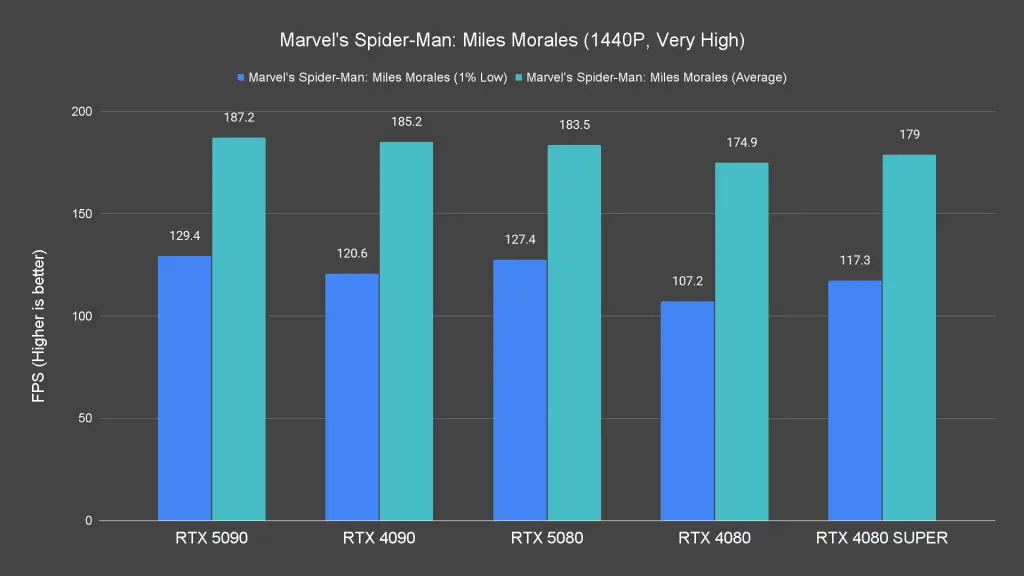

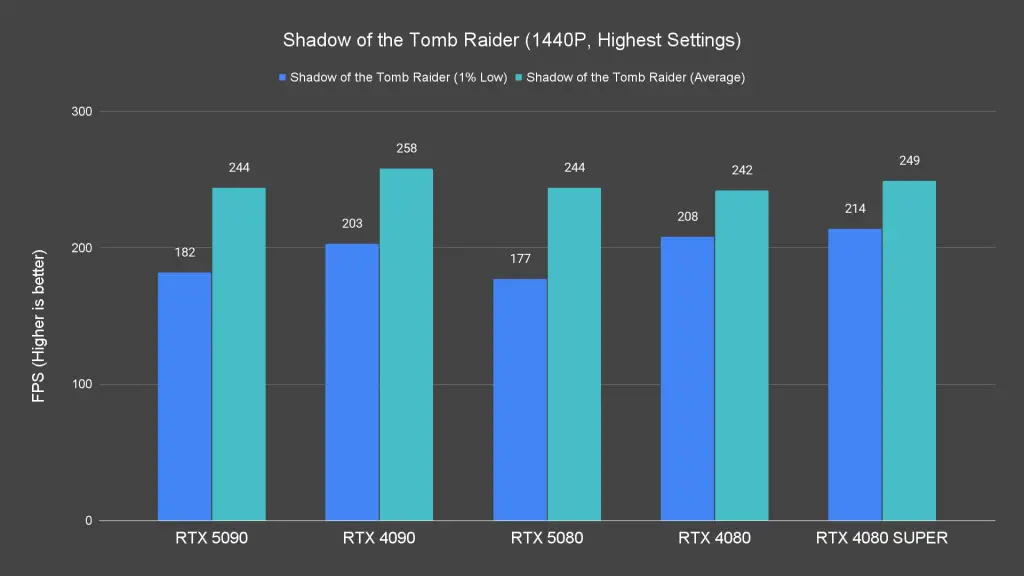

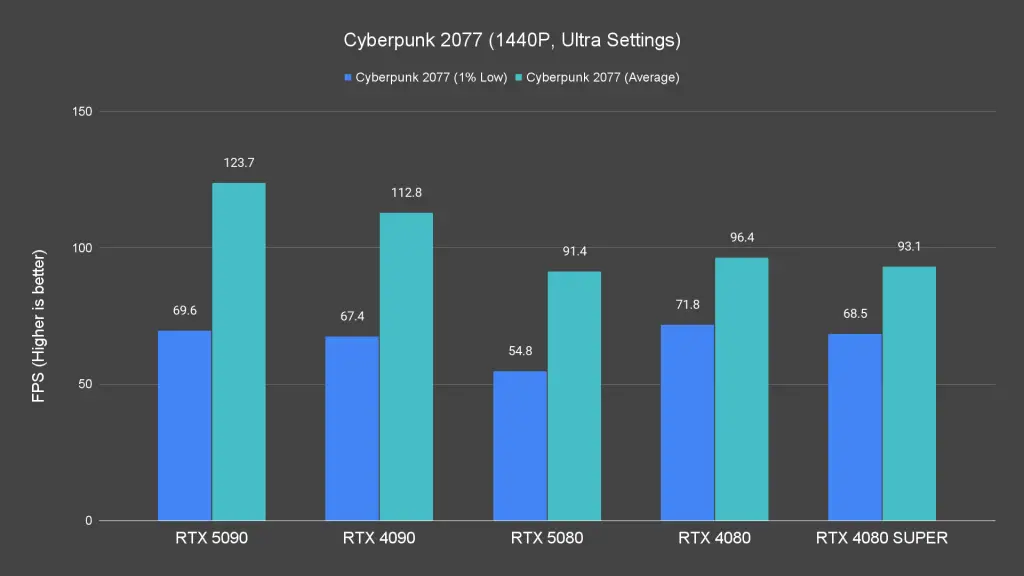

At 1440p, things get a bit more interesting. The RTX 5080 comes surprisingly close to the RTX 4090 in some of the titles we tested, but you can still see the gap in more demanding games like Alan Wake 2 and Cyberpunk 2077. Against the RTX 4080 and 4080 SUPER, the RTX 5080 does pull ahead more often than not, but it’s still not a massive leap.

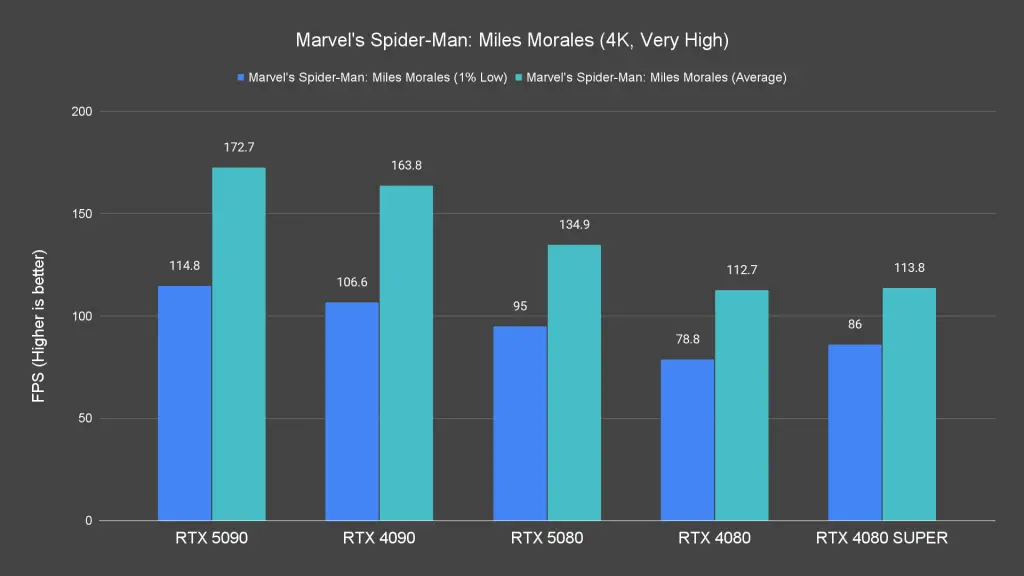

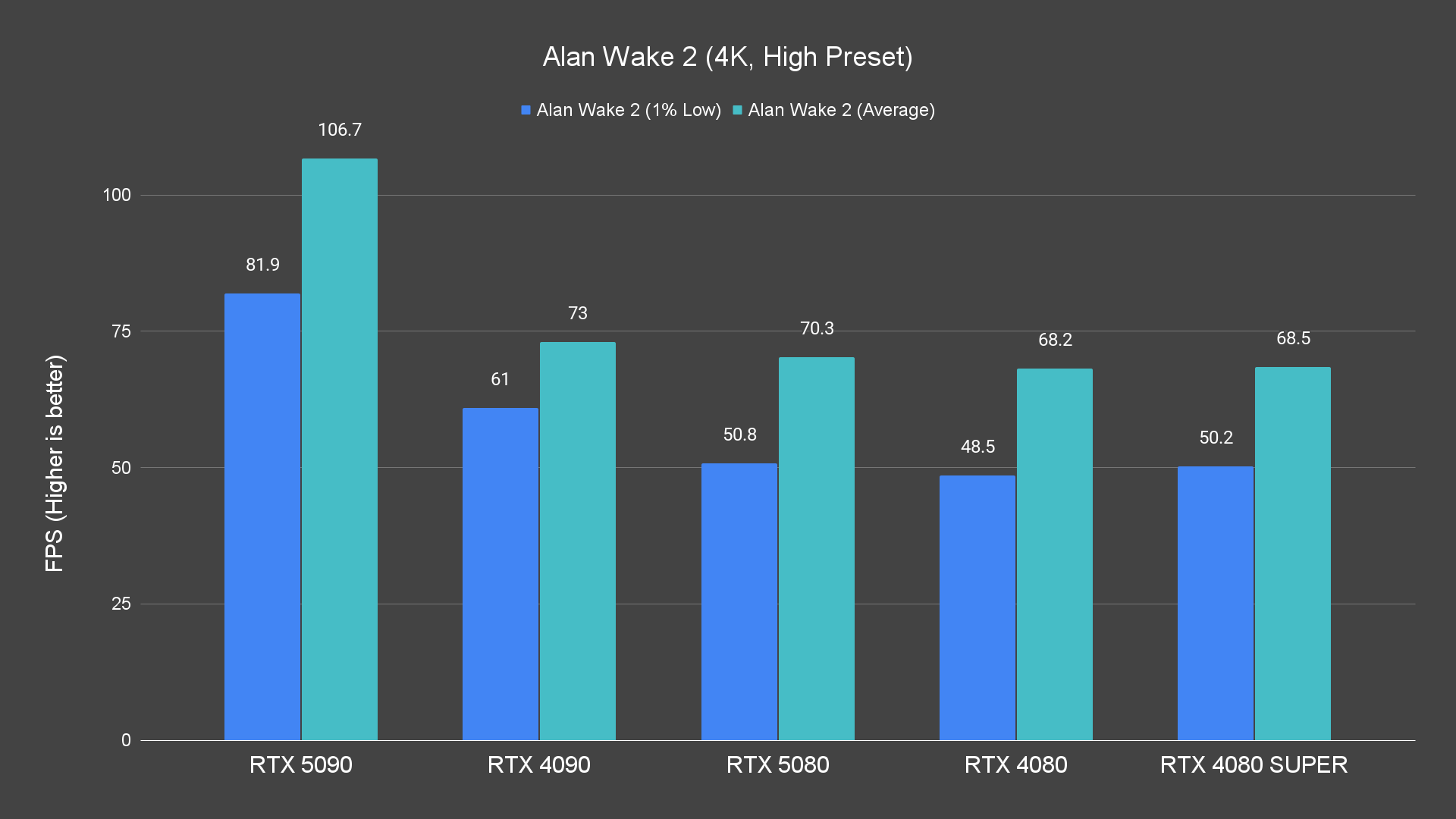

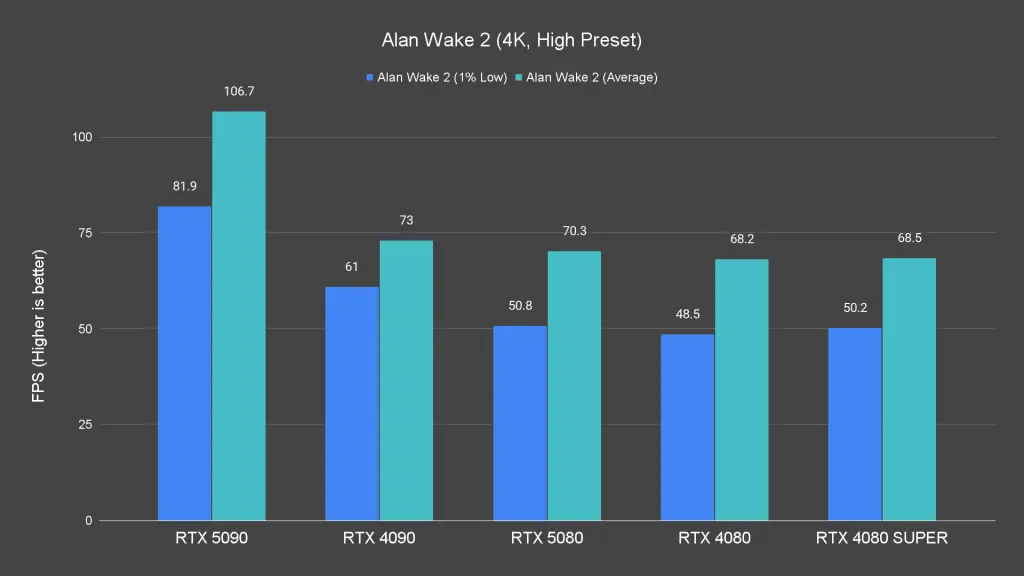

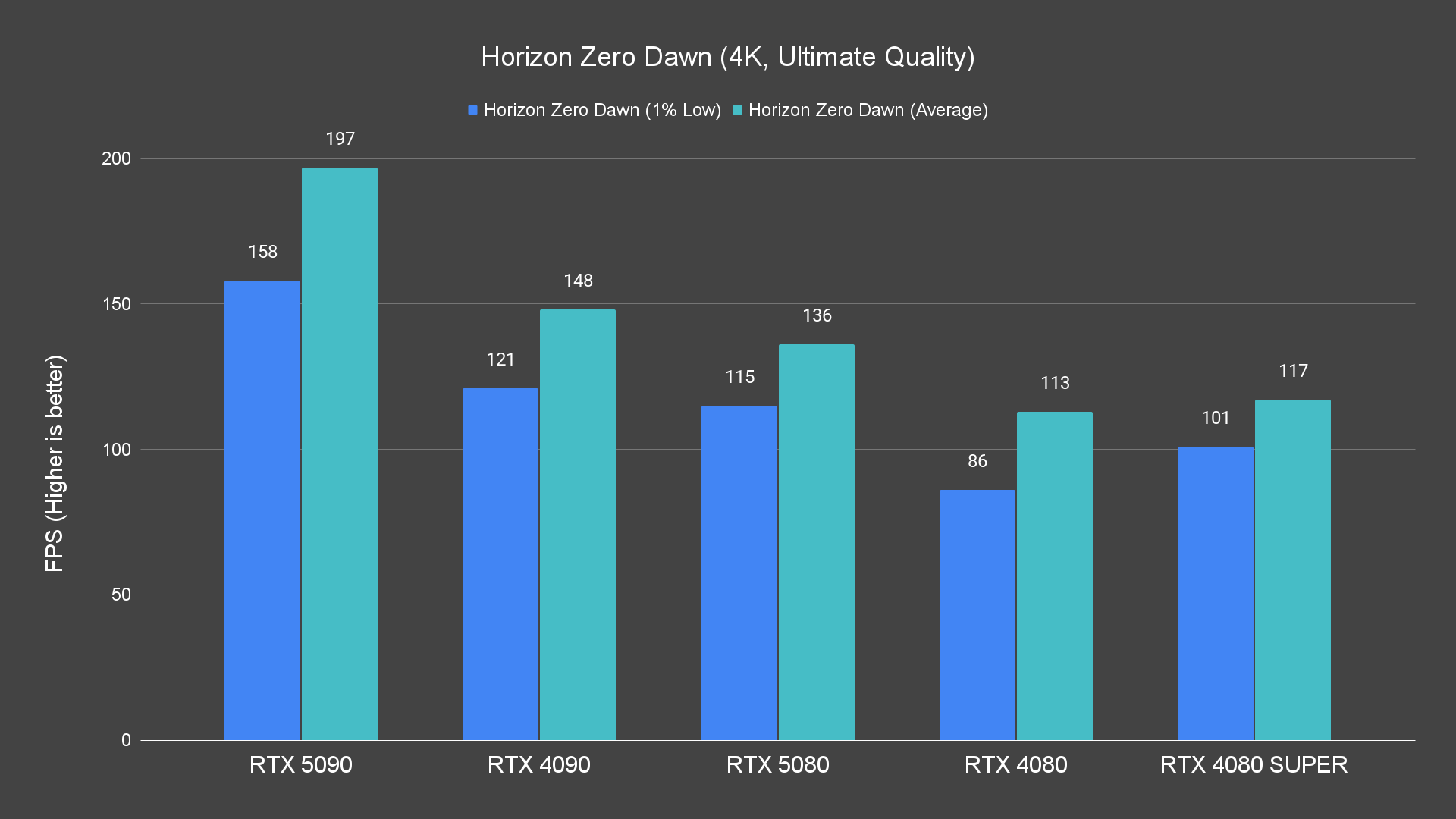

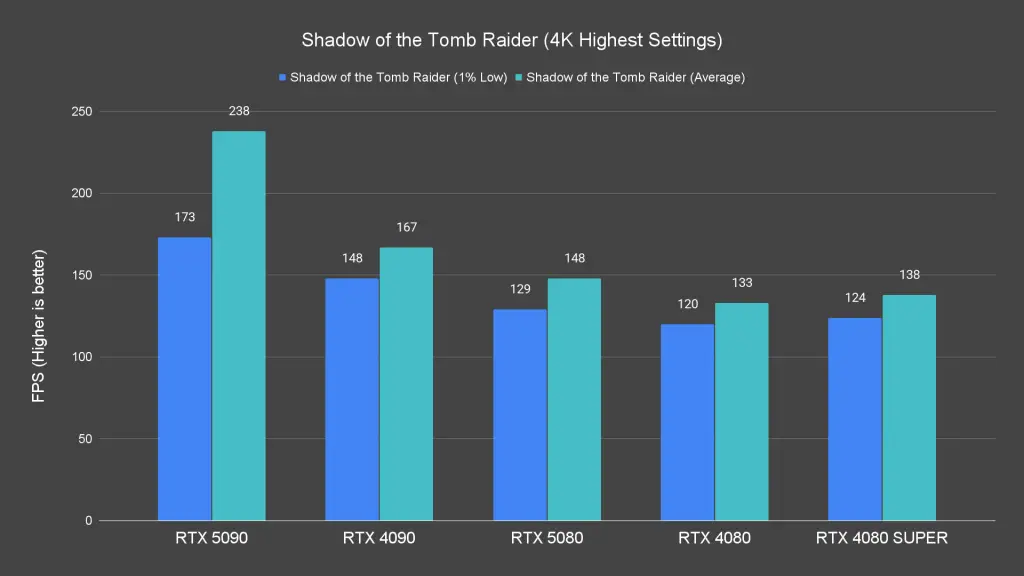

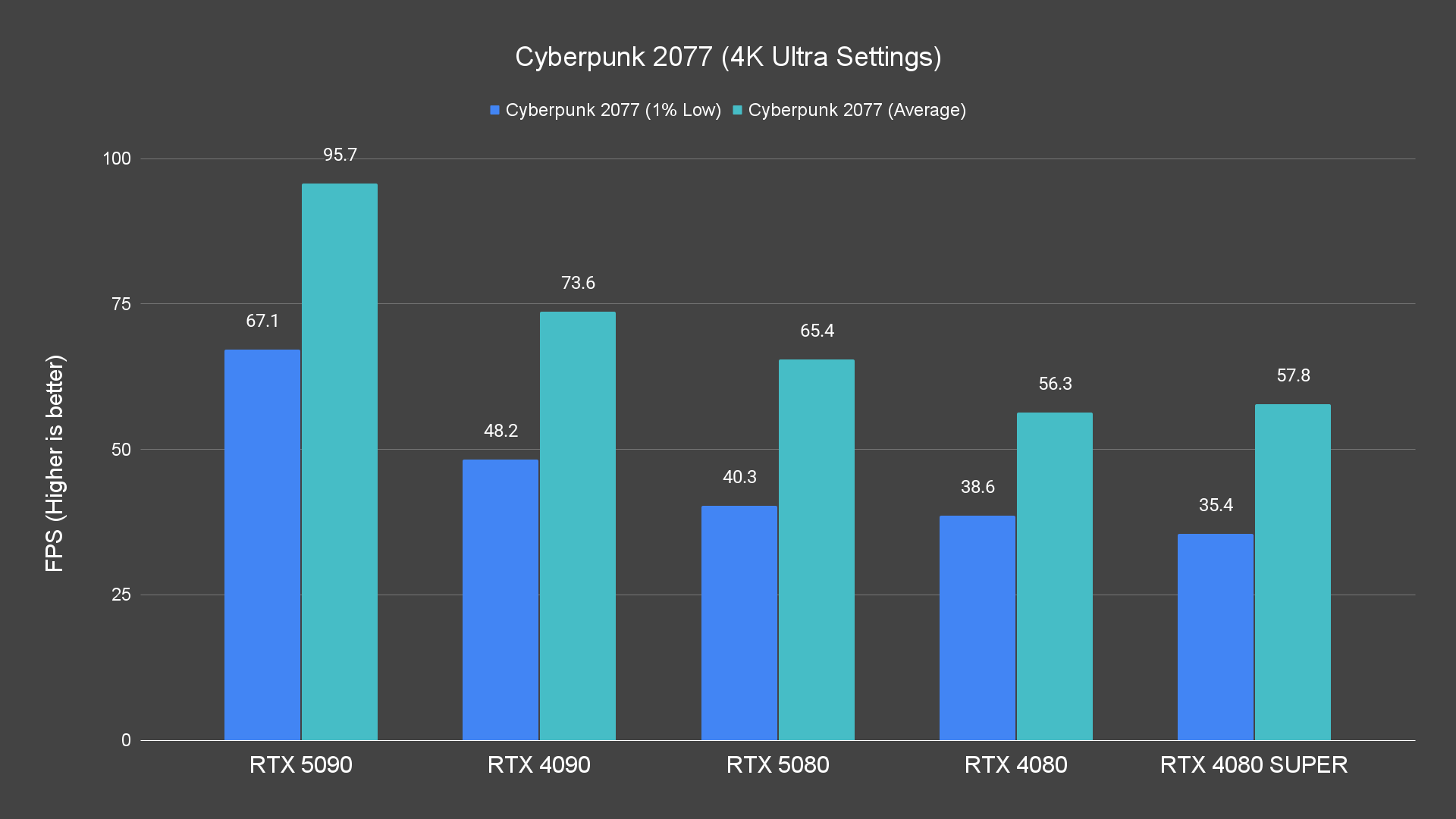

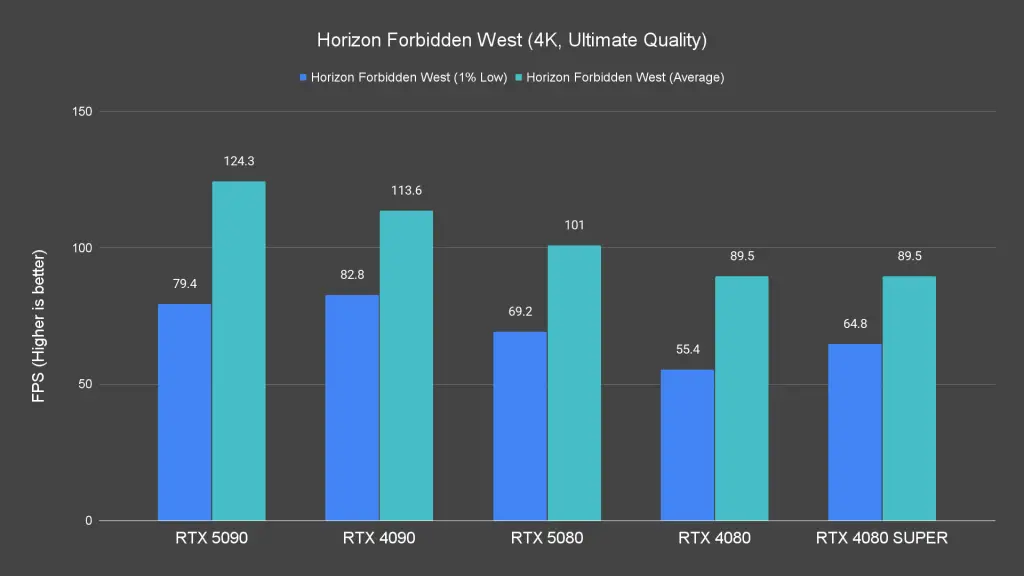

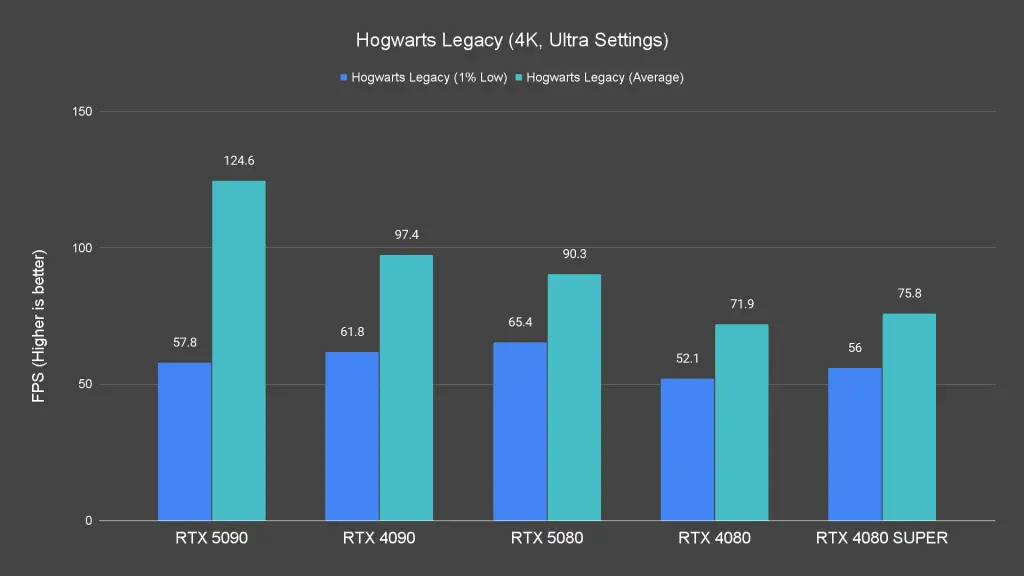

It’s at 4K where the RTX 5080 really gets to stretch its legs. Here, it shows a much bigger lead over the RTX 4080 and 4080 SUPER, making it a much better choice for gamers who are all-in on 4K. Of course, the RTX 5090 is still in its own league, but that’s another story.
Ray Tracing Benchmark

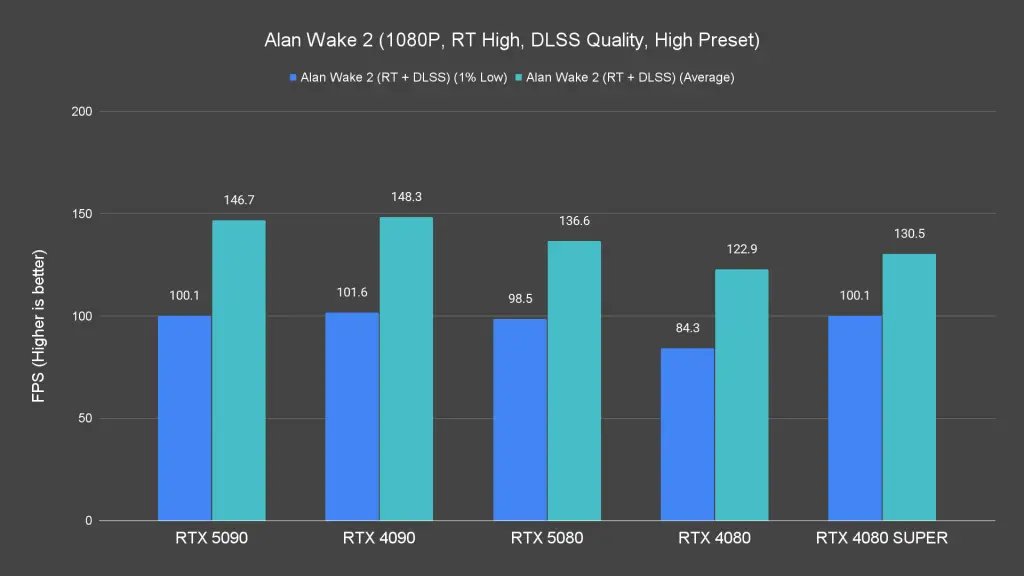

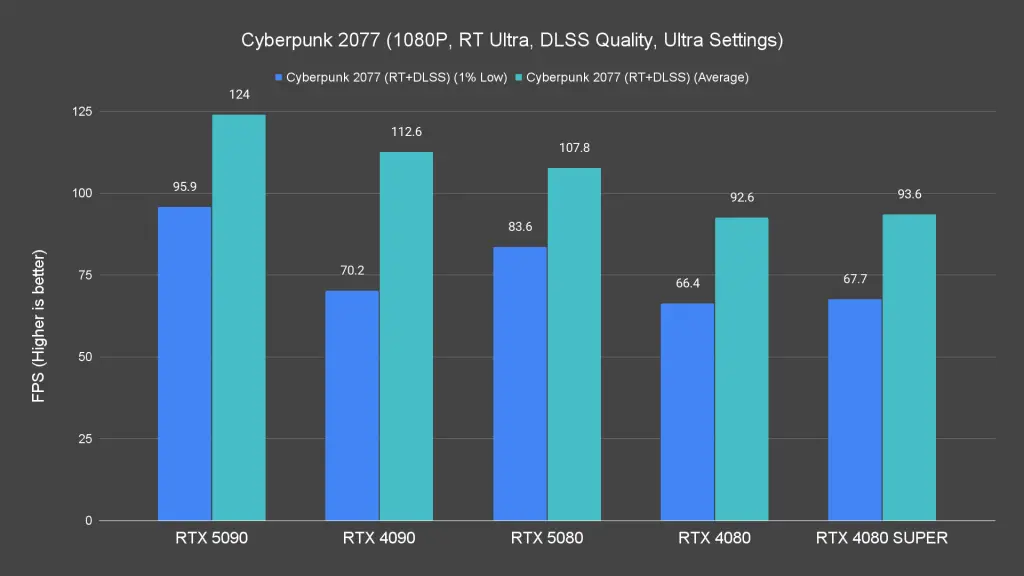

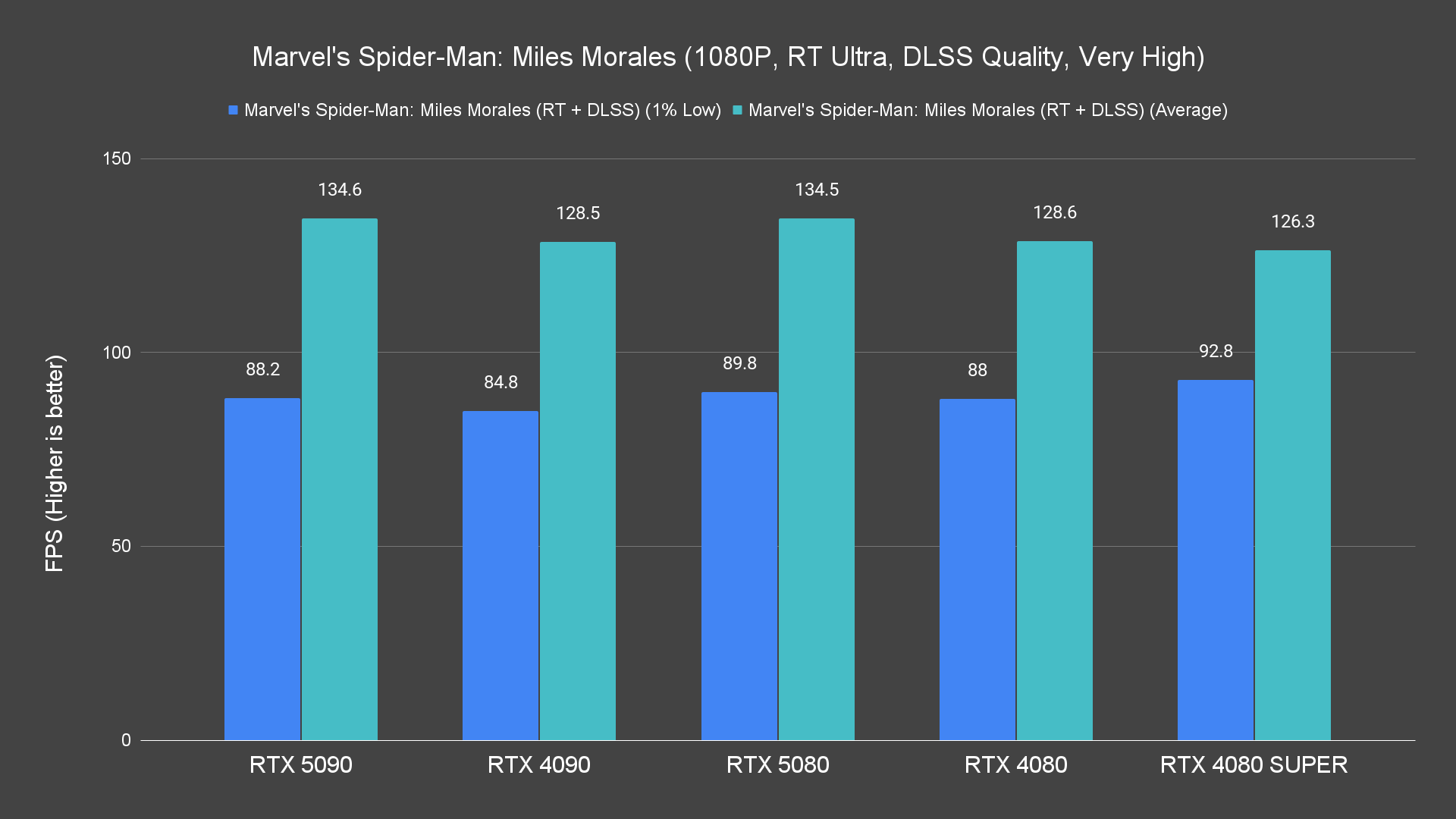

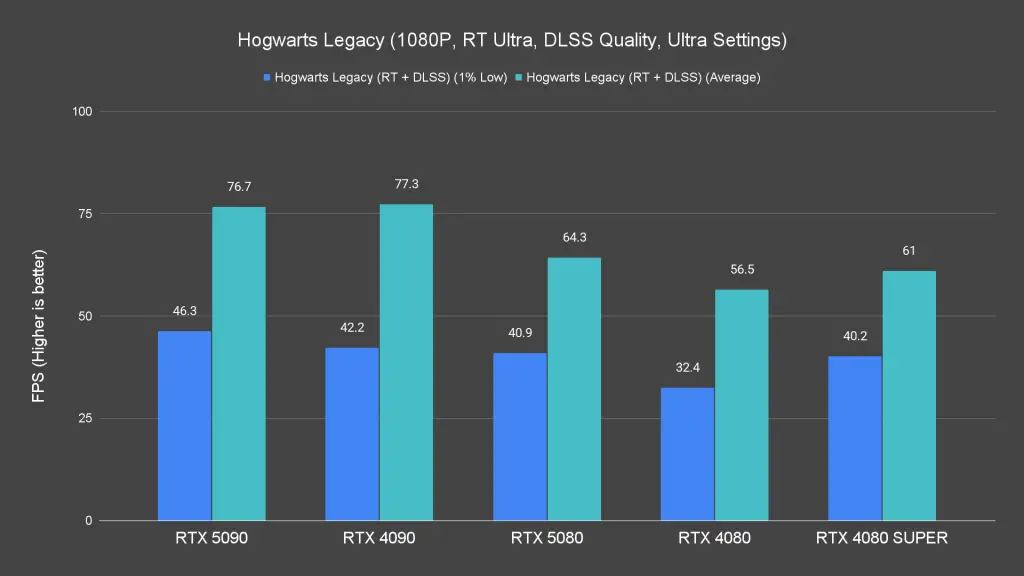

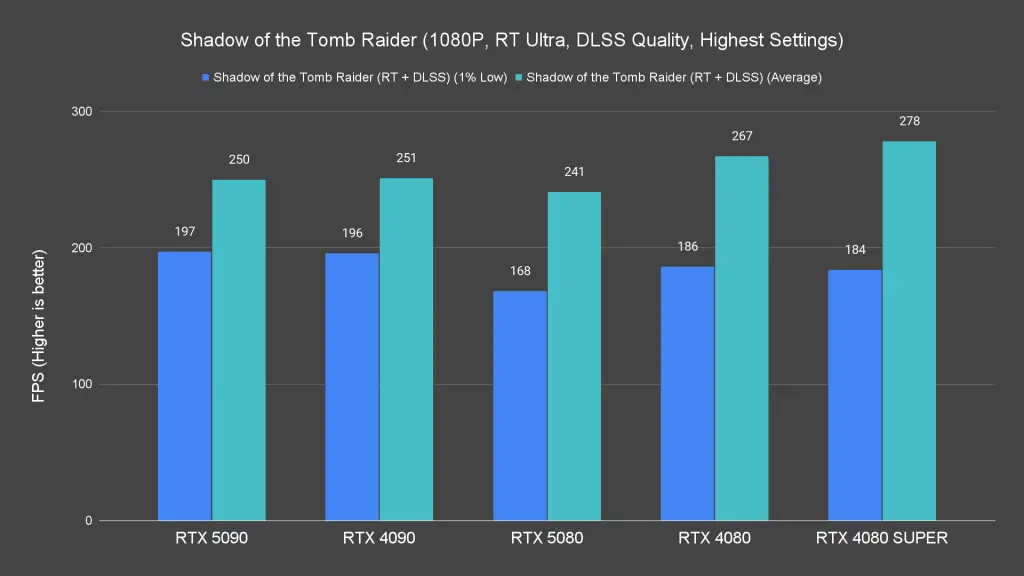

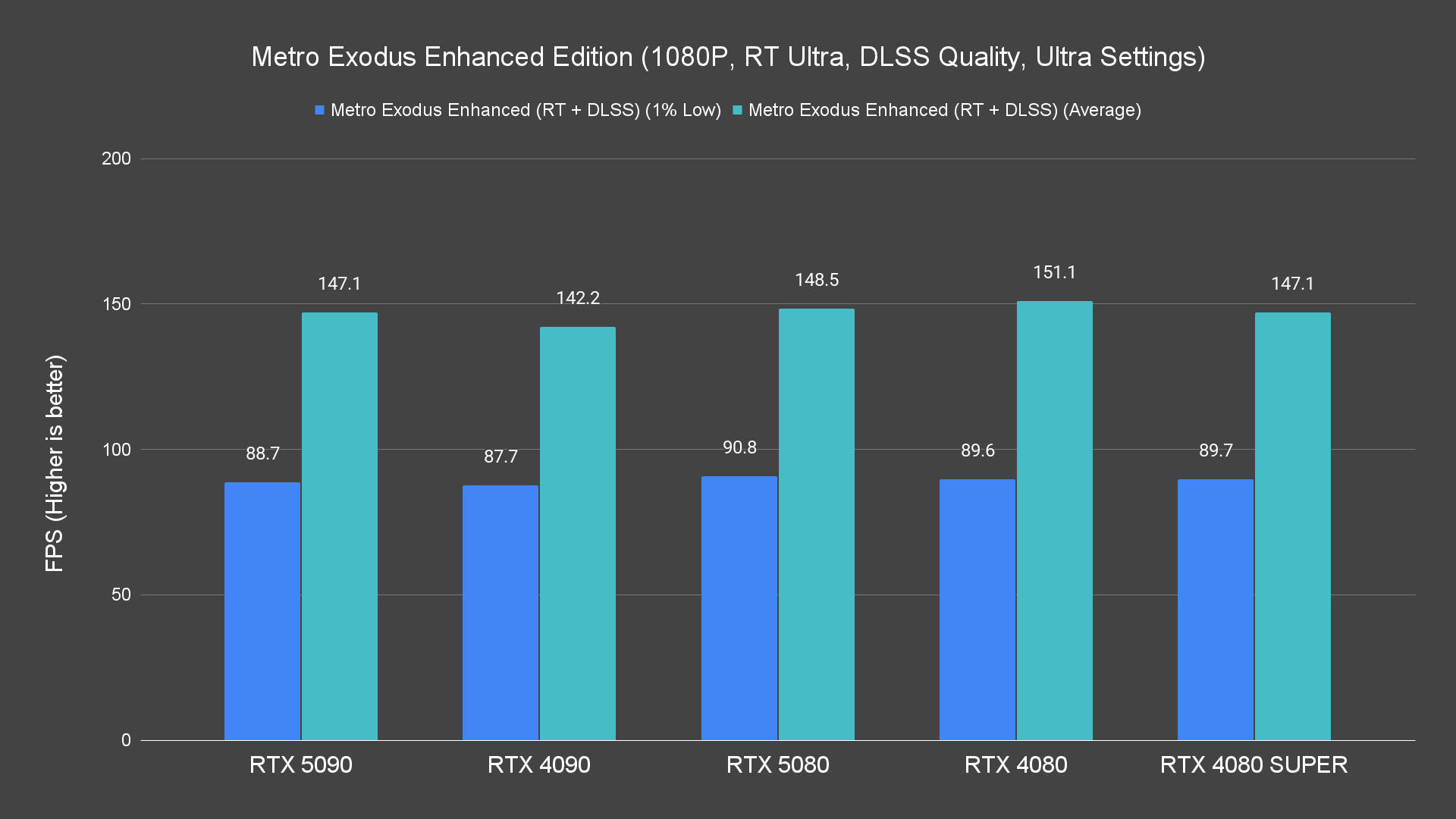

For ray tracing at 1080p, we’re seeing the same CPU-bound limitation as raster. The RTX 5080 does outperform the RTX 4080 and 4080 SUPER here, and it gets close to the RTX 4090 as well, but the difference doesn’t really matter much at this resolution.

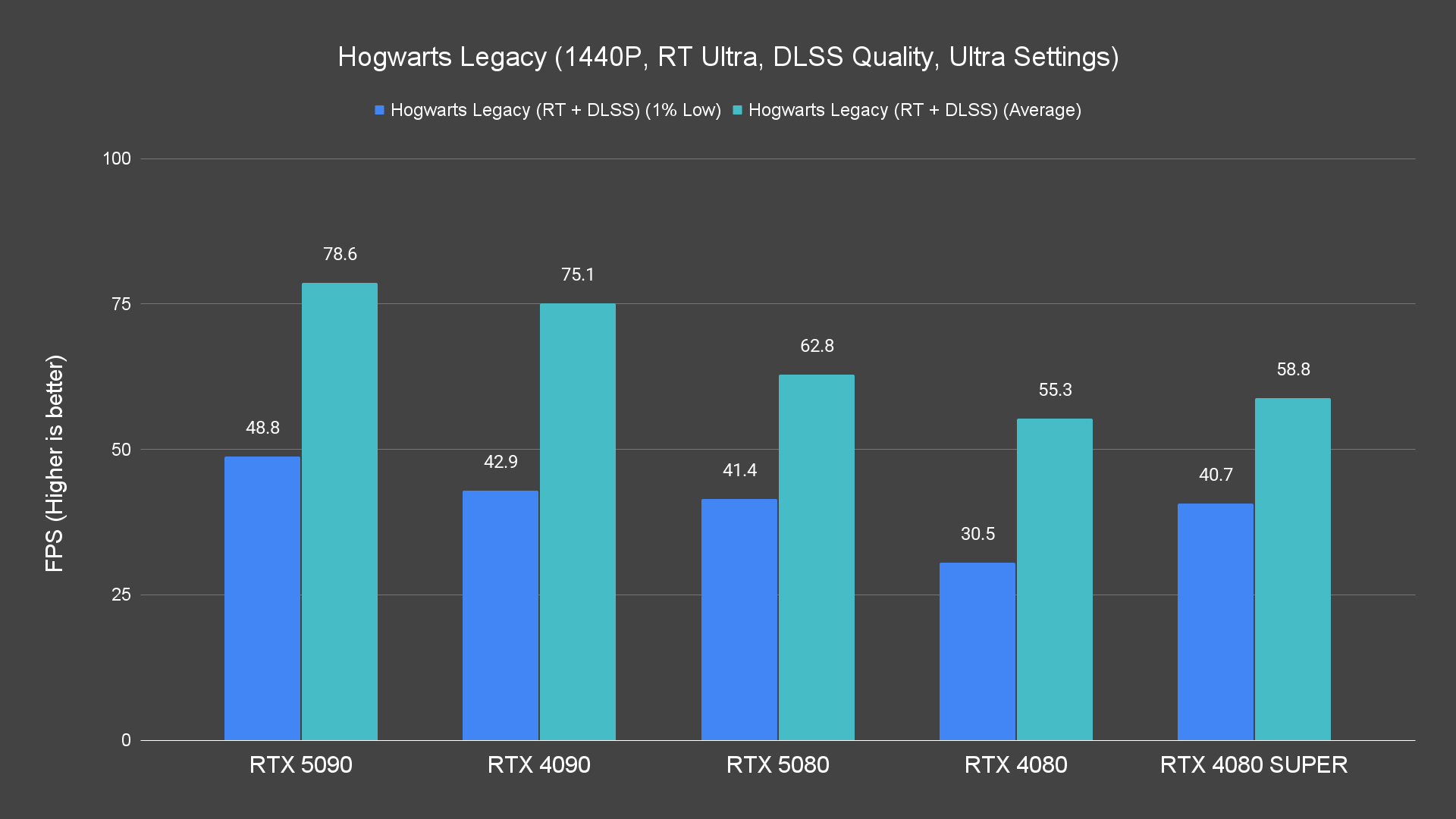

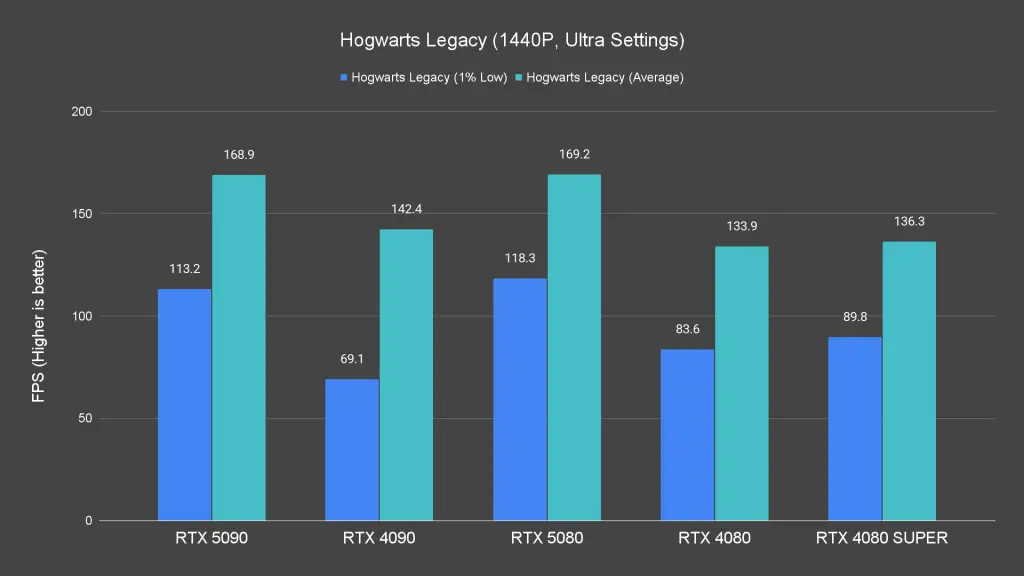

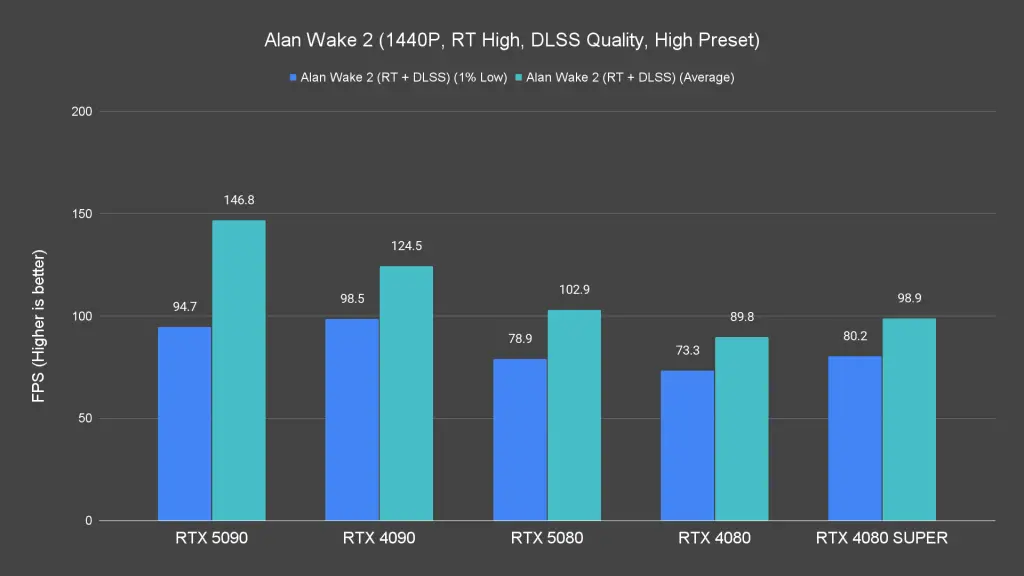

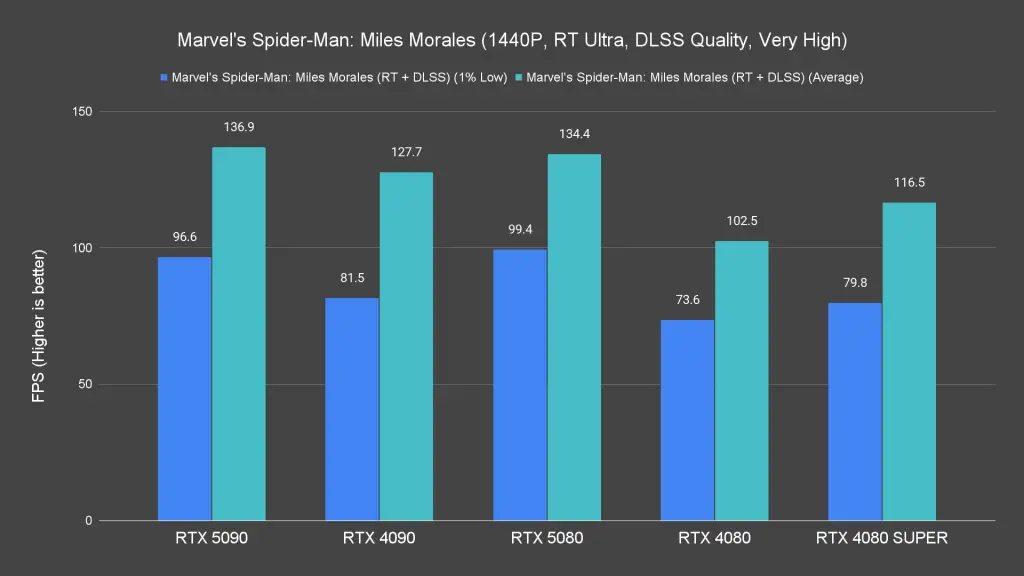

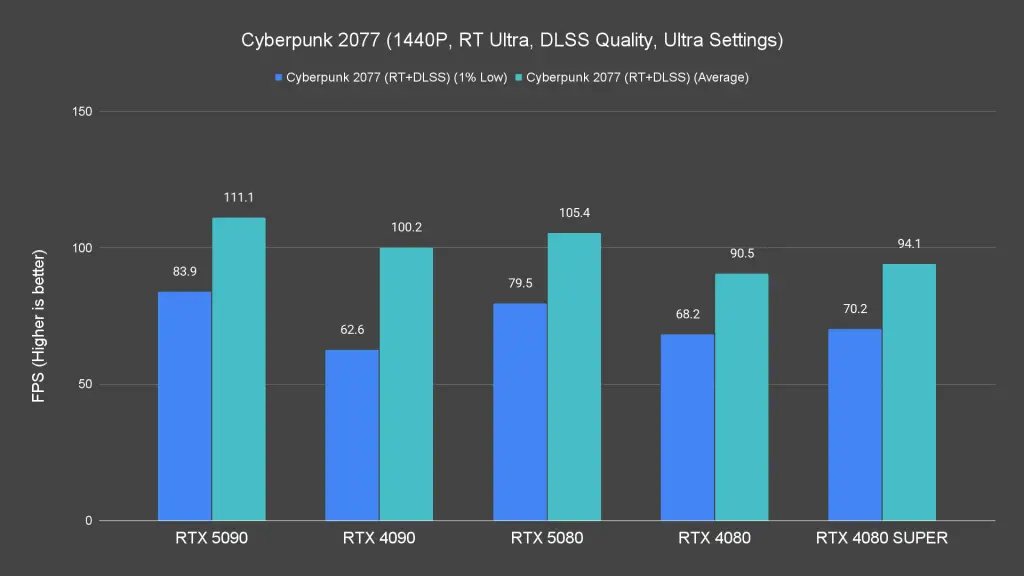

Moving to 1440p, the gap between the RTX 5080 and the RTX 4090 starts to shrink in a lot of the games we tested. The only exceptions are Hogwarts Legacy and Alan Wake 2, where the RTX 4090 still has a very clear advantage. Still, it’s looking good for the RTX 5080 at this point.

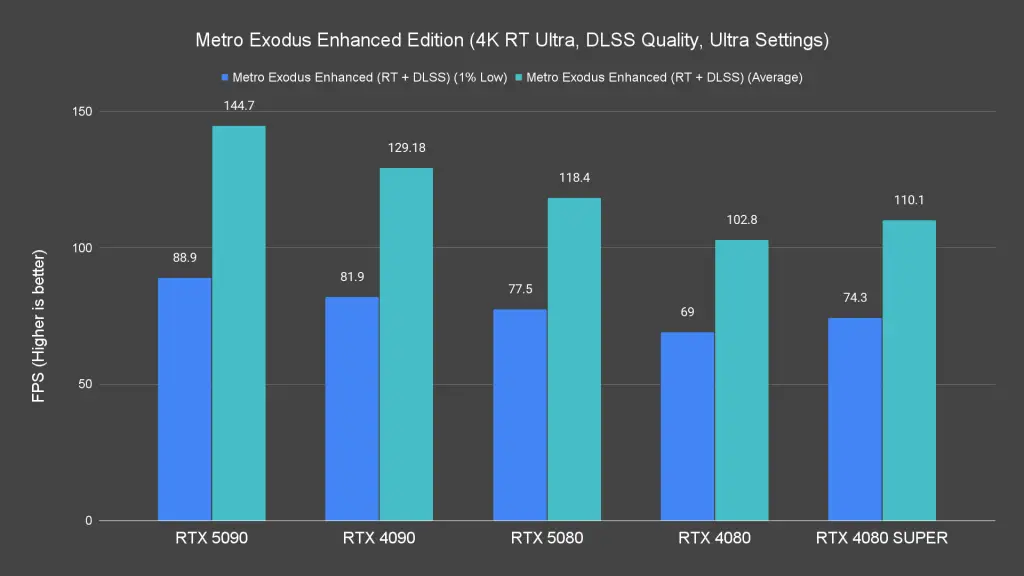

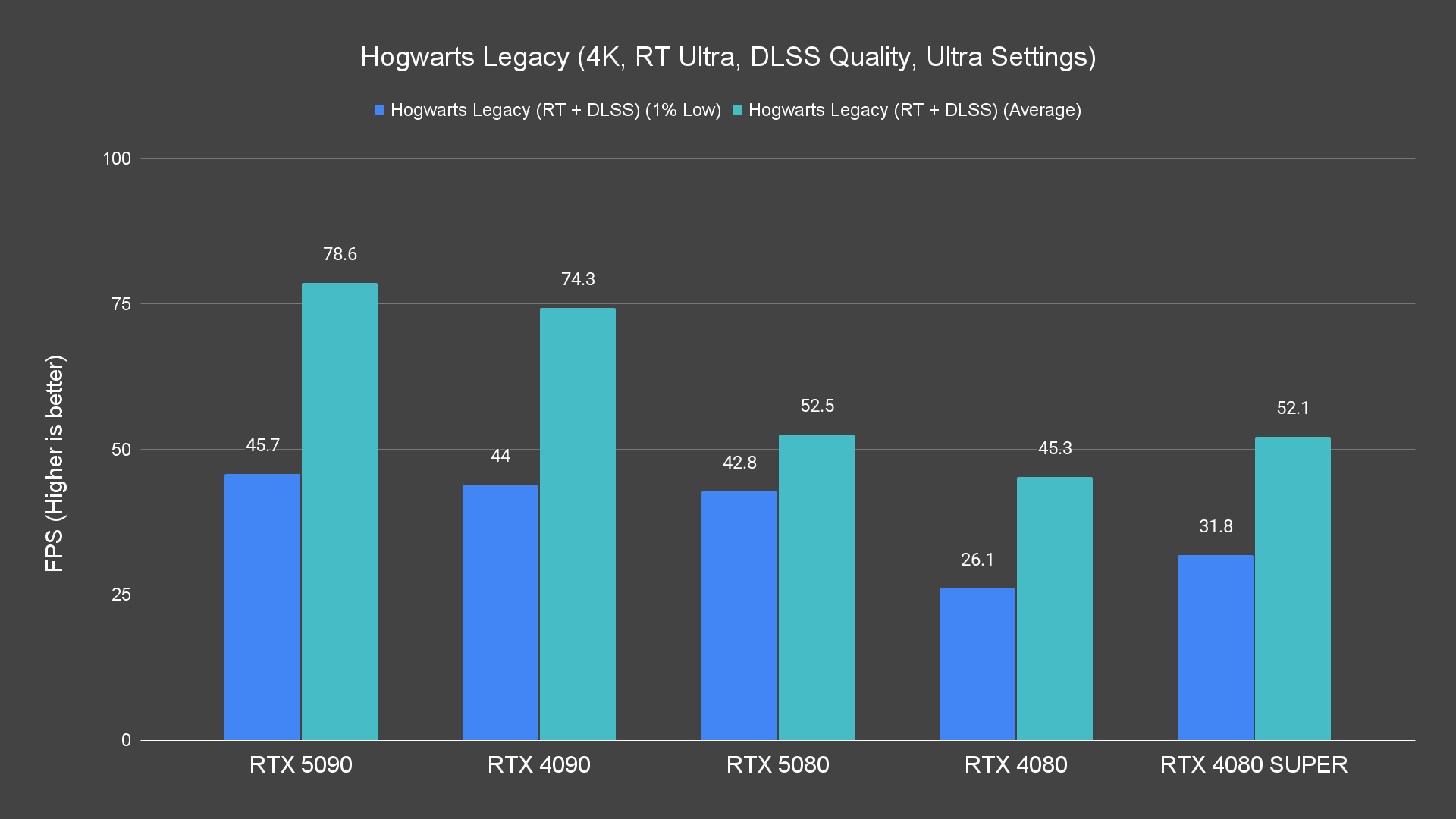

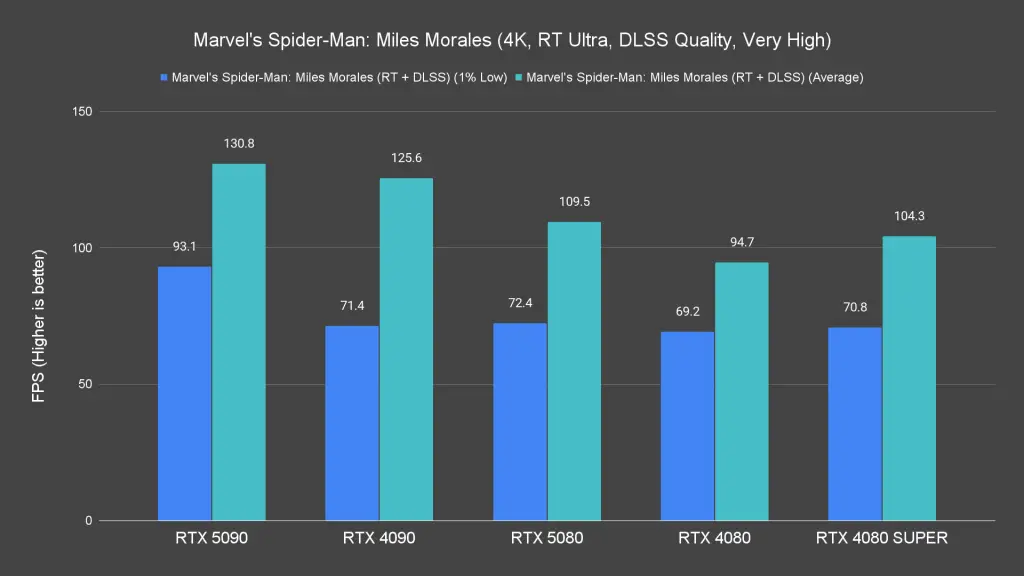

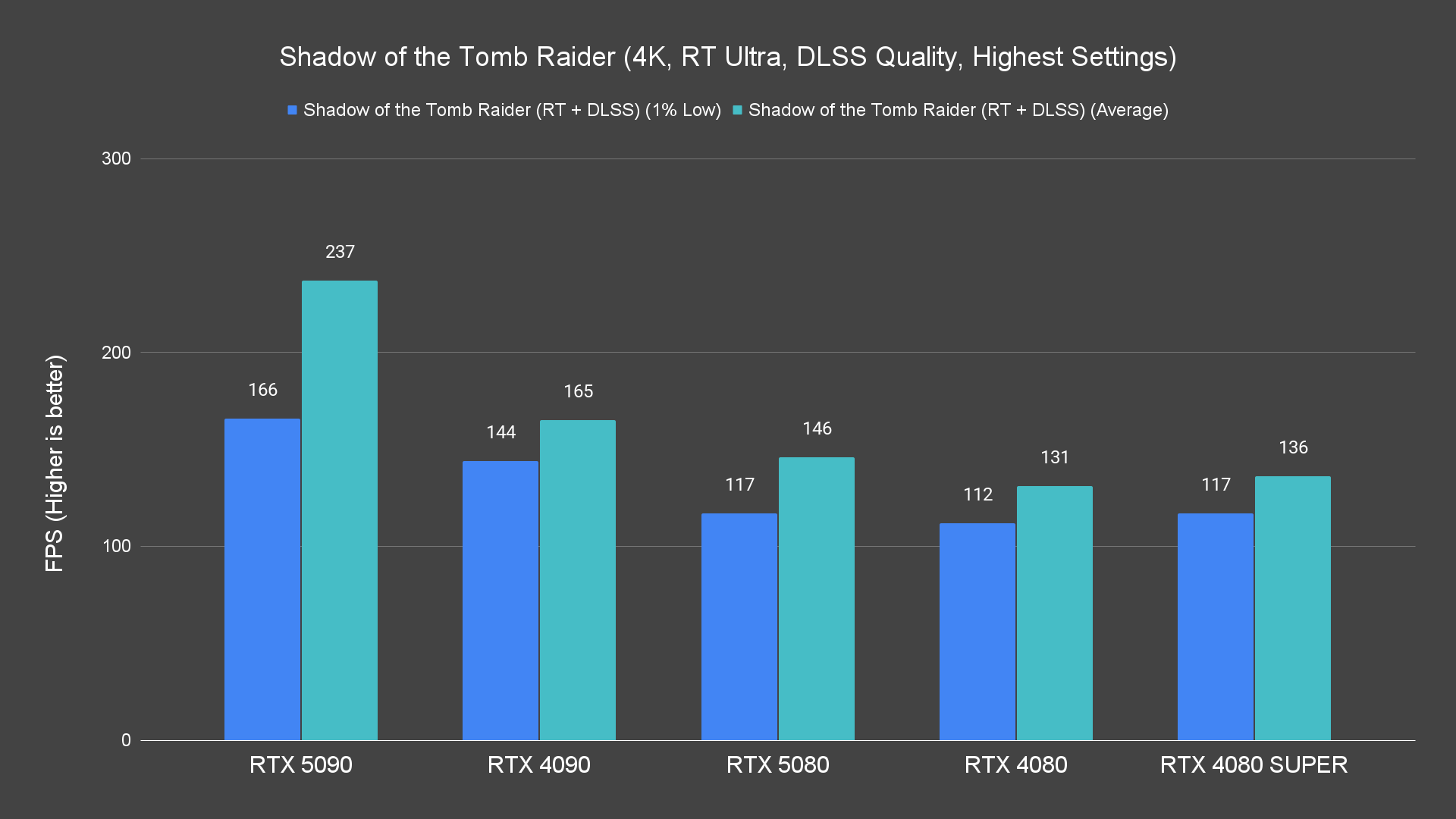

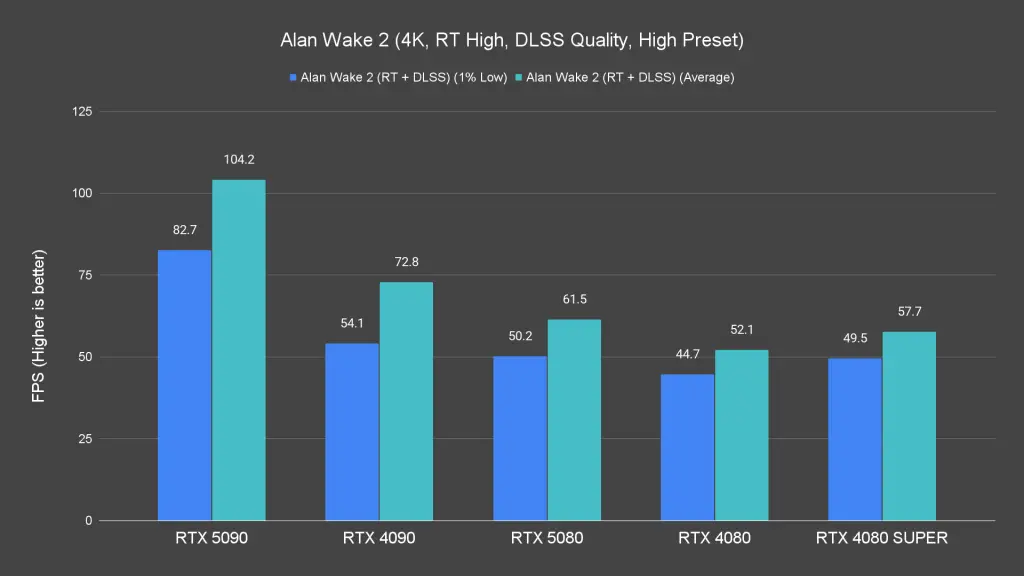

Finally, at 4K, while the RTX 5080 doesn’t surpass the RTX 4090, it still delivers a very solid performance on its own. If you’re aiming for 4K gaming with ray tracing enabled, this card handles it without breaking a sweat.
Power and Thermals

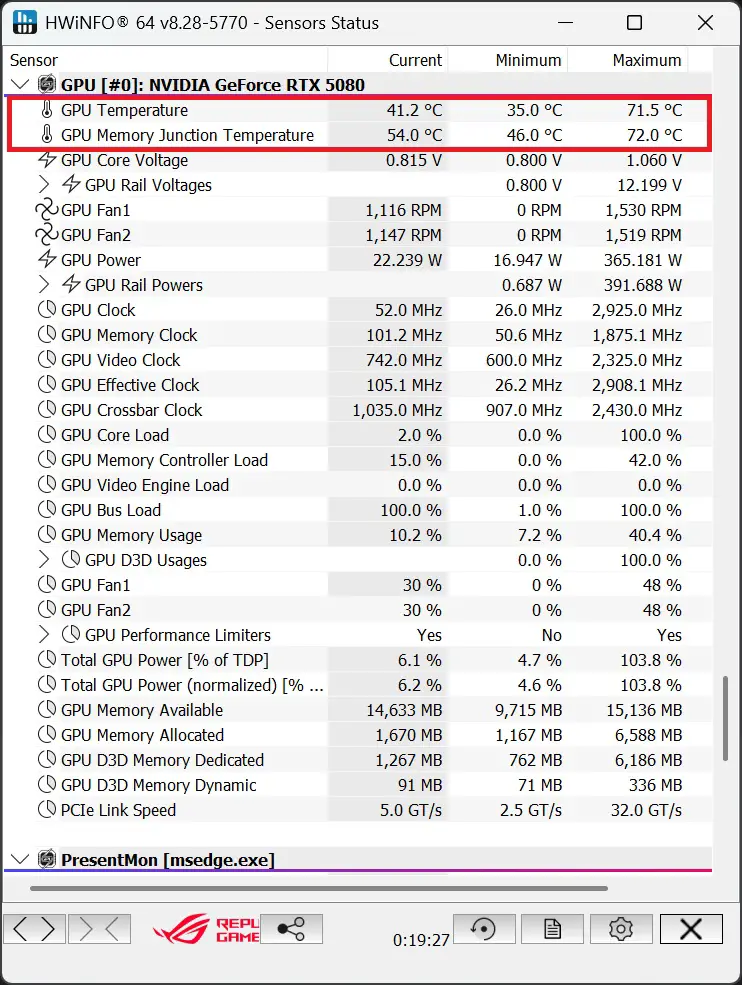

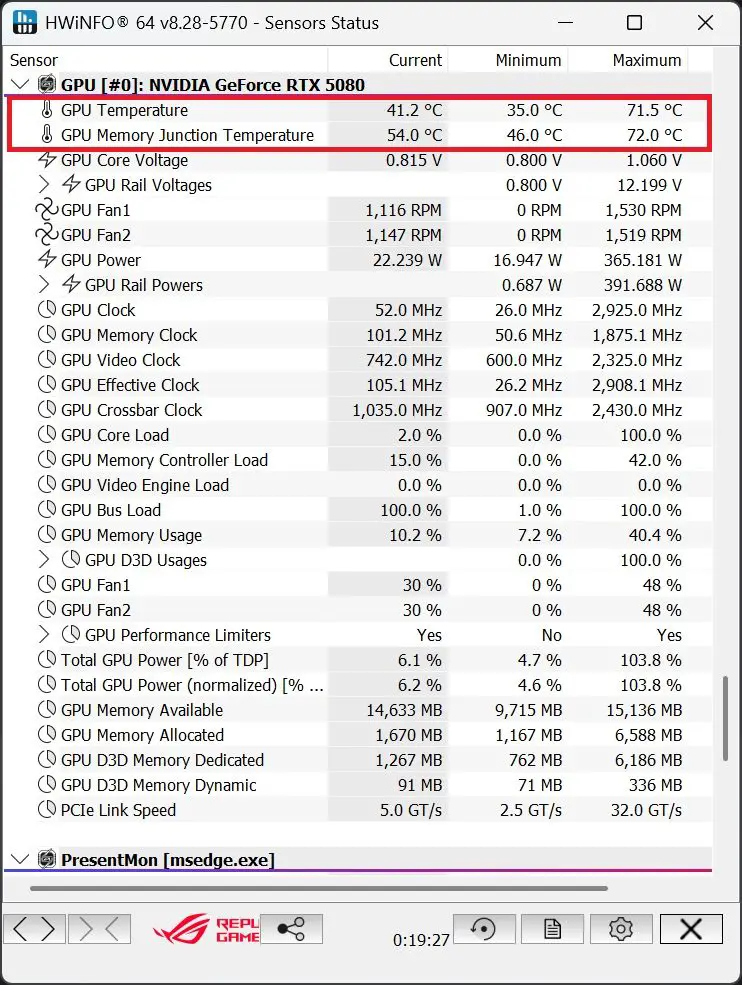

In our stress tests, the GPU temperature peaked at 71.5°C while the memory junction stayed at 72°C. In gaming workloads, the GPU maxed out at 70°C, and the memory junction temperature remained the same at 72°C. These are excellent numbers for a card in this performance class and show that the Flow Frozr 2 cooling system is doing its job well.
The vapor chamber design and airflow path clearly contribute to the strong thermal results. Fan noise stays reasonable even under heavy load, making the card well-suited for quiet performance-oriented builds.

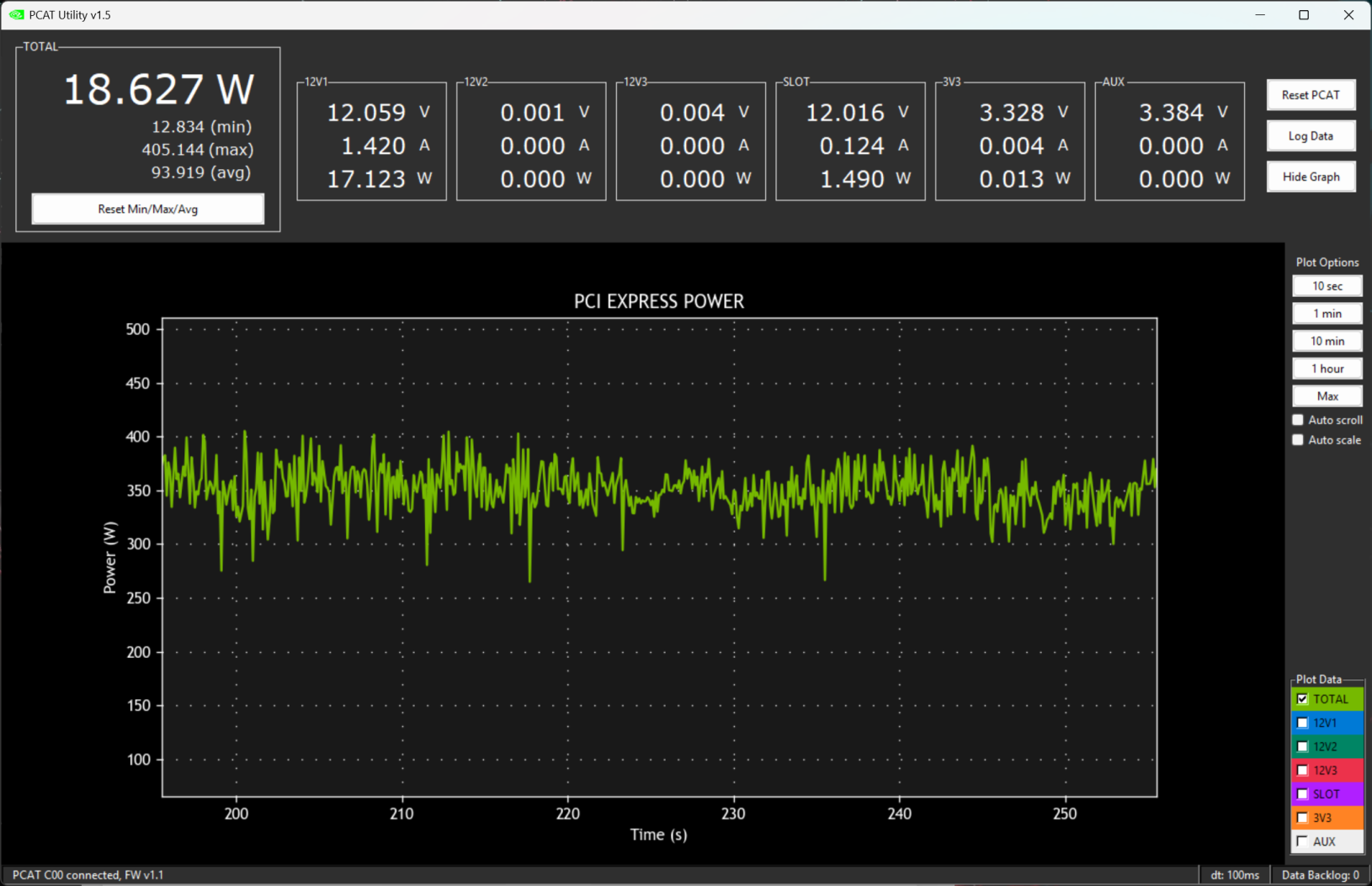

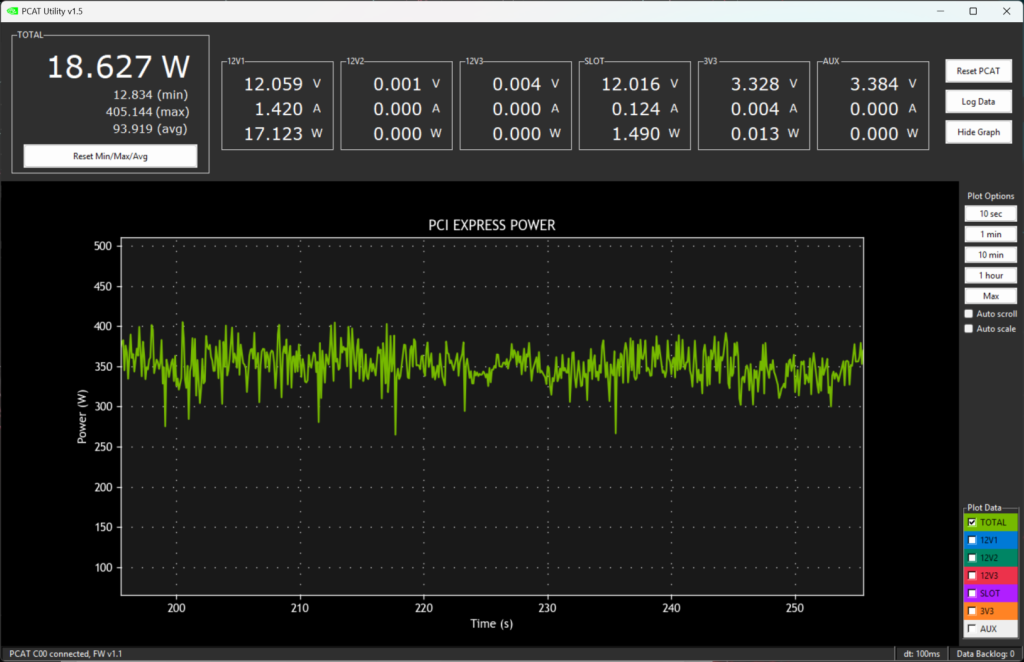

Power draw during gaming sits around 400W, which is quite manageable for a high-end GPU of this class. In games like Cyberpunk 2077 at 4K with ray tracing and DLSS 4, the card delivers triple-digit frame rates without any noticeable hiccups. It handles other demanding titles at maximum settings with ease while keeping thermals well under control.
Final Thoughts
The MSI RTX 5080 Expert feels like a card designed for users who want top-tier performance without unnecessary bulk or flashy gimmicks. The cooling solution is efficient, temperatures remain low under load, and the compact two-slot design makes it easier to integrate into a variety of builds.
If you are looking for a GPU that can deliver excellent 4K gaming performance, take advantage of DLSS 4 and advanced ray tracing, and still run cool and quiet, the RTX 5080 Expert is a strong option to consider. MSI has managed to combine practical design, solid build quality, and high-end performance into one very compelling package.
