LIAN LI has launched its latest fully modular SFX PSU: the SP850, which also comes with a 12VHPWR connector right out of the box. Let’s have a look at what it has to offer.

LIAN LI SP850 PSU 1

The new SP850 is equipped with a 92mm hydraulic bearing fan that operates at zero RPM until the unit reaches 40% load or 60°C ambient temperature, then it will start spinning at 2800 RPM while maintaining a maximum noise level of 40.6 dBA. Furthermore, the PSU’s protection features have been upgraded as well, with an extra inrush current limiter included now.

LIAN LI SP850 PSU 2

Packed with a 400mm 16 AWG thick 12VHPWR PCIe 5.0 compatible connector, the SP850 is capable of delivering adequate power for the latest graphics cards on the market currently and is ready for any next-gen upgrades.

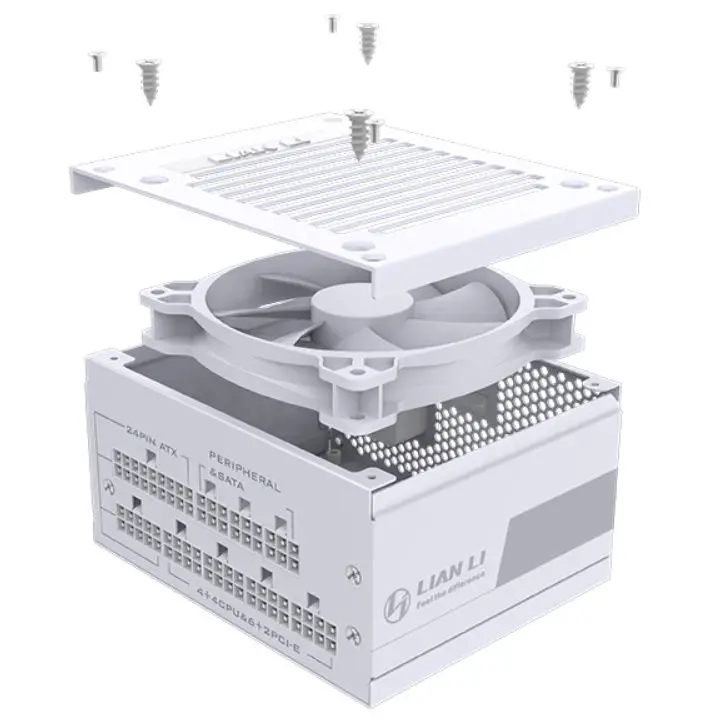

LIAN LI SP850 PSU 3

Just like many other LIAN LI case exteriors, the SP850 also boasts the iconic sleek aluminum and steel housing. The black edition has a brushed aluminum finish while the white one is powder coated with silver accents. Both colors come with matching braided cables for adaptability and flexibility in a clean build.

Specifications

Model
  • SP850
Dimensions (D x W x H)
  • 100mm x 63.5mm x 125mm
Power Supply Design
  • Fully modular
Color
  • Black / White
Form Factor
  • SFX
Certification
  • 80 PLUS Gold
Max. DC Output
  • 850W
Combined +3.3V & +5V
  • 100W
Combined +12V
  • 840W
Input Voltage
  • 100 ~ 240 Vrms
Input Frequency Range
  • 50Hz – 60Hz
PFC
  • Active PFC (PF)>0.90 at full load
Efficiency
  • 93.53% MAX
Protective Circuit
  • OCP OVP OTP OPP SCP UVP
Connectors
  • 1 x 24/20-Pin motherboard connector (300mm) x1pcs
  • 1 x 8/4+4 Pin CPU/ATX 12V connector (600mm) x2pcs
  • 1 x 8/6+2 Pin PCle connector (400mm) x1pcs
  • 2 x 8/6+2 Pin PCle connector (400mm-120mm) x1pcs
  • 4 x SATA connector (120mm120mm-120mm-120mm) x2pcs
  • 4 x 4-Pin Peripheral connector (120mm-120mm-120mm- 120mm) x1pcs
  • 1 x 12VHPWR 8P*2 to 12P (400mm) x1pcs
Noise Level
  • 17.1 – 40.6 dBA
Fan RPM
  • 1000-2800 RPM
Bearing Type
  • HYB
Warranty
  • 5 Years

Availability

The LIAN LI SP850 PSU is now available for purchase via the following links:
