Unboxing & Preview: Bitfenix BPA600 Power Supply 1
Let’s face it, among all the components that sit in your desktop chassis, the power supply unit is the least interesting piece of tech. Even so, it is one of the most important components that would determine how stable your system would run.
Today what we have in our labs is the entry level and budget friendly PSU – Bitfenix BPA600. Let’s take a look how the renowned casing manufacture fares in producing power supplies.
Retails for RM200.00+-

Specifications Overview

General

  • Dimension: 140  x  150  x  86 mm
  • PFC Type: Active PFC >= 0.95
  • Intel Specification: ATX 12V V2.3
  • Efficiency (Typical Load): 82-85-82 @ 230 Vac
  • Output Cable Type: Fixed Cable
  • Fan Type: 120mm Silence Fan
  • Protection: OPP / OVP / UVP / SCP
  • Operation Temperature: 35 ‘C
  • Safety Registration: TUV / CB / CE / EAC
  • MTBF: > 100,000 hours

Power Delivery

  • DC Output – Max Load:
    • +5V – 20A
    • +3.3V – 20A
    • +12V1 – 46A
    • -12V – 0.3A
    • +5VSB – 2.5A

Packaging

Unboxing & Preview: Bitfenix BPA600 Power Supply 3
Bitfenix has opted for clean and minimalist box design. It is mainly consists of black and white except Bitfenix’s logo which is bright red.
Unboxing & Preview: Bitfenix BPA600 Power Supply 5
Details of the connectors that comes within the box.
Unboxing & Preview: Bitfenix BPA600 Power Supply 7

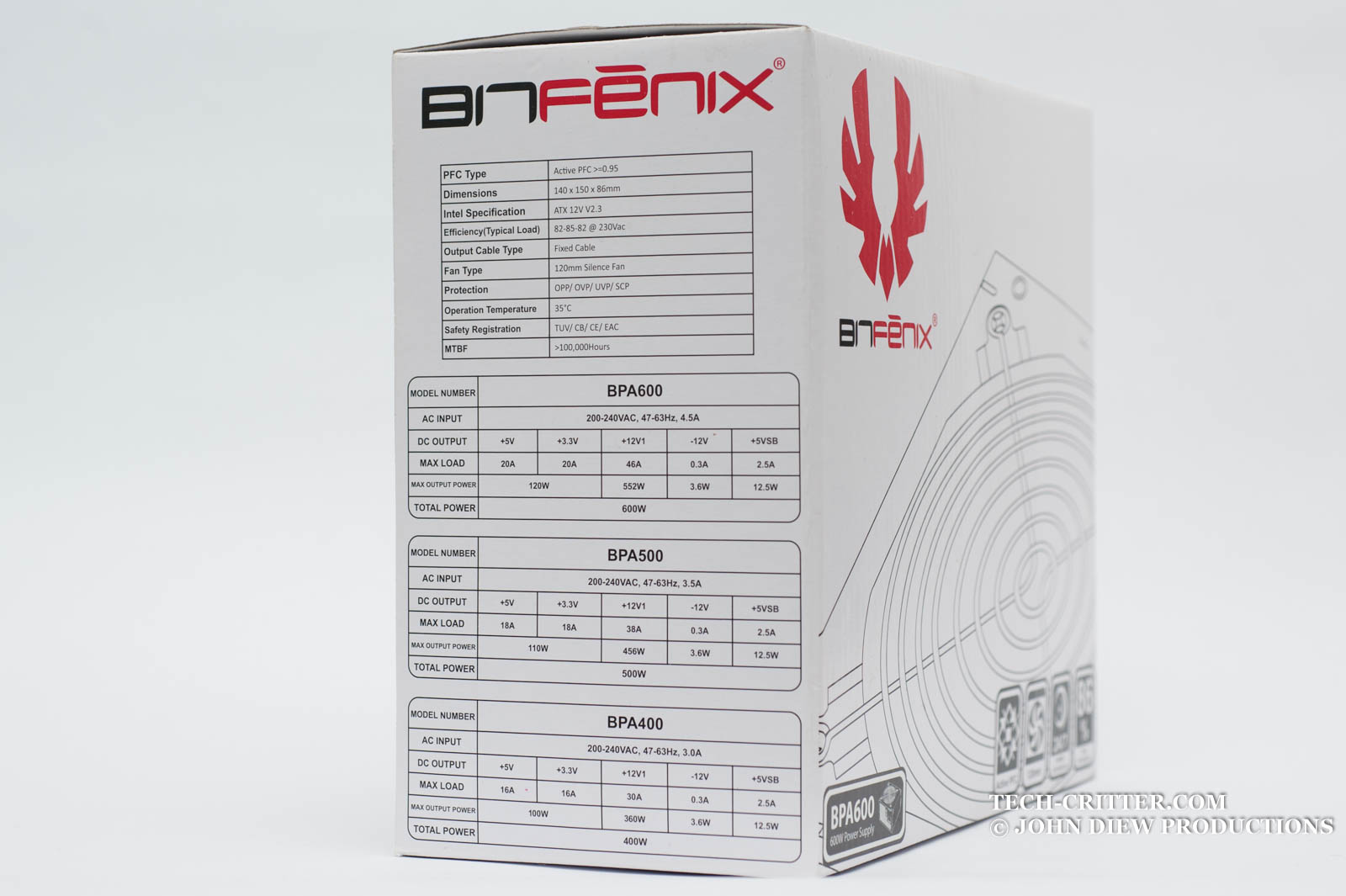

Specifications of the power supply can be found on the box as well.
Unboxing & Preview: Bitfenix BPA600 Power Supply 9
As opposed to the standard design where usually power supply boxes would come with a plastic handle at the top.

Unboxing & Preview: Bitfenix BPA600 Power Supply 11Unboxing & Preview: Bitfenix BPA600 Power Supply 13

In the box:
  • Bitfenix BPA600 power supply
  • 3pin power cable
  • Screws
  • Product guides

Design & Hardware

Unboxing & Preview: Bitfenix BPA600 Power Supply 15
As usual, we have the power draw table on the PSU unit itself and we can actually see that the Bitfenix BPA600 is capable of delivering a maximum load of 552W on the +12V rail, with its rated maxmium load of 40A.
Unboxing & Preview: Bitfenix BPA600 Power Supply 17
The Bitfenix BPA600 is equipped with a 120mm silent fan as intake as well as to exhausts the heat inside the power supply.
Unboxing & Preview: Bitfenix BPA600 Power Supply 19
The Bitfenix BPA600 utilizes the mainstream honey comb exhaust grill design that has been proven to provide the best airflow for the internal parts and components of the power supply.
Unboxing & Preview: Bitfenix BPA600 Power Supply 21
The BPA600 has non-modular cable design and the 24pin ATX connector are the only portion of the cable that comes sleeved.
Unboxing & Preview: Bitfenix BPA600 Power Supply 23
The connectors available are pretty standard, 24pin ATX for motherboard, 6+2pin PCIe power connector for graphics card, SATA connectors for the storage devices, and 4pin molex for other stuffs like LEDs, water pump, fan controller, etc.

Testing Methodology

As Tech Critter do not own any industrial grade load tester to perform intensive tests on the power supplies on hand, we will be performing tests from the end user’s angle.
We’ve mounted the Bitfenix BPA600 on our daily driver machine which comes with an Intel Core i5 3470 and Sapphire Radeon 7970. Then, we went through numerous tests which involve stress test and graphics card overclocking – glad to report that throughout the process, no issue is encountered.

Final Thoughts

Retails at around RM200, this power supply performs way better than your regular cap ayam power supply and what not, it fits the bill of most budget conscious buyers.
Pros:
  • Silent fan
  • Solid performance
  • Affordable price
Cons:
  • Non-modular
  • Non-sleeved cable
