Started off with the MasterCase 5 and its ‘Make It Yours’ initiative, Cooler Master has made quite a progress after they announced its maker concept and maker ecosystem 2 years ago during Computex 2015. While things are looking good for the MasterCase, some find its form factor inconvenient, especially for users who is fond with a smaller sized chassis.

Cooler Master expanded its product line this year, during Computex 2016, with the MasterBox series as one of the highlight throughout the exhibition and we’re reviewing one of them in the lineup today, white with DarkMirror front panel, the MasterBox 5 Dual Tone.

(The MasterBox 5  comes in 3 variant, windowed and non-windowed black with meshed front panel and windowed white with DarkMirror front panel, a retailed at RM399)

Specifications

Model NumberMCX-B5S2-WWNN-01
Available ColorWhite
MaterialsSteel body, Plastic front cover
Dimensions (LxWxH)All500 x 220 x 475mm
Motherboard SupportATX, Micro-ATX, Mini-ITX
Expansion Slots7
Drive Bays5.25″Cages are sold separately
Combo 3.5″/ 2.5″2
SSD1
I/O PortUSB 3.0 x 2
Audio in / out
Pre-installed Fan(s)Front120mm x 1
Rear120mm x 1
Fan SupportFront120mm / 140mm x 2
Rear120mm x 1
Liquid Cooling SupportFront240mm / 280mm radiator, up to 50mm thickness without fan
Rear120mm
ClearancesCPU Cooler167mm / 6.5″
PSU180mm / 7.1″
GPU410mm / 16.1″
Cable RoutingBehind Motherboard Tray25mm – 35mm
Dust FiltersFront, bottom
Power Supply SupportBottom mount, ATX

Unboxing

Cooler Master MasterBox 5 Dual Tone Review 1

Cooler Master MasterBox 5 Dual Tone Review 3

The MasterBox 5 ships in an environmentally friendly cardboard box and with its features highlighted at the back of the box.

Cooler Master MasterBox 5 Dual Tone Review 5

The accessories included aren’t exactly fancy – a pack containing zip ties, necessary screws, stand-offs, but it’s definitely sufficient to get the job done.

Cooler Master MasterBox 5 Dual Tone Review 7

The protection were pretty standard, flanked in between 2 pieces of polystyrene foam as protection against shock during transportation and plastic cover to prevent minor scratches.

Cooler Master MasterBox 5 Dual Tone Review 9

Cooler Master MasterBox 5 Dual Tone Review 11

Though it comes in smaller size, the MasterBox 5 does share quite a few similarities with the MasterCase 5 in terms of design.

Cooler Master MasterBox 5 Dual Tone Review 13

The front I/O has everything well labelled, 2 x USB 3.0 ports, power and reset button, audio jacks.

Cooler Master MasterBox 5 Dual Tone Review 15

The front panel is equipped with a DarkMirror panel for the aesthetics with LED fans, and under that panel you’ll find a 120mm fan for intake, as well as the support for up to 360mm radiator with an optional bracket that can be purchased from the CM Store.

Cooler Master MasterBox 5 Dual Tone Review 17

The MasterBox 5 has a windowed side panel with a large window to satisfy your need for hardware showcase.

Cooler Master MasterBox 5 Dual Tone Review 19

Everything looks pretty standard at the back of the chassis, but we can see that the MasterBox 5 did come with an extra feature for vertically mounted graphics card for hardware showcase – you’ll have to get your own PCIe riser though.

Cooler Master MasterBox 5 Dual Tone Review 21

At the bottom of the chassis, you’ll have the elevated design which supports better airflow for the bottom mounted power supply. And like most of the chassis nowadays, the MasterBox 5 has a dust filter included at the power supply area to minimize the dust intake to your power supply.

Cooler Master MasterBox 5 Dual Tone Review 23

Cooler Master MasterBox 5 Dual Tone Review 25

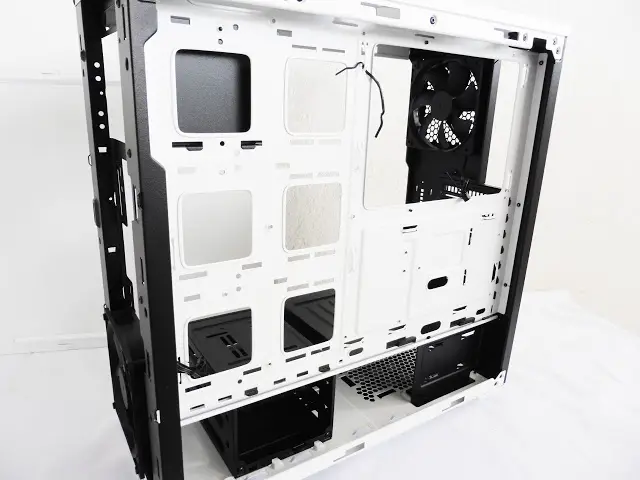

The interior of the MasterBox 5, with and without the power supply cover and hard drive cage. It’s surprisingly spacious for a PC chassis of its size and it’s capable of supporting CPU cooler up to 167mm height, graphics card of up to 307mm length, motherboard with form factor of ITX to not only ATX as what’s stated in the specs, but E-ATX as well.

Cooler Master MasterBox 5 Dual Tone Review 27

Cooler Master MasterBox 5 Dual Tone Review 29

The MasterBox 5 too comes with a power supply cover for the aesthetics, a design that has become a new trend and can be seen on the products of big players in the PC chassis market.

Cooler Master MasterBox 5 Dual Tone Review 31

Cooler Master MasterBox 5 Dual Tone Review 33

The removable hard drive cage support up to 2 HDD and the SSD bracket can be mounted on top of the cage, which ever that suits you, just make it your way.

Cooler Master MasterBox 5 Dual Tone Review 35

The MasterBox 5 supports 240mm/280mm radiator by default, and up to 360mm radiator with an optional bracket that can be purchased from CM Store for water cooling setup and if you need a thicker radiator, or just wanted to have a push and pull setup, all you have to do is to remove the hard drive cage for that extra space required.

Cooler Master MasterBox 5 Dual Tone Review 37

The 2.5″ drive mount supports up to 3 drives, though you will need to purchase that extra 2.5″ drive bracket as the MasterBox 5 only comes with one.

Cooler Master MasterBox 5 Dual Tone Review 39

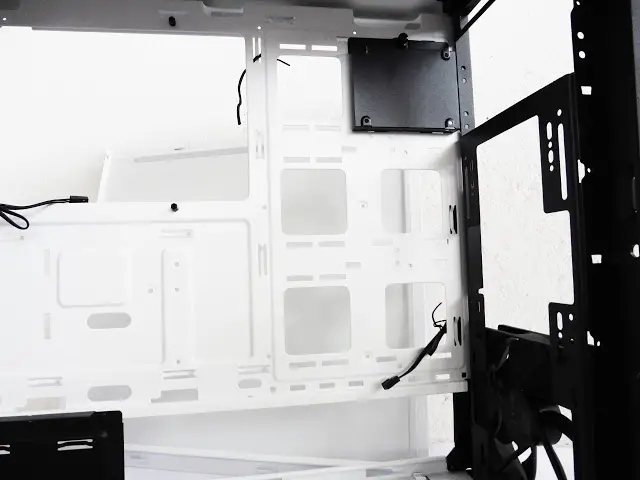

Behind the motherboard tray, you’ll find more of what the MasterBox 5 can offer. Cutout for 2.5″ drive mount, cutout for cable routing and of course, a plenty amount of space to get all the magic done with this small chassis.

Performance Test

Test Rig Configuration



CPU Cooler



be quiet! Dark Rock Pro 3
CPU



I7 4790K @4.6GH
Graphics Card



EVGA GeForce GTX 770 SC
Motherboard



ASUS ROG Maximus VII Hero
Memory



Kingston Savage DDR3 16GB kit
Primary Hard Drive



Crucial M500 120GB
Power Supply



be quiet! Straight Power 10 600W PSU
Chassis



Cooler Master MasterBox 5
Display Monitor



Dell U2312HM

Moving on to the performance test, we ran a few stress test with the setup that we’ve prepared as above. These involves the CPU stress test utility Prime95 with the option ‘In-place large FFTs’ while GPU stress test utility FurMark with its Furry Donut stress test for maximum heat output from both the CPU and GPU.

Cooler Master MasterBox 5 Dual Tone Review 41

Verdict

While it doesn’t offer modularity and expandability as much as a MasterCase 5, the MasterBox 5 is one very capable chassis of its size, a small sized but spacious mid-tower that offers quite a reasonable support for high-end motherboards and graphics card, CPU coolers and water cooling kit – all that’s enough for you to build a very capable gaming rig. On top of that, the large window on the side panel provide excellent hardware showcase, something you can proudly brag to your friends and family.

In short, if you need a good enthusiasts grade chassis for all the high-end components, cooling solution, yet not a big fan of a colossal chassis, the MasterBox 5 is one good alternative for all those needs, at a considerable price tag of RM399.

Pros

  • Simple and sleek design
  • Good features and build quality
  • Good hardware compatibility
  • Comes with power supply cover
  • Decent cable management design
  • Reasonable support for water cooling setup

Cons

  • Comes with only one 2.5″ HDD/SSD mounting bracket
  • The included fan isn’t moving a lot of air
  • Odd position of the PSU cover cutout for cable routing
