May 27, 2016

DEEPCOOL Unveils The New DUKASE V2 ATX Chassis

DEEPCOOL is a company that built with vision of providing best PC DIY solution for worldwide customers by constantly seeking for innovative breakthroughs. Based on successful achievements in the past powerful chassis series, DEEPCOOL launches a new optimized cool-looking ATX version chassis named DUKASE V2.

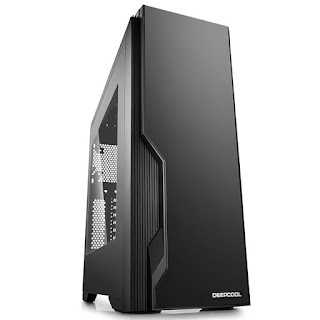

DUKASE WH V2 DUKASE V2
DUKASE V2 – the new mainstream ATX chassis features special suspension style design of top panel, which is easy for cleaning and excellent for cooling, the fan speed controller on the top can adjust 3 fans at the same time and the high-quality electrostatic powder coating offers a superior touch sensation.



Meanwhile, the ODD free metal front panel not only unifies the whole appearance to create a simple, characteristic aesthetic but ensures superior ventilation.

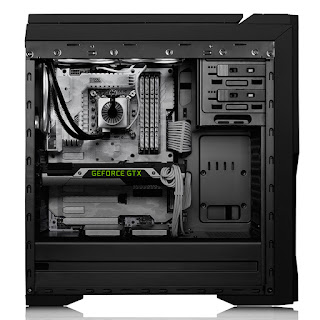

In addition, the optimized side window reveals the interior and ensures a perfect visible effect, at the same time, the considerable space and logical holes design offer an extreme cable management.



Especially, the exquisite structure & optimized design make the ATX chassis an excellent choice for PC enthusiasts who are seeking for a PC chassis providing both high performance and aesthetics: independent mounting positions for 2.5’’SSD, preset one 2.5’’ spare mounting holes, special designed LED strip mounting slots for lighting up your RIG and bigger cutout for easier CPU cooler installation, etc.

Materials
SPCC+PLASTIC (ABS)(Panel thickness: 0.7mm)
Product Dimension
L482.7×W202×H504mm
Weight
Net.:  7.03kg  Gross: 8.27kg
5.25" Drive Bays
2
3.5" Drive Bays
1  External (for floppy drive or 3.5" card-reader)
3.5"/2.5"Drive Bays
2
2.5" Drive Bays
3
I/O Panel
1×USB3.0/1×USB2.0/Audio(HD)×1/Mic×1
Expansion Slots
 7  (slot covers fixed by screws for easy removing and reuse)
Cooling Fans
Pre-installed: Rear: 1×120mm fan;  Optional:
Front: 2×120mm or 1×140mm
Top: 2×120/140mm
Power Supply Type
ATX PS2(Length less than 170mm)
CPU Cooler Compatibility
160mm height
Liquid Cooler: 120/240/140/280mm at top, 120mm at rear
VGA Compatibility
390mm
Motherboards
ATX/MICRO ATX/MINI-ITX

Availability & Price
The DUKASE V2 will be available globally starting from June 2016 with the MSRP as following:
  • DUKASE V2: 69.99 USD
  • DUKASE WHV2: 74.99 USD
